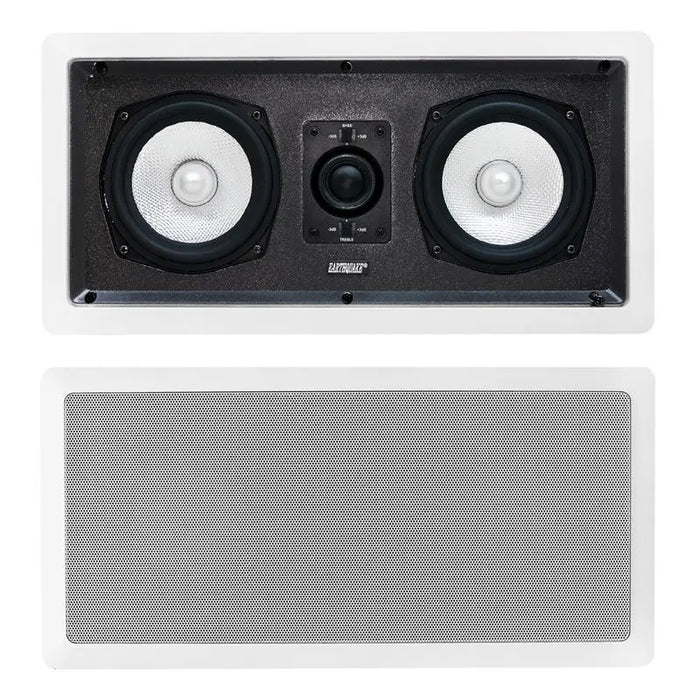

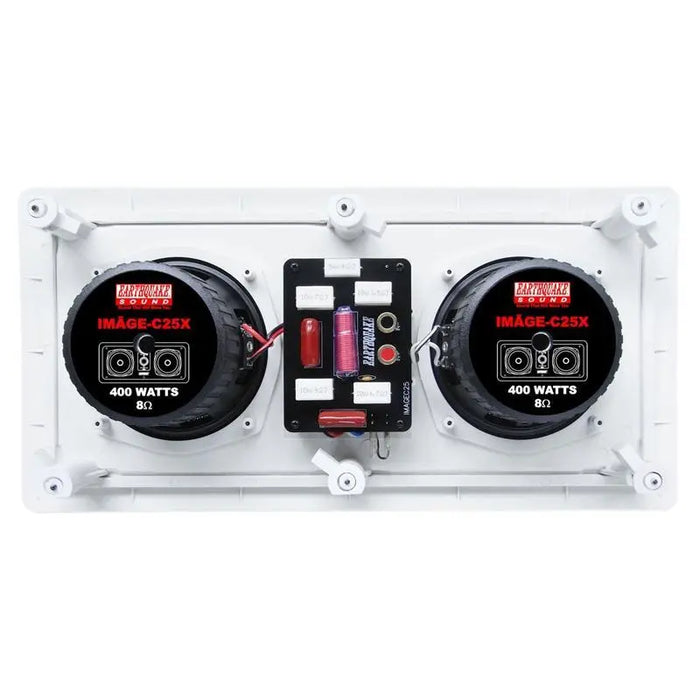

Earthquake Sound Image-C25X Dual 5.25" Center Channel In-Wall Speaker

Out of Stock
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)

California customers:
Please click here for your Proposition 65 warning.

Fiber impregnated Kevlar type weave woofer, with 1.5" high temperature voice coil
Swiveling 1" silk dome, neodymium tweeters
Switched +/-3dB tweeter level adjustment
Switched +/-3dB woofer level adjustment
Corrective ON-AXIS tweeter positioning for better staging and imaging
Turn-N-Lock installation for safe, efficient and professional installs
Poly injection composite drivers for smooth wide range response with no distortion
Long life, moisture resistant materials for safe use in kitchens, bathrooms and atriums
Style easily integrates with Earthquake IQ and Image in-ceiling speakers and Thor in-wall subwoofers
High sensitivity and power handling
Easy install spring loaded terminals
Painted rust-proof aluminum grilles for superior protection and job flexibility
Easy adjust bass/treble trim
Sold per piece
Authorized Dealer

Intended Use
Bandwidth: Full Range
Homea Theater/5.1 & 2-Channel/Music Systems
New Construction & Retrofit Applications
Plasma Install Flush In-Wall Home Theater
Can be used in both Yachts and RV's

Image-C25X Manual.pdf

RMS Power Handling: 200 Watts
Frequency Response: 50Hz - 21kHz
Sensitivity: 93dB @ 1W/1M
Nominal Impedance: 8-Ohm
Enclosure: Infinite baffle, flush with wall
Rec. Wire Gauge: 12
Tweeter: 1" silk dome, high definition, swivel Neodymium tweeter
Woofer: Two 5.25" long excursion woofers
Elaborate filter networks (High pass): 18dB/Oct. @ 1kHz
Elaborate filter networks (Low pass): 18dB/Oct. @ 1kHz

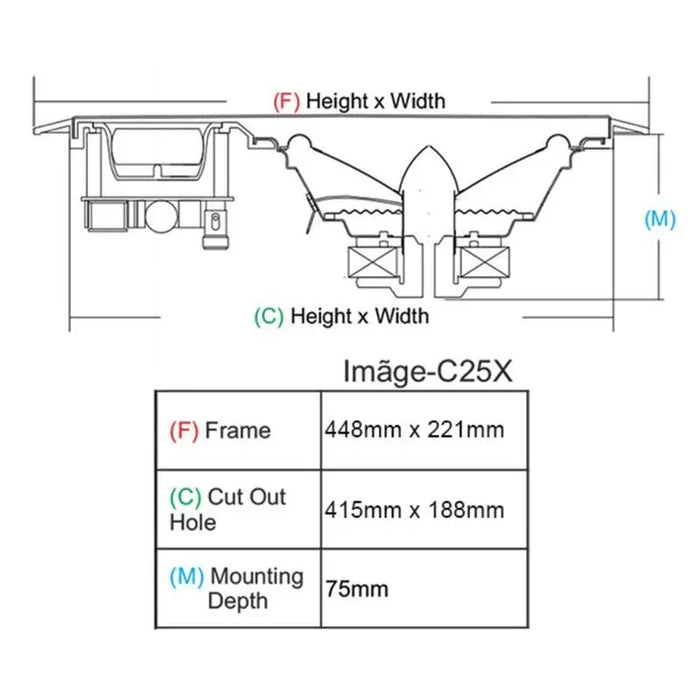

Grille Frame: 448mm x 221mm
Cut Out Hole: 415mm x 188mm
Mounting Depth: 75mm
Finish: White/Paintable
Weight: 7.75lbs
