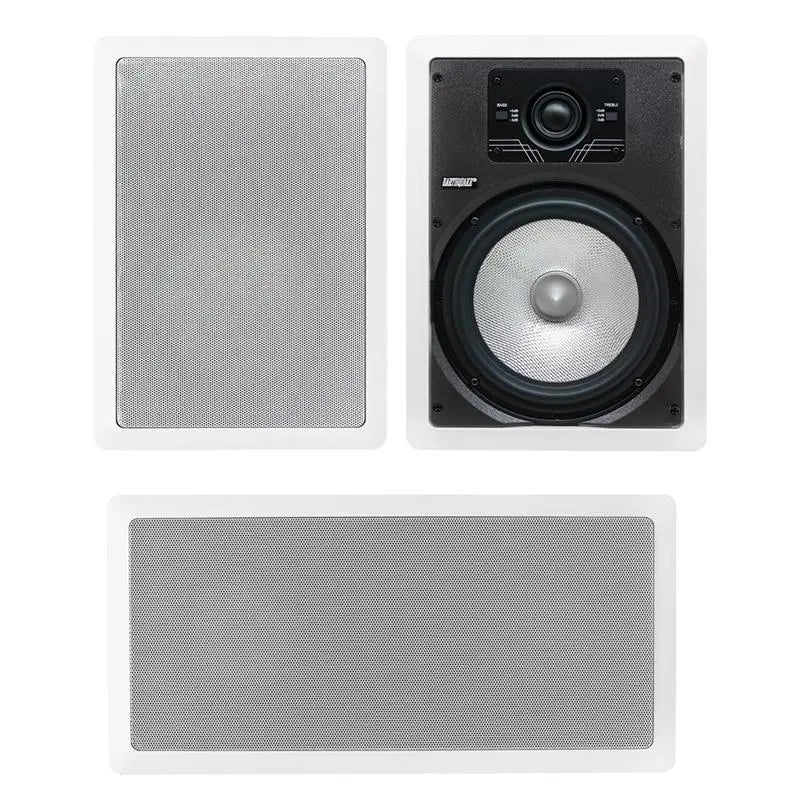

Earthquake Sound Image Center Channel + Pair 2-Way 8" In-Wall Speaker

Earthquake Sound Image Center Channel + Pair 2-Way 8" In-Wall Speaker Earthquake Sound

Sorry, this product has been discontinued.

Earthquake Sound Image Center Channel + Pair 2-Way 8" In-Wall Speaker

Fiber impregnated Kevlar type weave woofer, with 1.5" high temperature voice coil
Swiveling 1" silk dome, neodymium tweeters
Switched +/-3dB tweeter level adjustment
Switched +/-3dB woofer level adjustment
Corrective ON-AXIS tweeter positioning for better staging and imaging

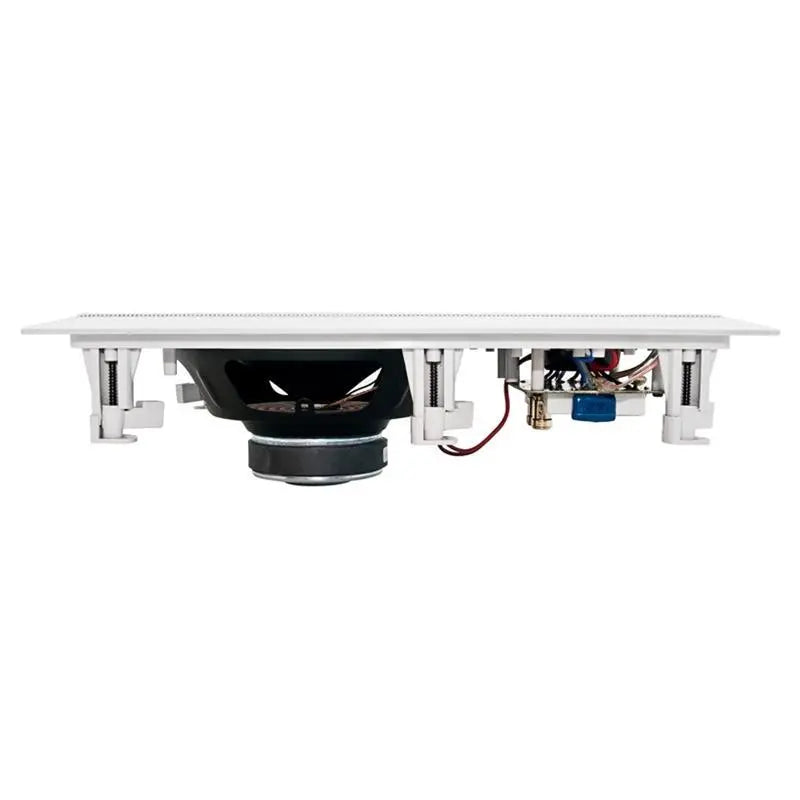

Turn-N-Lock installation for safe, efficient and professional installs
Poly injection composite drivers for smooth wide range response with no distortion
Long life, moisture resistant materials for safe use in kitchens, bathrooms and atriums
Style easily integrates with Earthquake IQ and Image in-ceiling speakers and Thor in-wall subwoofers
High sensitivity and power handling
Easy install spring loaded terminals
Painted rust-proof aluminum grilles for superior protection and job flexibility
Easy adjust bass/treble trim
Sold per pair
Authorized Dealer

Intended Use
Bandwidth: Full Range
Homea Theater/5.1 & 2-Channel/Music Systems
New Construction & Retrofit Applications
Plasma Install Flush In-Wall Home Theater
Can be used in both Yachts and RV's


IMAGE-C25X
Fiber impregnated Kevlar type weave woofer, with 1.5" high temperature voice coil
Swiveling 1" silk dome, neodymium tweeters
Switched +/-3dB tweeter level adjustment
Switched +/-3dB woofer level adjustment
Corrective ON-AXIS tweeter positioning for better staging and imaging
Turn-N-Lock installation for safe, efficient and professional installs
Poly injection composite drivers for smooth wide range response with no distortion
Long life, moisture resistant materials for safe use in kitchens, bathrooms and atriums
Style easily integrates with Earthquake IQ and Image in-ceiling speakers and Thor in-wall subwoofers
High sensitivity and power handling
Easy install spring loaded terminals
Painted rust-proof aluminum grilles for superior protection and job flexibility
Easy adjust bass/treble trim
Sold per piece
Authorized Dealer

Intended Use
Bandwidth: Full Range
Homea Theater/5.1 & 2-Channel/Music Systems
New Construction & Retrofit Applications
Plasma Install Flush In-Wall Home Theater
Can be used in both Yachts and RV's

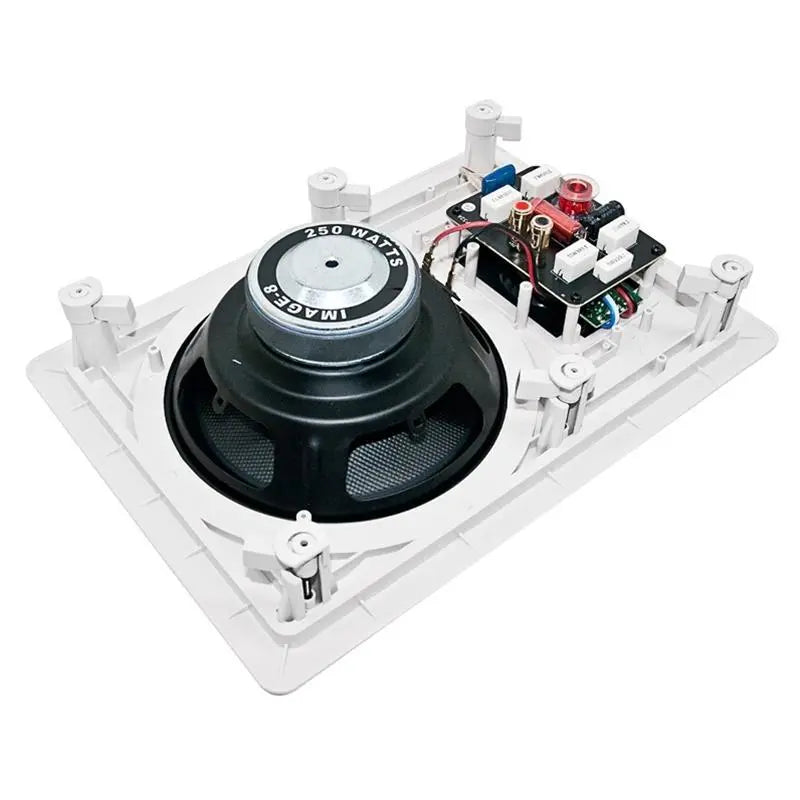

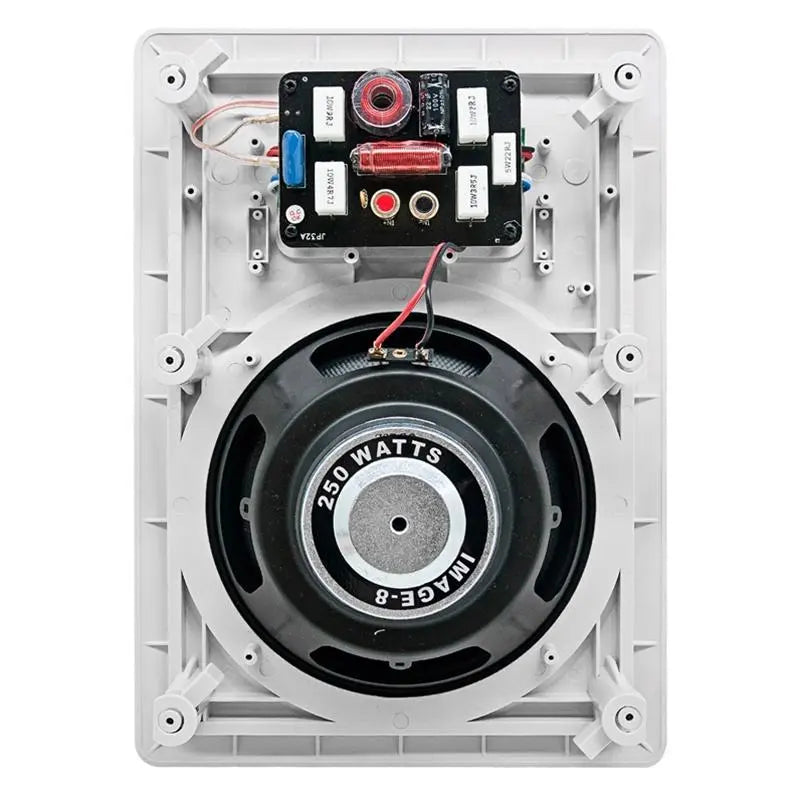

IMAGE-8

  • RMS Power Handling: 250 Watts
  • Frequency Response: 52Hz - 21kHz
  • Sensitivity: 90dB @ 1W/1M
  • Nominal Impedance: 8-Ohm
  • Enclosure: Infinite baffle, flush with wall
  • Rec. Wire Gauge: 12
  • Tweeter: 1" silk dome, high definition, swivel Neodymium tweeter
  • Woofer: 8" long excursion woofers
  • Elaborate filter networks (High pass): 18dB/Oct. @ 1kHz
  • Elaborate filter networks (Low pass): 18dB/Oct. @ 1kHz
  • Grille Frame: 362mm x 256mm
  • Cut Out Hole: 326mm x 230mm
  • Mounting Depth: 93mm
  • Finish: White/Paintable
  • Weight: 12.40lbs

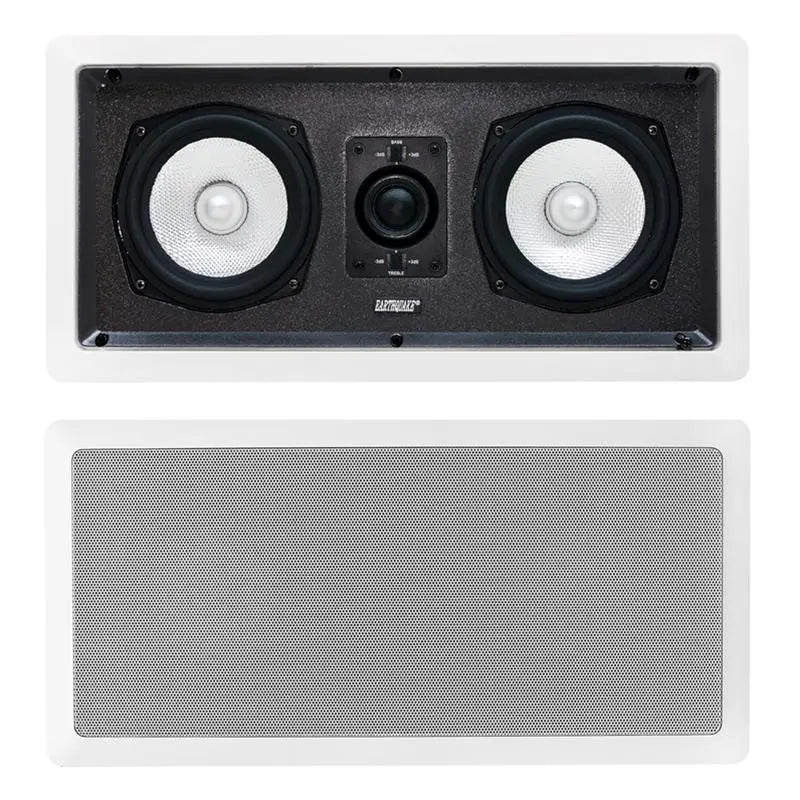

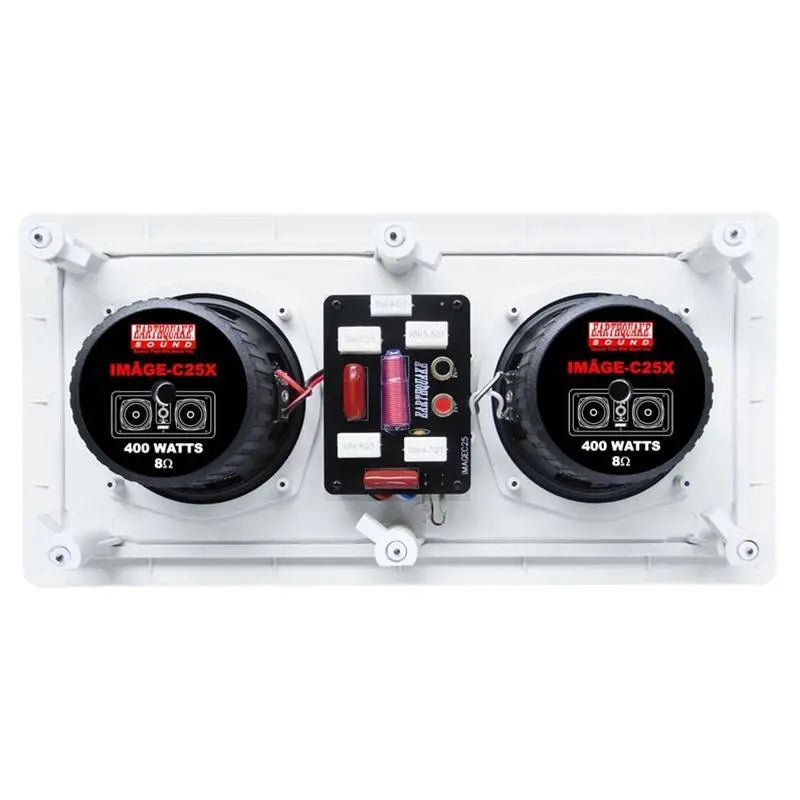

IMAGE-C25X

  • RMS Power Handling: 200 Watts
  • Frequency Response: 50Hz - 21kHz
  • Sensitivity: 93dB @ 1W/1M
  • Nominal Impedance: 8-Ohm
  • Enclosure: Infinite baffle, flush with wall
  • Rec. Wire Gauge: 12
  • Tweeter: 1" silk dome, high definition, swivel Neodymium tweeter
  • Woofer: Two 5.25" long excursion woofers
  • Elaborate filter networks (High pass): 18dB/Oct. @ 1kHz
  • Elaborate filter networks (Low pass): 18dB/Oct. @ 1kHz

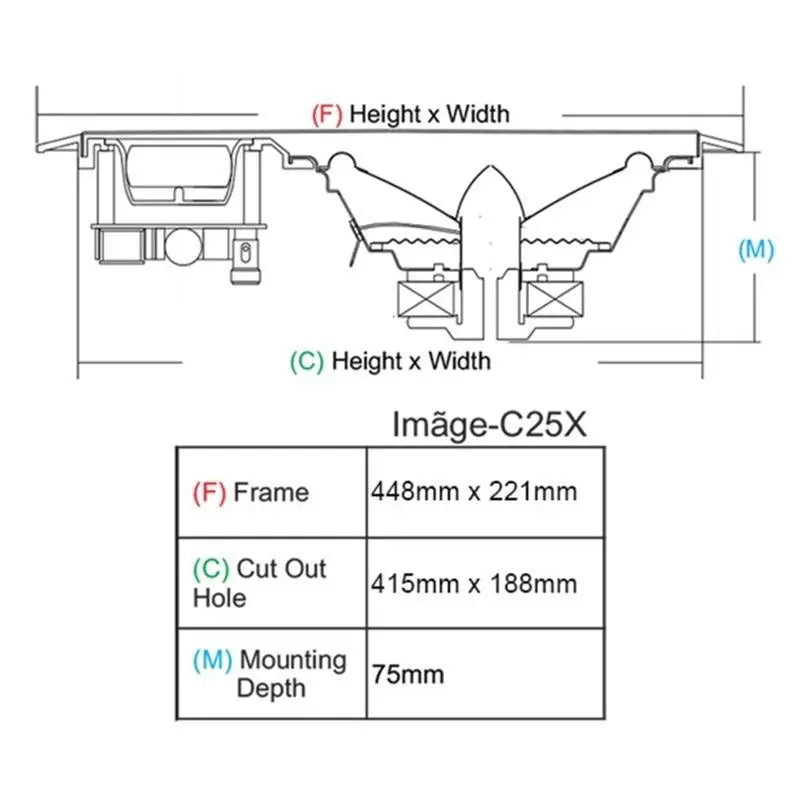

  • Grille Frame: 448mm x 221mm
  • Cut Out Hole: 415mm x 188mm
  • Mounting Depth: 75mm
  • Finish: White/Paintable
  • Weight: 7.75lbs
