Earthquake Sound MXA-100BT 70/100/8 ohm Volt 100W 1-Channel Class D Mixer Audio Amplifier

Earthquake Sound MXA-100BT 70/100/8 ohm Volt 100W 1-Channel Class D Mixer Audio Amplifier
Availability:
in stock, ready to be shipped
$164.95 - $164.95
$164.95
$164.95 - $164.95
$164.95

Earthquake Sound MXA-100BT 200W Max 1-Channel Class D Mixer Audio Amplifier

The Earthquake MXA-100BT Mixer Amplifier with Bluetooth® delivers 60W RMS of power, ideal for various settings like schools, supermarkets, banks, and hotels for background music and public address. This all-in-one device combines a media player, preamp, and mixer power amplifier in a single unit. It consolidates audio sources with MIC1 and MIC/LINE inputs, a Tel input, and line output. The MIC1 VOX feature enhances functionality, while an FM tuner, USB, and SD card slot on the front panel ensure easy accessibility. 4–8 Ohm / 70V /100V / speaker outputs allow for multiple connections, and protection mechanisms ensure safety. The MXA-100BT, featuring echo effects, is well-suited for diverse applications and supports both AC 230V and 12-24V DC power supply systems, making it adaptable for mobile sound systems in vehicles or vessels.

  • Mixer amplifier for commercial audio distribution
  • Compact size suitable for background music and public address systems
  • Built-in media player with Bluetooth v5.3, USB/SD Mp3 player, FM radio tuner
  • 4–8 Ohm, 70V, and 100V speaker output options
  • Included IR remote for front panel media player
  • Power, clip, protection, and signal LED indicators
  • Front panel 1/4 in. (6.3mm) microphone jack input

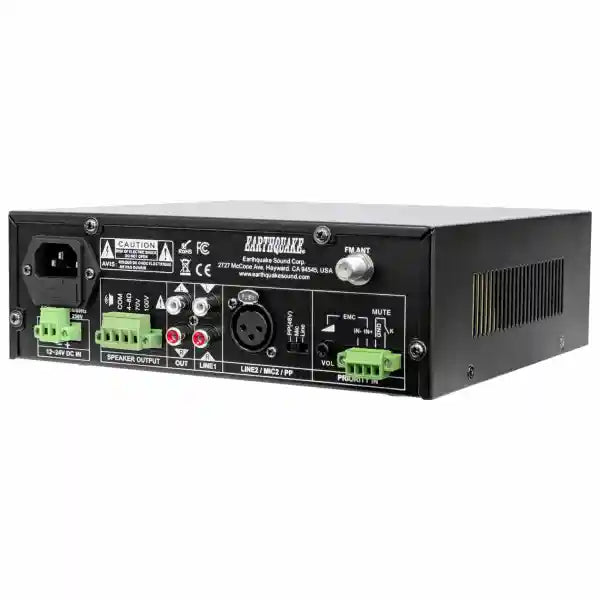

  • Switchable MIC2/LINE2 balanced XLR input with +48V phantom power
  • RCA LINE1 input and RCA LINE output
  • MUTE and EMC priority inputs for AUX signal

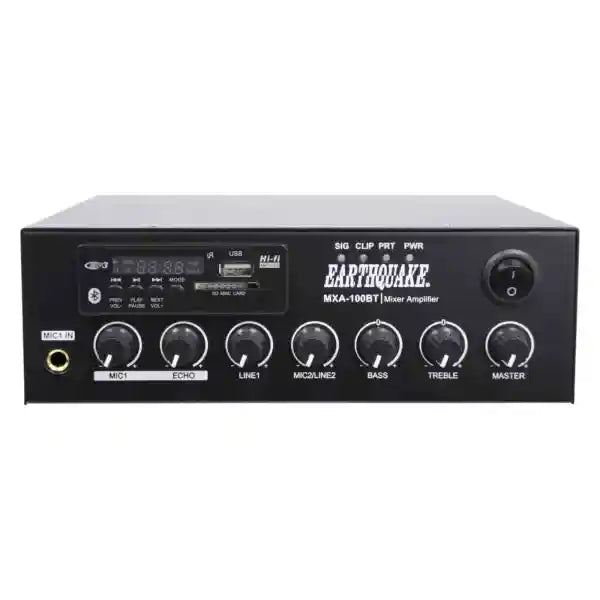

  • Front MIC, ECHO, LINE, and MASTER volume controls
  • Front BASS and TREBLE tonal controls
  • Short, clip, overload, and thermal protection circuitry
  • 110–230V AC and 12–24V DC power supply support
  • Suitable for mobile vehicle or vessel audio applications

Specifications:

  • Weight  -  8 lbs
  • Dimensions  -  6 × 12 × 12 in
  • Number of Channels  -  1
  • Bridgeable  -  No
  • Amplifier Class  -  Class D
  • Rated Power Output Per Channel  -  200W MAX, 60W RMS
  • Frequency Response  -  60Hz–15kHz (±3dB)
  • Signal-to-Noise Ratio  -  Line ≥ 85dB, Mic ≥ 72dB
  • Total Harmonic Distortion  -  < 0.5%
  • Input Connections  -  1/4 Inch TRS, Bluetooth, Priority, RCA, XLR
  • Output Connections  -  High Level Speaker, Low Level RCA
  • Rack Mountable  -  No
  • Remote  -  Yes
  • App Control  -  N/A
  • LED Indicators  -  Clip, Power, Protection, Signal
  • Power Requirements   - 110~230V AC 50/60Hz, 12~24V DC
  • Chassis Material  -  Steel
  • Faceplate Material  -  Steel
  • Overall Dimensions  -  2.95 in. x 8.66 in. x 9.44 in. (75mm × 220mm × 240mm)
  • Unit Weight  -  5.73 lb (2.6 kg)

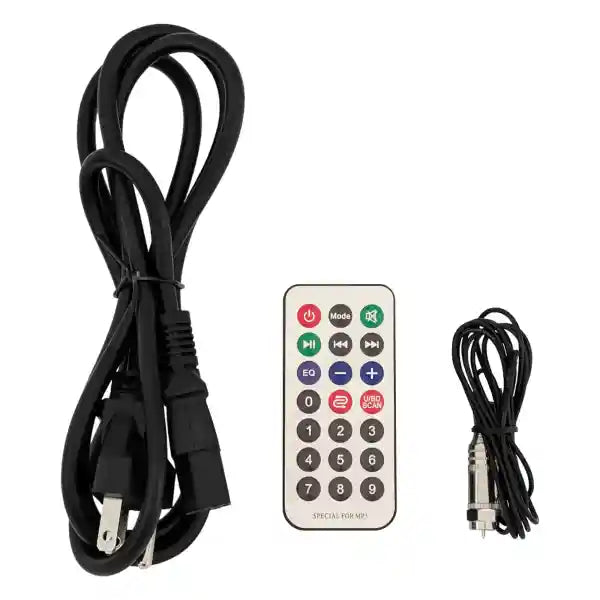

What's in the box:

  • (1) MXA-100BT amplifier
  • (1) 5 ft. external FM antenna
  • (1) IR remote
  • (1) Power cable (NEMA 5-15P to C13)

Docs/Instruction Links:
