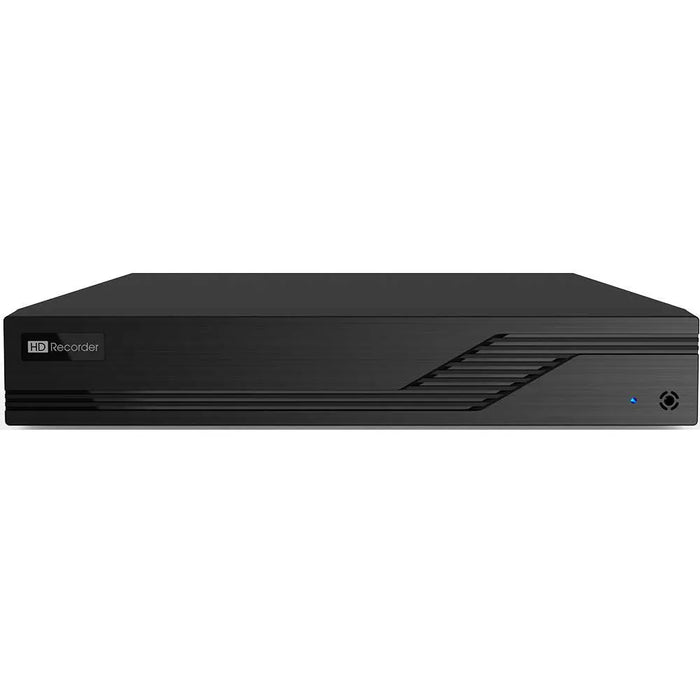

ED8008H5-BN2 Titanium 8 Channel 5MP Lite Hybrid DVR with 1 x SATA & NDAA Compliant with 2TB HDD

Specifications

• 8-channel hybrid DVR supporting both analog (TVI/AHD/CVI up to 5MP) and IP cameras (up to 12 channels total in hybrid mode)
• Supports full HD 1080P recording with real-time performance on all channels
• Uses H.265 / H.265+ / H.264 compression for high-quality video with lower bandwidth and storage usage
• Video outputs include HDMI, VGA (up to 1920×1080), and BNC (CVBS spot/main output)
• Supports simultaneous 8-channel playback with advanced controls (play, pause, FF/FB, zoom)
• Recording modes include manual, scheduled, motion detection, sensor-triggered, and AI-based events
• Flexible search options: time, event, tag, and time-slice with color-coded smart playback
• Pentaplex functionality enables preview, recording, playback, backup, and remote access at the same time
• Supports PTZ control via RS-485 with up to 255 presets and 8 cruise paths
• Network connectivity via RJ-45 (100 Mbps) with support for major protocols (TCP/IP, DHCP, DDNS, HTTP/HTTPS, FTP, RTSP, SMTP, etc.)
• Remote access through web browser, CMS software, and mobile apps (iOS & Android), with up to 5 simultaneous users
• Supports NAT and QR code setup for easy remote viewing
• Storage includes 1 SATA HDD slot supporting up to 10 TB, with backup via USB or network
• Includes 2 USB 2.0 ports and supports USB mouse operation with GUI interface
• Audio support: 1 RCA input with G.711 compression
• Max bandwidth: ~32 Mbps incoming (up to 60 Mbps), 60 Mbps outgoing
• Frame rates depend on resolution (up to 30 fps; lower for higher resolutions like 5MP Lite)
• Multi-screen display layouts supported for monitoring multiple cameras
• Built-in embedded Linux operating system for stable performance
• Power: DC 12V / 2A, low consumption (≤ 8W without HDD)
• Operating conditions: -10°C to 50°C, 10–90% humidity
• Compact design (~255 × 222 × 42 mm)
• AI features include smart motion detection and basic perimeter protection
• Includes user management, log review, device monitoring, and email alerts
• Certified (CE, FCC) and compliant with environmental standards (RoHS, WEEE, REACH)

Docs/Instruction Links

• Specification Sheet
• User Manual
• Quick Start Guide
• Mobile Manual
