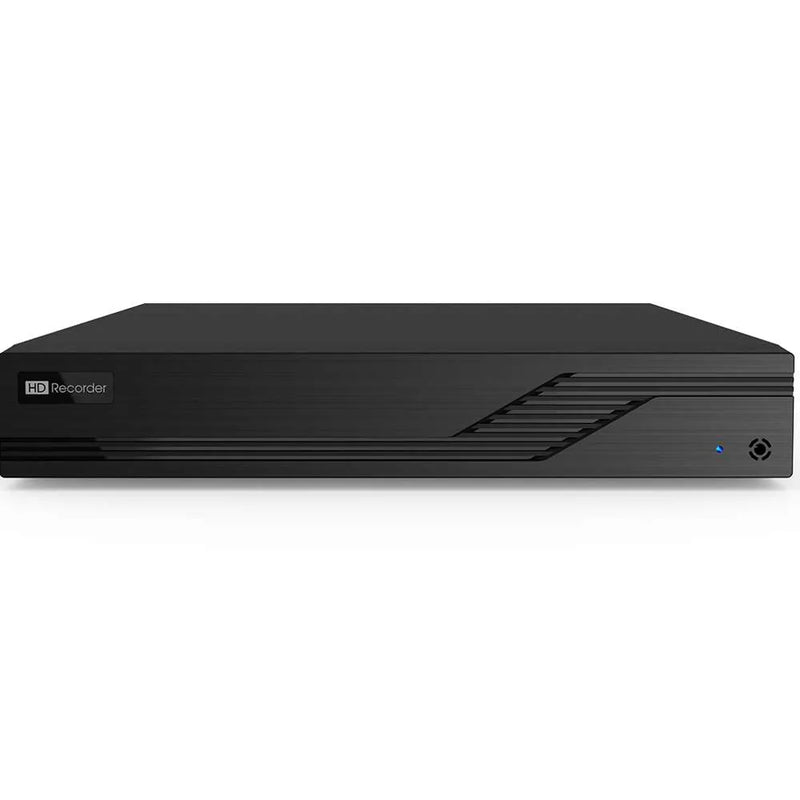

ED8016H5-BN2 Titanium 16CH 5MP Lite Hybrid 4 in 1 DVR with 1 x SATA & NDAA Compliant with 4TB HDD

ED8016H5-BN2 Titanium 16CH 5MP Lite Hybrid 4 in 1 DVR with 1 x SATA & NDAA Compliant with 4TB HDD

The ED8016H5-BN2 is a powerful 16-channel hybrid DVR that supports up to 24 channels, including 16 analog and 8 IP cameras. Designed for superior video recording and playback, it features H.265 compression for efficient storage and supports up to 5MP resolution. This DVR is perfect for various environments, offering flexibility, reliability, and advanced features like smart search and mobile app integration for seamless surveillance.

• Supports 16 CH TVI / AHD /CVI 5MP / 4MP / 1080P / 720P / WD1 video input
• Supports 8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
• 8CH analog video input can be switched to 8CH IP video input
• Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
• Multi-mode recording: manual / timed / motion / AI recording
• Playback: 16 CH simultaneously playback
• Search: time slice, time, event, tag search
• Express and flexible backup via USB, network, and so on
• Pentaplex: preview, record, playback, backup, and remote access
• DHCP, DDNS, PPPoE network protocol
• Remote control via Web or CMS: preview, playback, backup, PTZ, and configuration
• Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with a mobile device
• Authorization management, log review, and device status review
• 1080P output, true high-resolution display
• PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Support NAT function and QRCode scanning by mobile phones
• Powerful mobile surveillance by smartphones with iOS and Andriod OS

Specifications

• 16-channel hybrid DVR supporting analog and IP cameras simultaneously
• Supports TVI, AHD, and CVI camera formats
• Analog video input support: 5MP, 4MP, 1080P, 720P, and WD1
• Supports up to 8 IP cameras at 5MP, 4MP, 3MP, 1080P, 960P, and 720P
• 8 analog channels can be switched to additional IP channels
• H.265 / H.264 video compression for lower bandwidth and storage usage
• Embedded Linux operating system
• Real-time recording up to 5MP resolution
• Recording frame rates:
  • 5MP at 20fps
  • 4MP / 3MP / 1080P / 720P / WD1 at 30fps
• Supports simultaneous 16-channel playback
• Playback controls include play, pause, fast forward, rewind, and digital zoom
• Search options include time, event, tag, and smart search
• Multi-mode recording: manual, scheduled, motion detection, and smart event recording
• Pentaplex operation: live view, recording, playback, backup, and remote access simultaneously

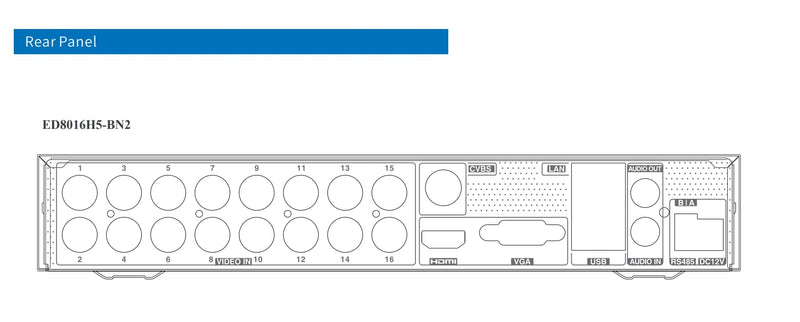

• HDMI and VGA outputs support up to 1920×1080 resolution
• CVBS/BNC video output available
• Multi-screen display modes: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 views
• 1 audio input and 1 audio output via RCA
• Audio compression: G.711(U/A)
• Supports PTZ camera control via RS-485
• PTZ features support up to 255 presets and 8 cruise patterns
• Network interface: RJ45 100Mbps Ethernet port
• Supports TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, and SMTP protocols
• Incoming bandwidth: 32Mbps
• Outgoing bandwidth: 80Mbps
• Supports up to 10 remote users simultaneously
• Remote access via web browser, CMS software, and mobile app
• Mobile app support for iOS and Android devices
• Supports NAT and QR code mobile setup
• Dual-stream technology for local and remote viewing
• USB backup support using flash drives or external USB HDDs
• 2 × USB 2.0 ports on rear panel
• 1 SATA interface supporting up to 10TB hard drive
• Supports authorization management, system logs, and device status monitoring
• Power supply: DC 12V / 3A
• Power consumption: ≤10W without HDD
• Operating temperature: -10°C to 50°C
• Operating humidity: 10%–90%

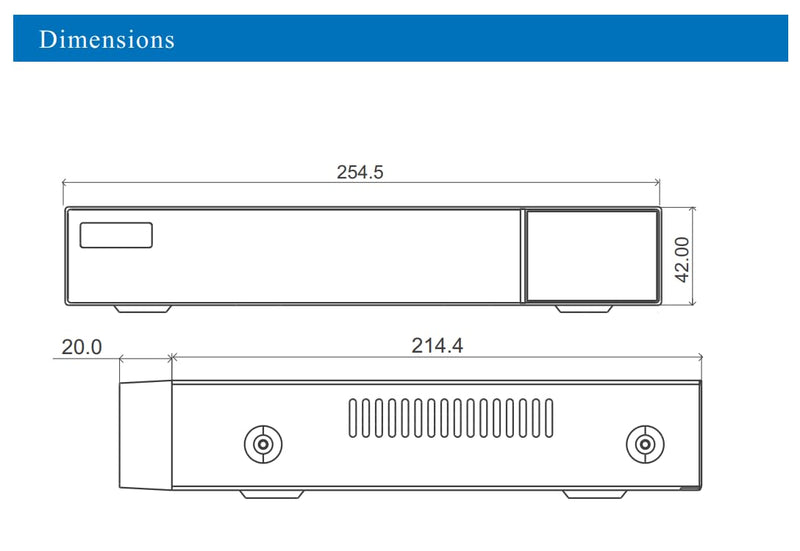

• Dimensions: 255 × 234 × 42 mm
• Certifications: CE and FCC compliant
• Environmental compliance: RoHS, WEEE, and REACH

Docs/Instruction Links

• Specification Sheet
• User Manual
• Quick Start Guide
• Mobile Manual
