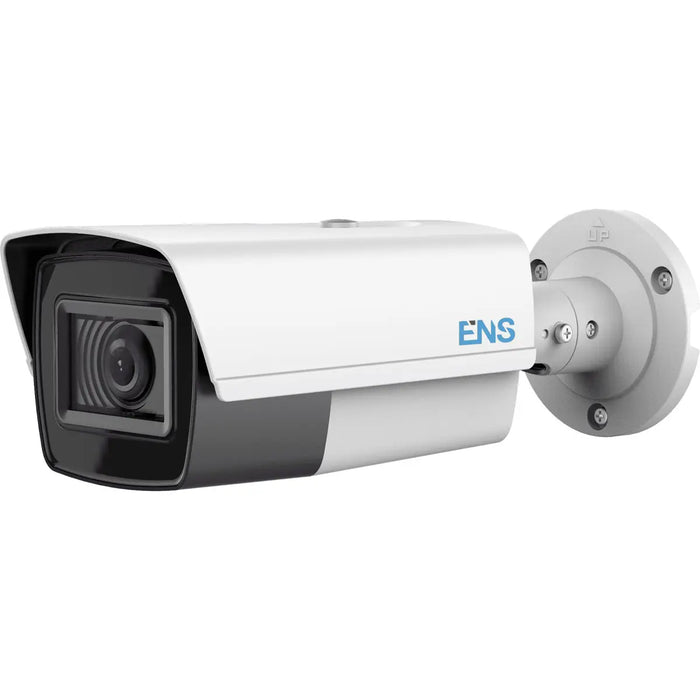

2MP WDR IR Ultra-Low Light IP67 Motorized Analog Bullet Camera
The SCC52B7/MZ-M offers an 2MP WDR IR Ultra Low Light TVI/AHD/CVI/CVBS Analog Bullet Camera with 2.7~13.5 mm Motorized varifocal Lens offers a 2MP high-performance COMS, EXIR 2.0, smart IR, up to 70 m IR distance, OSD menu, 3D DNR, 120 dB true WDR, day/night switch and 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
Features:
- 2MP high-performance COMS
- Ultra-low light
- 1920 × 1080 resolution
- 2.7~13.5 mm motorized varifocal lens
- EXIR 2.0, smart IR, up to 70 m IR distance
- OSD menu, 3D DNR, 120 dB true WDR, day/night switch
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
Specification:
- GImage Sensor: 2 MP CMOS image sensor
- Minimum Illumination: 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
- Electronic Shutter: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
- Video Resolution: 1920 (H) ×1080 (V)
- Video Frame Rate: PAL: 1080p@25fps / NTSC: 1080p@30fps
- Focal Length: 2.7 mm to 13.5 mm
- The angle of View: 102° to 31°
- Day / Night: IR cut filter
- Day / Night Mod: Auto/Color/BW (Black and White)
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Wide Dynamic Range: ≥ 120 dB
- Digital Noise Reduction: 3D DNR
- IR Distance: 70m
- BLC Mode: Yes
- HLC: Yes
- General Function: Brightness, Sharpness, DNR, Mirror, Smart IR, HLC
- Video Output: 1 HD analog output
- Switch Button: TVI/AHD/CVI/CVBS
- Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
- Power Supply: 24 VDC / 12 VDC ±20%
- Power Consumption: Max. 9.7 W
- Ingress Protection: IP67

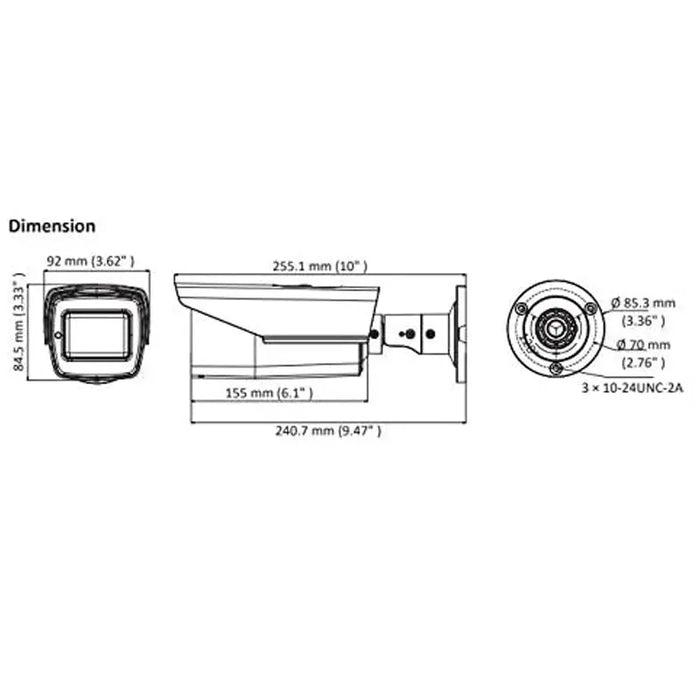

- Dimensions: 84.5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10″)
- Weight: Approx. 870 g (1.92 lb.)
