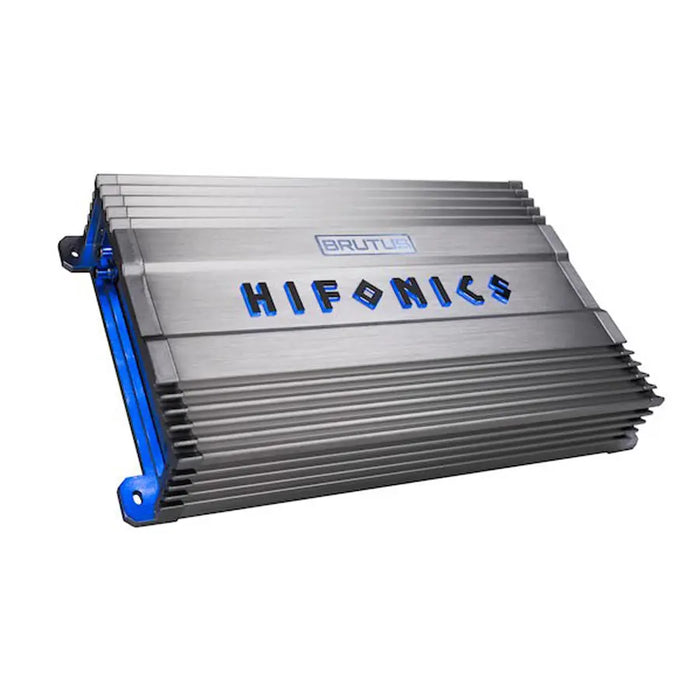

Hifonics BG-1300.1D BRUTUS Gamma Monoblock Subwoofer Class D Amplifier 1300W

In Stock
$200.06
Condition: NEW
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)

California customers:
Please click here for your Proposition 65 warning.

Hifonics BG-1300.1D BRUTUS Gamma Monoblock Class D Amplifier

Hifonics BRUTUS Gamma Mono subwoofer audio amplifier delivers 1300 watts with Super D Class™ technology that features Ultra-Fi™ MOSFET outputs that are selected for both balance and output power.

Features:

  • LOW NOISE PREAMPLIFIER CIRCUIT
    Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
  • RCA INPUTS
    Nickel-plated RCA jacks create the most efficient High/Low-Level audio connection and resist corrosion.
  • OPERATION MODE
    Mono only.
  • CROSSOVER TYPE
    Variable electronic crossovers allow for complete control of the sound.
  • ELECTRONIC EQUALIZER
    Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
  • CLASS/TOPOLOGY
    Super D-Class™ designs employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs.
  • OUTPUT DEVICE TECHNOLOGY
    Pro-Fi™ Output Device Technology: The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion.
  • HEAT SINK
    Classic aluminum Hifonics design to minimize heat build-up on the Ultra-Fi™ output devices.
  • POWER SUPPLY
    Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
  • OUTPUT CONNECTIONS
    High temperature impact-resistant nickel-plated connectors with allen head set screws which allow for secure termination of wire and create an erosion-resistant seal.
  • CONNECTION TYPE
    Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile.
  • LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
    Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
  • BASS REMOTE INCLUDED
    Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.
  • PHASE ADJUSTMENT
    Phase 0-180°: Bass drum attack, snap requires phase between deep frequency subwoofers and upper midbass speakers.

Specifications:

  • CEA STANDARDS
    CTA-2006B Compliant. CTA stands for Consumer Technology Association and Hifonics has been a member for decades.
  • CLASS
    Super D Class™
  • TOTAL CHANNELS
    1
  • POWER @ 1 OHM (CH X WATTS)
    1 x 1300
  • POWER @ 2 OHMS (CH X WATTS)
    1 x 650
  • POWER @ 4 OHMS (CH X WATTS)
    1 x 325
  • CROSSOVER
    Variable Electronic 12dB Per Octave
  • VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
    30Hz-250Hz
  • TONE CONTROL/PARAMETRIC EQ
    Built-in bass control
  • BASS BOOST
    0-10dB
  • SUBSONIC FILTER
    15Hz-35Hz
  • PHASE SHIFT
    0-180 Degrees
  • VARIABLE VOLTAGE
    .2 to 9V
  • FREQUENCY RESPONSE
    10Hz-500Hz
  • TOTAL HARMONIC DISTORTION (THD)
    < 0.10%
  • SPEAKER LEVEL AUDIO INPUTS
    Yes
  • POWER TERMINAL 12V/GND
    4 AWG
  • SPEAKER TERMINAL WIRE GAUGE
    12 AWG
  • FUSING
    2 x 50A
