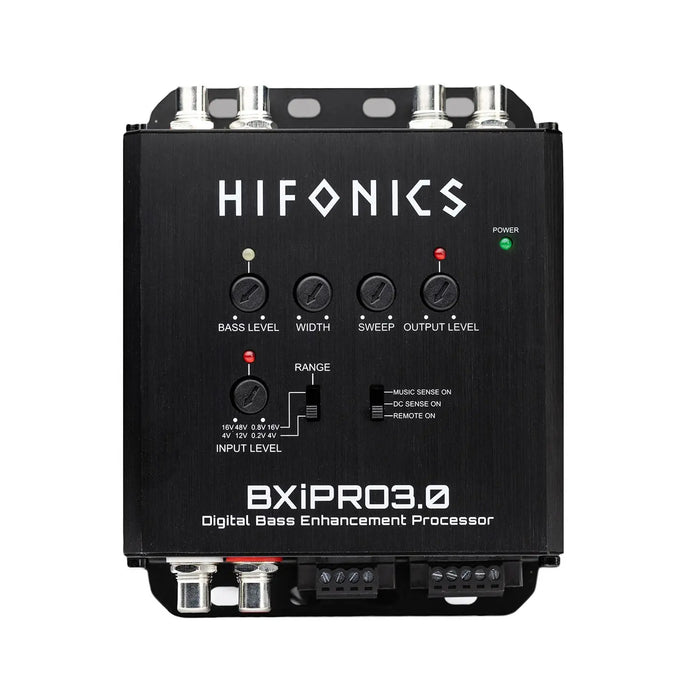

Hifonics BXIPRO3.0 Digital Bass Enhancer Processor with Dash Mount Remote Control
The BXiPRO3.0 processor integrates into any vehicle with an upgraded subwoofer system. Showcasing a compact design with a sleek finish to it, you’ll receive half the size in space with TRIPLE THE POWER for your audio. With adjustable mounting solutions and multi-point installation options including placing the processor behind dash-concealed locations, this processor will be as flexible as your installation demands it to be.
Features:
- BXiPro Bass Enhancer Processor with Dash Mount Remote Control
- Enhances and restores the bass level
- Screw-in power and speaker connecters to chassis for secure connections that prevent disconnection

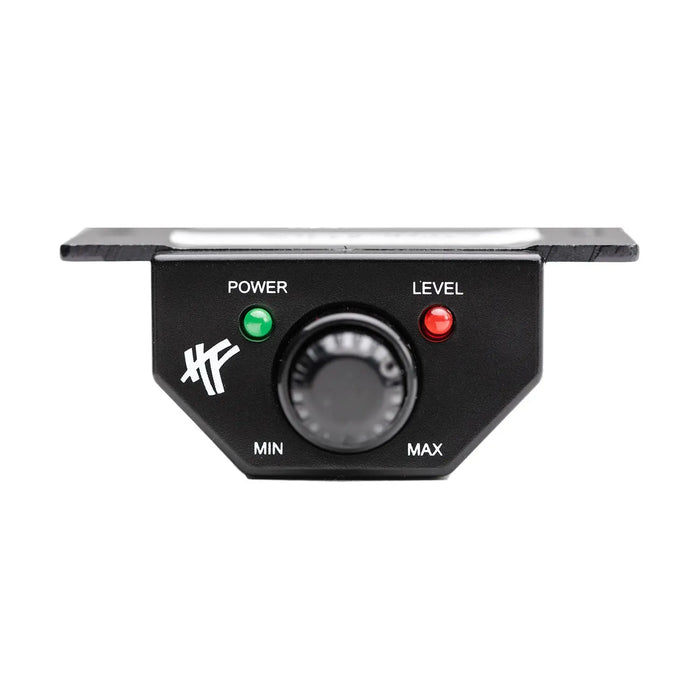

- Dual function bass remote
- Remote wire input, DC sense, and music sense turn on
- Input and output signal clip indicators

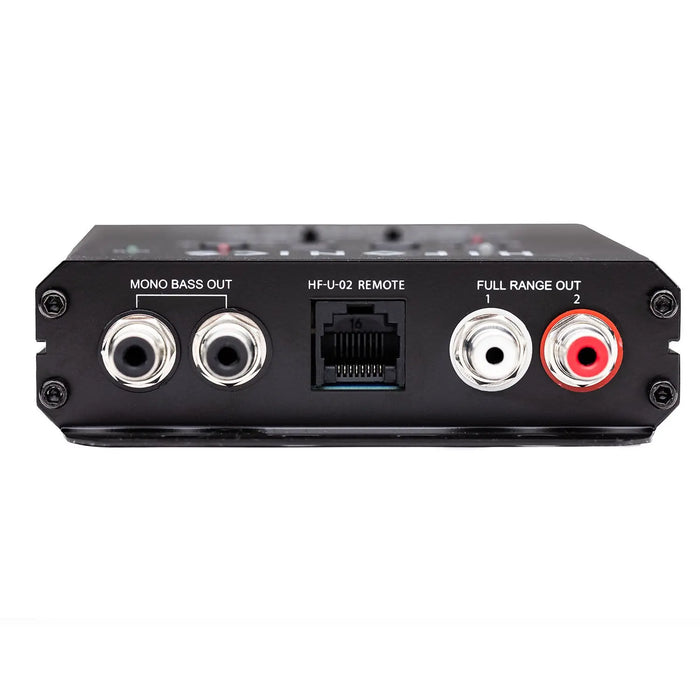

- Mono adjustable output level (can be controlled by bass remote)
- 48v high-level inputs
- Ability to use test tones to set input and output levels

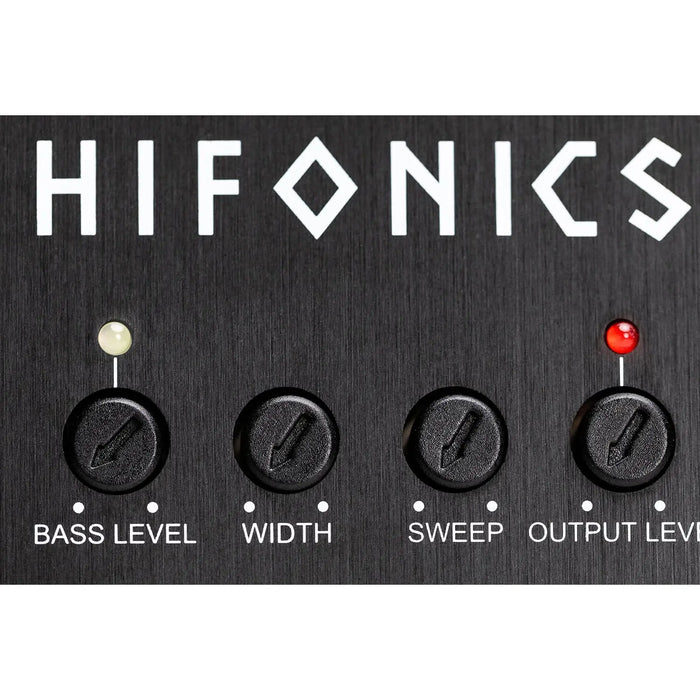

- Fine-tuning adjustability using bass width and sweep
- Fixed 4v full range output
- Small profile
- Tiffany style RCA connectors

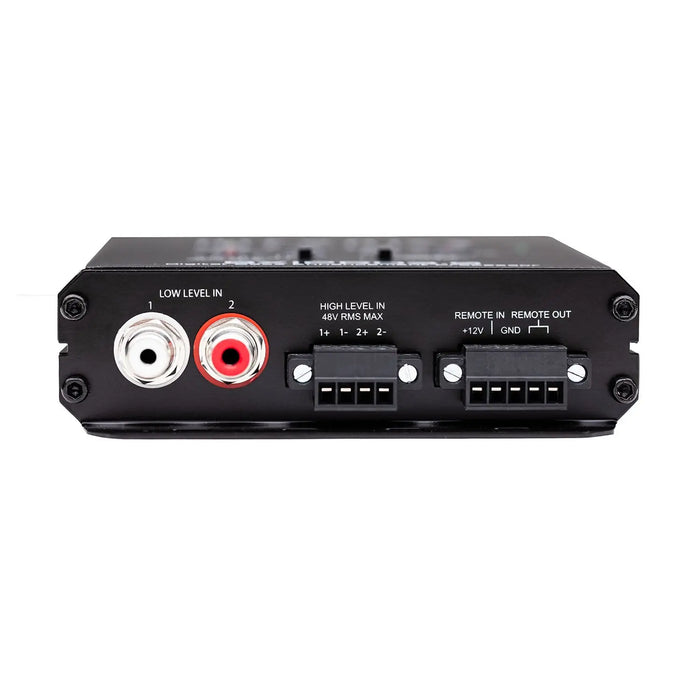

- Low and high-level audio inputs (speaker level inputs)
- Balanced differential inputs (for noise reduction)
Specification:
- Type: Processor
- Series: BXiPro
- Category: Mobile
- Compatible Vehicles: Universal
- Accessory Hardware / Tools: Includes mounting hardware
- Fuse value: 1A mini ATC
- Voltage range: 9.5V -15V

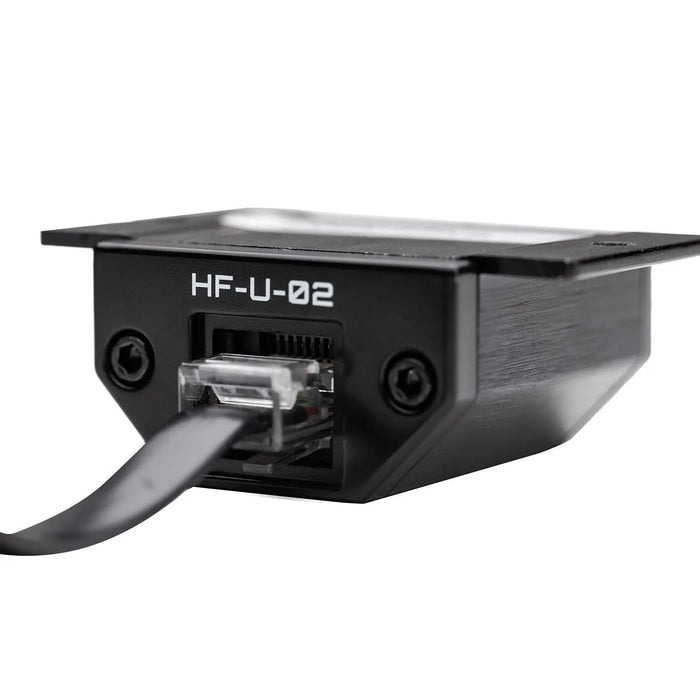

- Bass remote type: HF-U-02
- Fixed voltage output full range: 4V
- Adjustable subwoofer output voltage: 0V -9V
- Maximally Flat Frequency Response Main: (-3dB) 10Hz to >50kHz
- Input Impedance Low-level inputs: 20k Ohms
- Input Impedance High-level inputs: 20k Ohms
- Maximum high-level Input Voltage on any input before clipping: >48V
- Maximum Output voltage at 1.0% THD+N (subwoofer output): 9.0V
- Signal to Noise Ratio (ref to 2Vrms out, unity gain): -84.0dBA
- EQ boost: Variable to +8.1dB
- Unit turn on options: 30mV High-Level Audio, 59mV RCA Audio, 2.2V DC Offset
- Current Draw: 0.32A
- Turn on Delay Time: 0.1 seconds
- Setup test tone track: 100 Hz & 1000Hz
- Dimensions: 109mm W x134mm D x 30.5mm H
