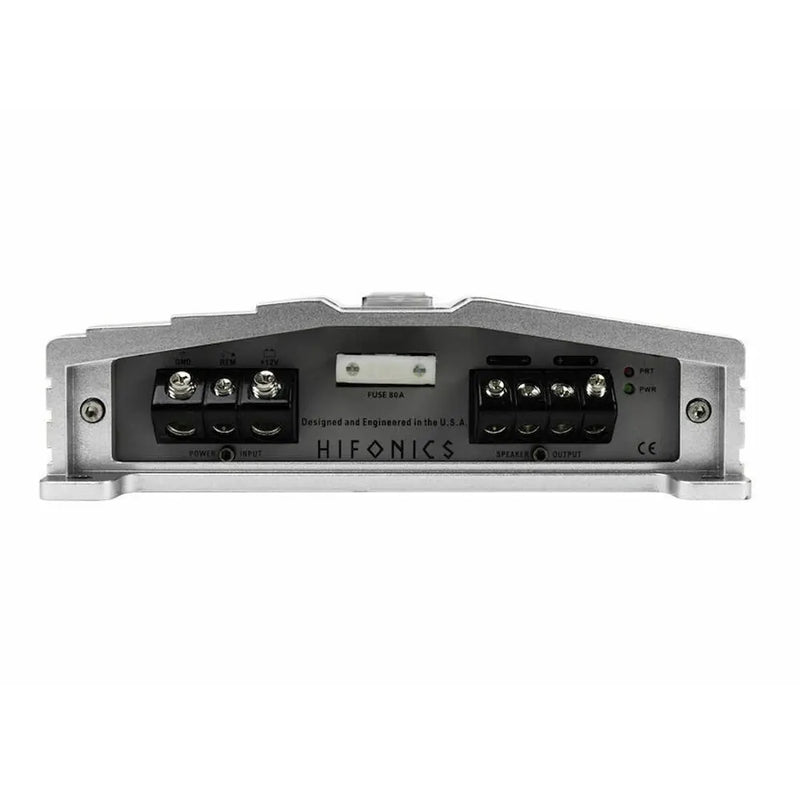

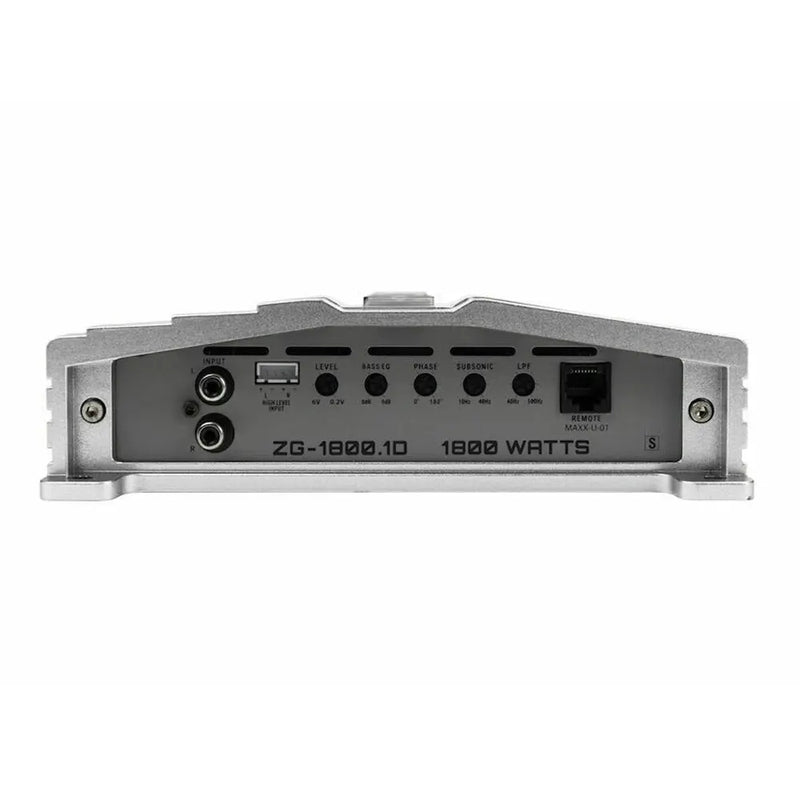

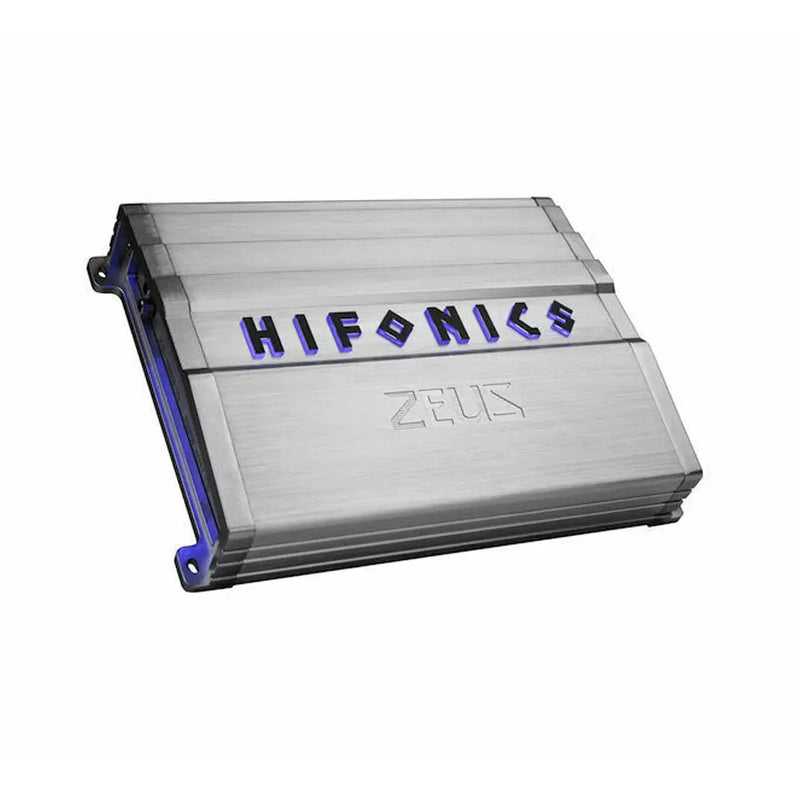

Hifonics ZG-1800.1D ZEUS Gamma 1800 Watts Mono Subwoofer Car Audio Amplifier

Sorry, this product has been discontinued.

Hifonics ZG-1800.1D ZEUS Gamma Subwoofer Amplifier

Hifonics ZEUS Gamma mono subwoofer audio amplifier delivers 1800 watts with Simpatico coil design (SPC) that features PWM MOSFET power supply for maximum current levels.

LOW NOISE PREAMPLIFIER CIRCUIT
Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
RCA INPUTS
Nickel plated high temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
HIGH LEVEL INPUTS
Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
OPERATION MODE
Mono only.
CROSSOVER TYPE
Onboard electronic crossover.
ELECTRONIC EQUALIZER
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
CLASS/TOPOLOGY
Class D: High efficiency with big power in a small footprint.
OUTPUT DEVICE TECHNOLOGY
PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
HEAT SINK
Aluminum: Old School Hifonics Heat sink for Superior Heat Dissipation.
POWER SUPPLY
Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
OUTPUT CONNECTIONS
RCA Outputs: Daisy chain multiple amplifier to eliminate additional signal cables from the source unit.
CONNECTION TYPE
Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile.
LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
BASS REMOTE INCLUDED
Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.
PHASE ADJUSTMENT
N/A

Specifications

CLASS: Class D
TOTAL CHANNELS: 1
POWER @ 1 OHM (CH X WATTS): 1 x 1800
POWER @ 2 OHMS (CH X WATTS): 1 x 900
POWER @ 4 OHMS (CH X WATTS): 1 x 450
CROSSOVER: Variable Electronic 12dB Per Octave
VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE: 40Hz-300Hz
TONE CONTROL/PARAMETRIC EQ: Built-in bass control
BASS BOOST: 0-9dB
SUBSONIC FILTER: 10Hz-40Hz
PHASE SHIFT: 0-180 Degrees
VARIABLE VOLTAGE: .2 to 6V
FREQUENCY RESPONSE: 10Hz-500Hz
TOTAL HARMONIC DISTORTION (THD): < 0.10%
SPEAKER LEVEL AUDIO INPUTS: Yes
POWER TERMINAL 12V/GND: 4 AWG
SPEAKER TERMINAL WIRE GAUGE: 12 AWG
FUSING: 80A
