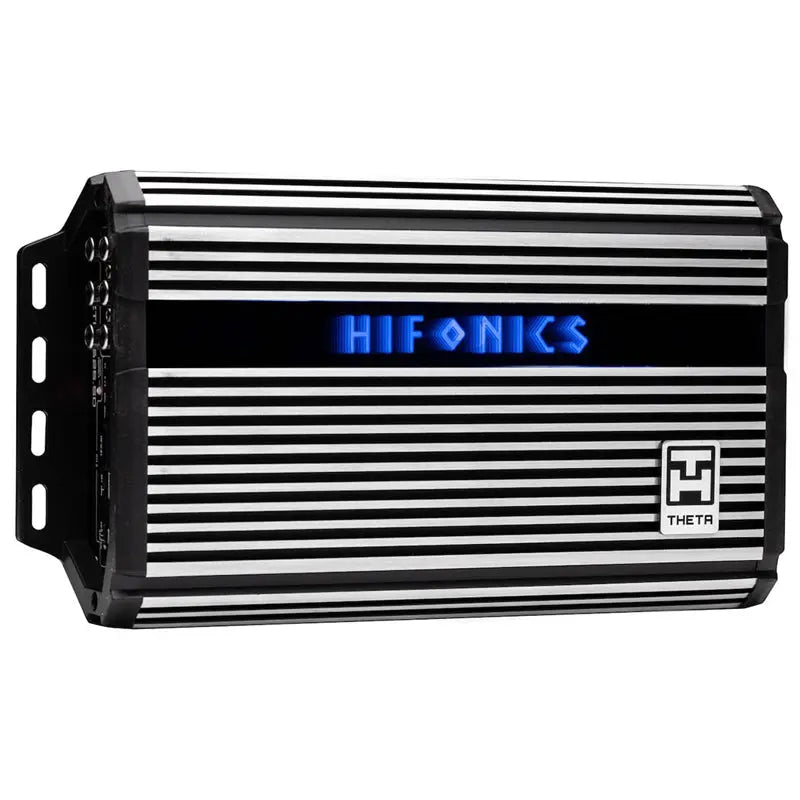

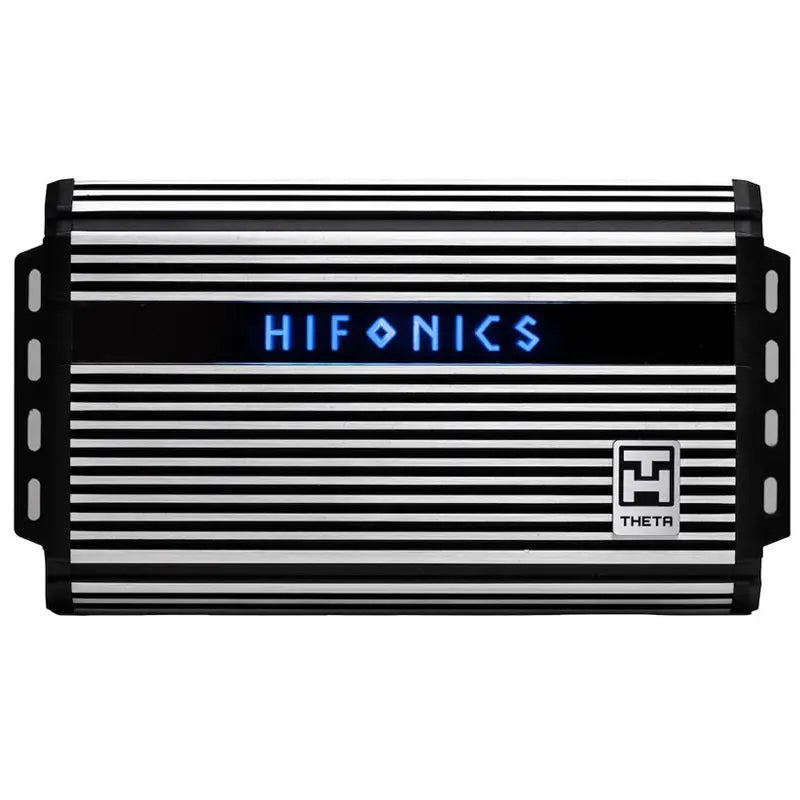

Hifonics ZTH-1625.5D ZEUS THETA Compact 1600W Super D-Class 5-Channel Amplifier

Sold out
Original price $199.95 - Original price $199.95
Original price
$199.95
$199.95 - $199.95
Current price $199.95

Hifonics ZTH-1625.5D ZEUS THETA 1600W Super D-Class 5-Channel Amplifier

Hifonics ZEUS THETA five-channel amplifier delivers 1600 watts that features PWM MOSFET power supply for maximum current levels.

Features:

  • LOW NOISE PREAMPLIFIER CIRCUIT
    Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
  • RCA INPUTS
    Nickel-plated high-temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
  • OPERATION MODE
    Four-Channel, Full Range, Bridgeable: Flexible installation allows this amplifier to run in four-channel or bridged mono mode.
  • CROSSOVER TYPE
    Onboard electronic crossover
  • ELECTRONIC EQUALIZER
    Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
  • CLASS / TOPOLOGY
    Class D: High efficiency with big power in a small footprint.
  • OUTPUT DEVICE TECHNOLOGY
    PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
  • HEAT SINK
    Aluminum: Old School Hifonics Heat sink for Superior Heat Dissipation.
  • POWER SUPPLY
    Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

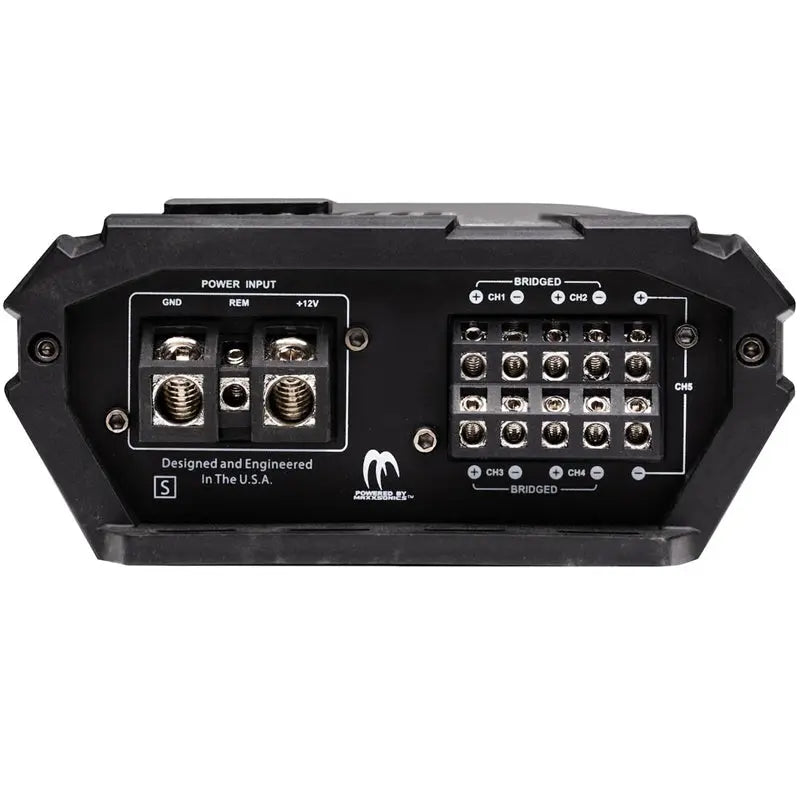

  • CONNECTION TYPE
    Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile.
  • LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
    Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
  • BASS REMOTE INCLUDED
    Yes

Specifications:

  • Amp Class: Class D
  • Amp Total Channels: 5
  • Amp Max Power (watts): 1600
  • Amp Power @ 1 Ohm (ch x watts): 1 x 500 Sub Only
  • Amp Power @ 2 Ohms (ch x watts): 4 x 135 + 1 x 250
  • Amp Power @ 4 Ohms (ch x watts): 4 x 65 + 1 x 125
  • Amp Crossover: Variable Electronic 12dB Per Octave
  • Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-300Hz
  • Amp Variable High Pass Crossover 12dB per Octave: 40Hz-300Hz
  • Amp Tone Control / Parametric EQ: Built-in bass control
  • Amp Subsonic Filter: 25Hz
  • Amp Variable Voltage: 0.2-6V
  • Amp Frequency Response: 10Hz-500Hz
  • Amp Total Harmonic Distortion (THD): < 0.1%
  • Amp Speaker Level Audio Inputs - Yes
  • Amp Power Terminal 12v/GND: 4 AWG
  • Amp Speaker Terminal Wire Gauge: 12 AWG
  • Amp Fusing: External 100A
  • Bass Remote Included: Yes
  • Color: Silver
