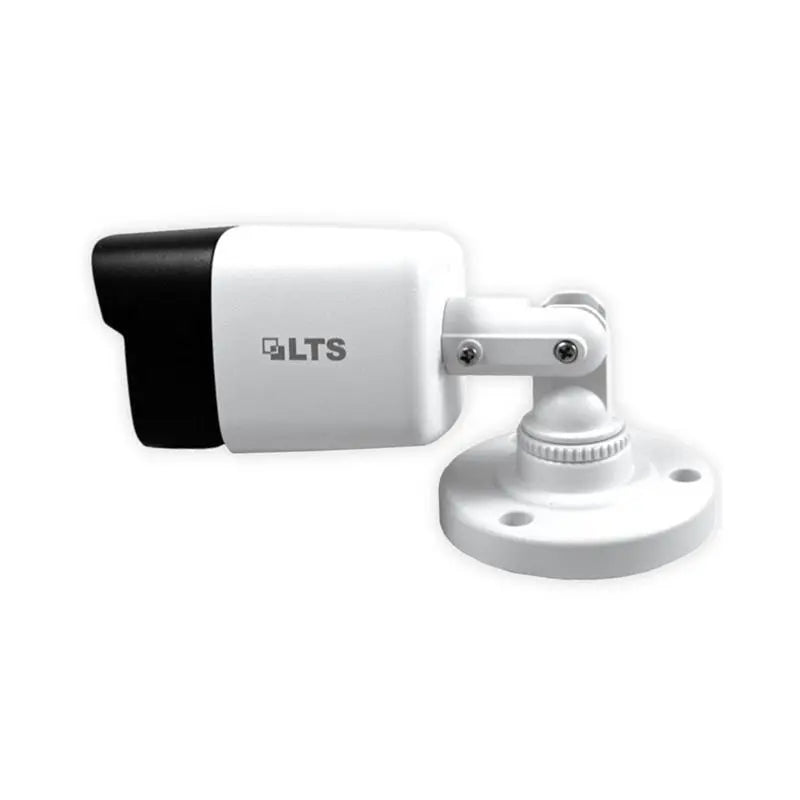

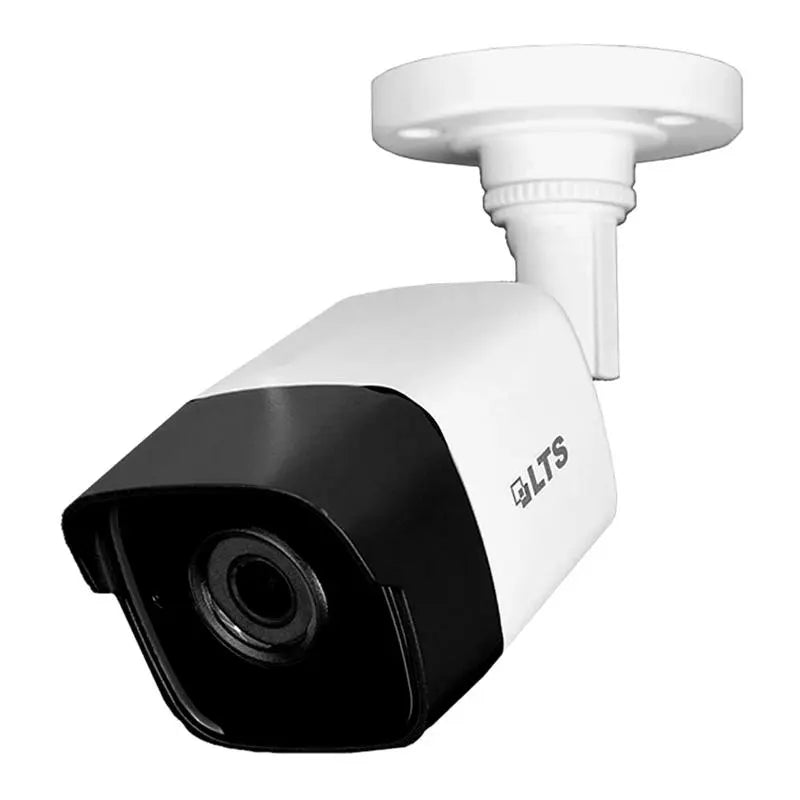

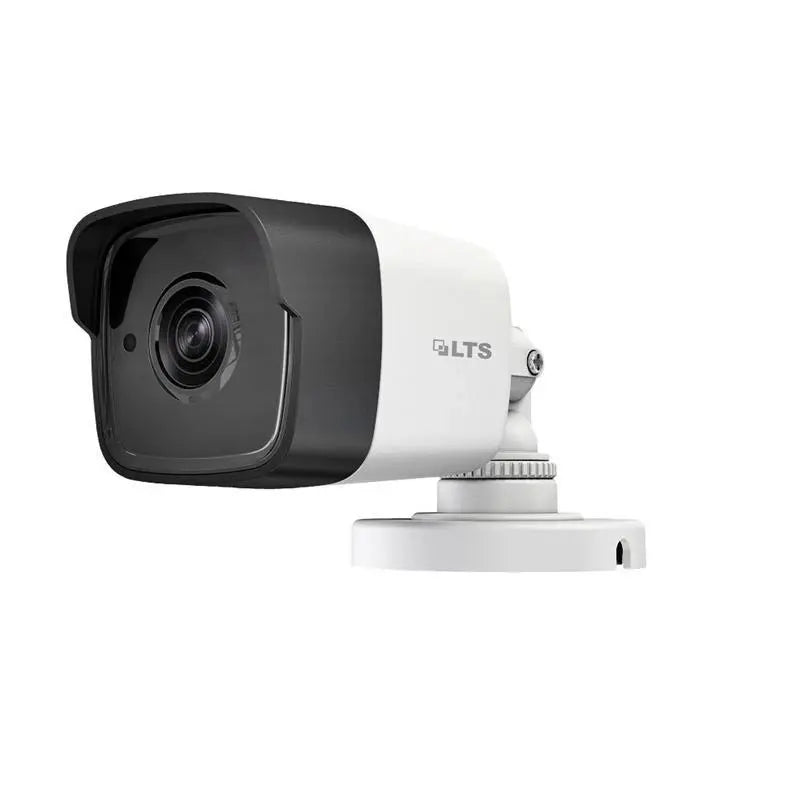

LTS CMHR6452N-28F 2.8mm 5MP Bullet 4-in-1 Output HD-TVI CCTV Camera

by LTS
Out of Stock
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)

California customers:
Please click here for your Proposition 65 warning.

LTS CMHR6452N-28F Platinum Bullet HD-TVI Security Camera 5MP - 2.8mm 4-in-1 Video Output

Brand: LTS
MPN: CMHR6452N-28F
Condition: New

• High Definition Bullet 5MP HD-TVI Camera
• 2.8mm Fixed Lens
• 2560x1944@20fps
• 0.01 Lux, Smart IR
• 2 Matrix IR 2.0 LED up to 66ft
• UTC Control to OSD Menu
• DC 12V
• IP67
• 4-in-1 Video Output



Image Sensor 5 MP CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.01 Lux, 0 Lux with IR
Lens 2.8mm; FoV: 85.5°
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 Analog Output
Switch Button TVI/AHD/CVI/CVBS
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°


AGC Support
D/N Mode Color/ BW/ SMART
White Balance ATW/ MWB
DWDR Support
BLC Support
Function Brightness, Sharpness, DNR, Mirror, Smart IR


Working Temperature
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 4.3W
Weather Proof Ratings IP67
IR Range Up to 66ft (20m)
Dimensions 2.28" × 2.40" × 6.42"(58 mm × 61 mm × 163 mm)
Weight 0.77 lbs (350g)
