LTS CMHT1722B-28F Platinum Series IP / Network Turret Camera HD 1080p 4-in-1

Sorry, this product has been discontinued.

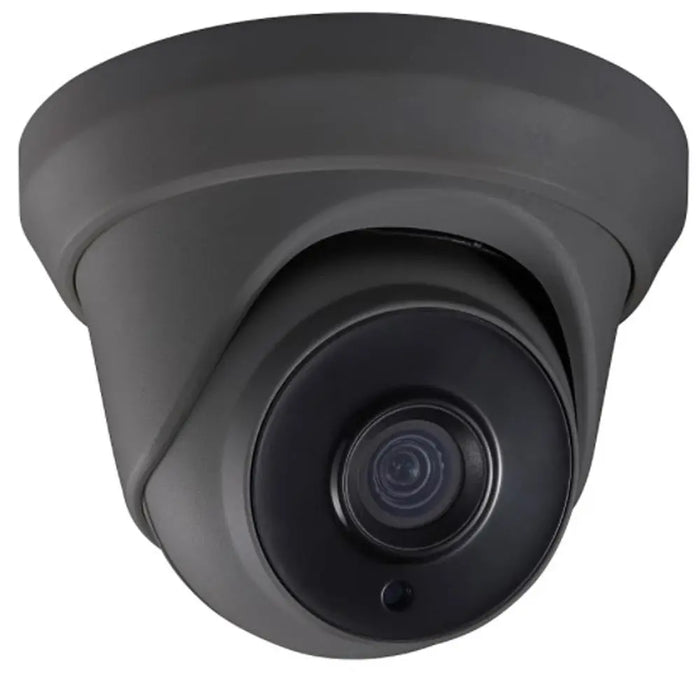

LTS CMHT1722B-28F Platinum Series IP / Network Turret Camera

The LTS CMHT1722B-28F Outdoor IP Turrent Camera 2.1MP Full HD 1080P, 2.8mm Fixed Lens, 1920x1080P@30fps, Smart IR and TVI/AHD/CVI/960H Switchable.


  • 2.1MP Full HD 1080P
  • 2.8mm Fixed Lens
  • 1920x1080P@30fps
  • 0.01 Lux, Smart IR
  • TVI/AHD/CVI/960H Switchable
  • IP66


  • Camera Series: Platinum Series
  • Camera Resolution: 2.1MP / 1080P
  • Camera Technology: IP / Network
  • Camera Housing: Turret


  • Image Sensor: 2 MP CMOS image sensor
  • Signal System: NTSC/PAL
  • Effective Pixels: 1930(H)*1088(V)
  • Min. Illumination: 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR
  • Shutter Speed: 1/25(1/30) s to 1/50,000 s
  • Lens: 3.6mm, 2.8 mm fixed lens
  • Day & Night: IR cut filter
  • Synchronization: ICR
  • Video Frame Rate: Internal synchronization
  • HD Video Output: NTSC: 1080p@30fps/PAL: 1080p@25fps
  • HD Video Output: 1 HD analog output
  • S/N Ratio: More than 52dB


  • Camera ID: On/Off (0-255)
  • AGC: Low/middle/high
  • D/N Mode: Smart/color/BW(Black and White)
  • White Balance: Auto/User/Push/8000K/6000K/4200K/3200K/HOLD
  • Privacy Mask: On/Off, Maximum 2 zones
  • Motion Detection: On/Off
  • BLC: Support
  • Anti-Flicker: On/Off
  • Language: English
  • Function: Brightness, Sharpness, DNR, Mirror


  • Working Temperature/Humidity: -40 °F - 140°F (-40 °C - 60°C) Humidity 90% or less (non-condensing)
  • Power Supply: 12 V DC±15%
  • Power Consumption: Max. 4W
  • Weather Proof Ratings: IP66
  • IR Range: Up to 131ft (40m)
  • Dimensions: φ5.0"x4.0" (φ126.7 x 102.1mm)
  • Weight: 1.1lb (500g)
