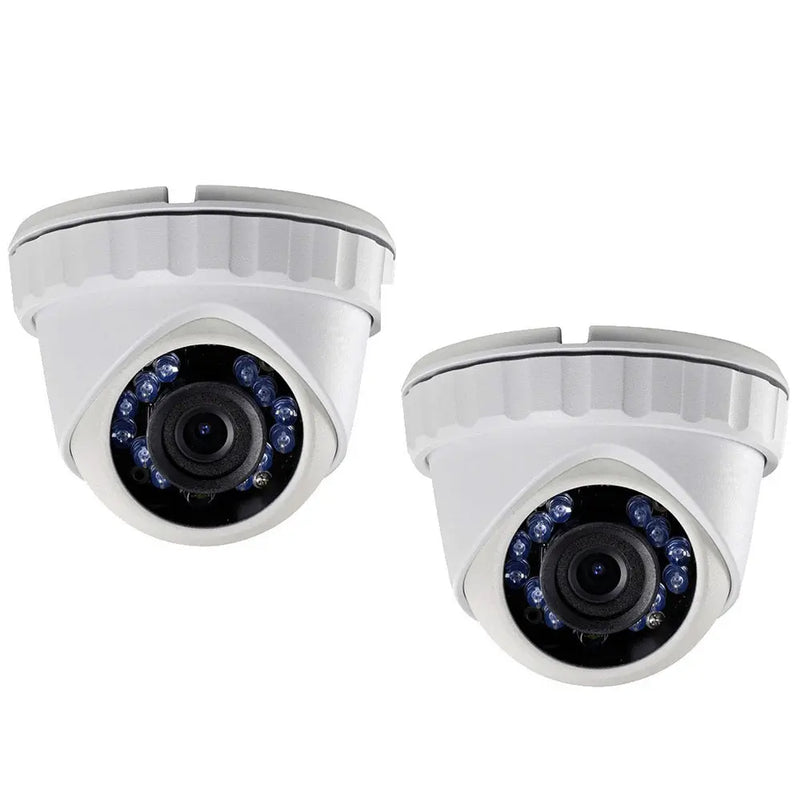

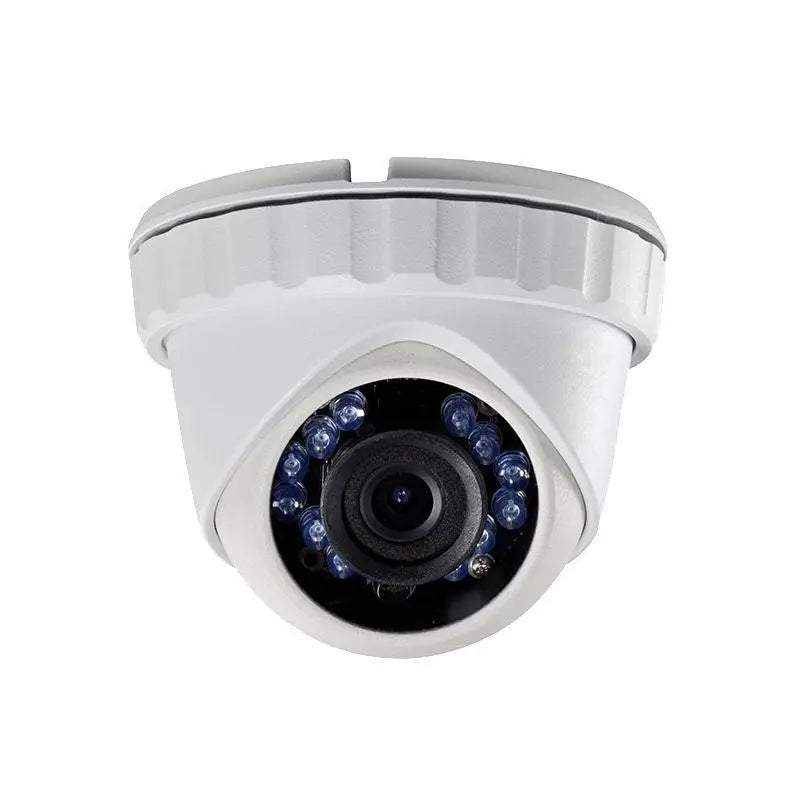

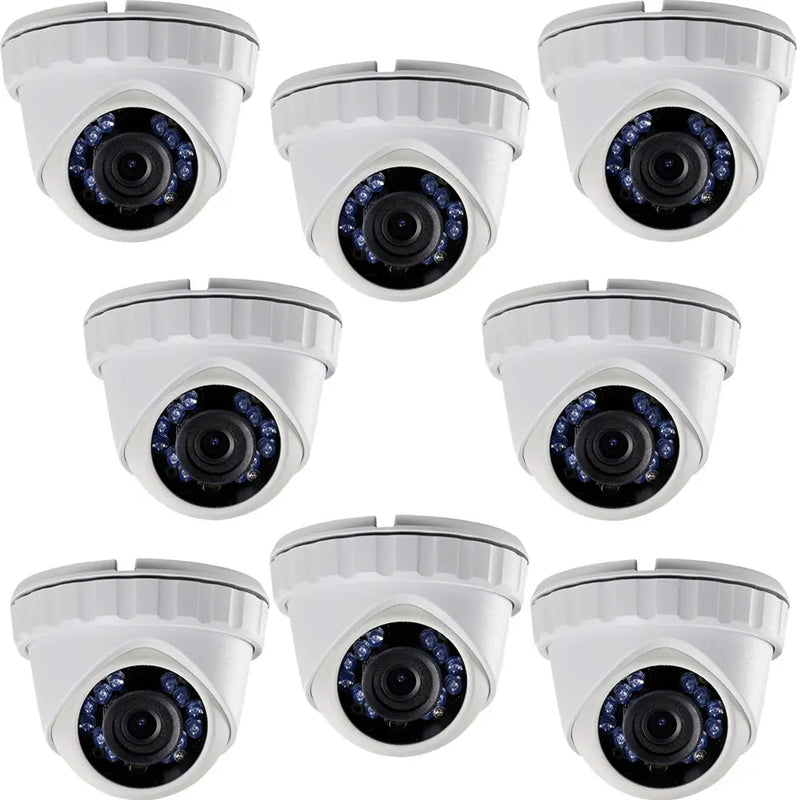

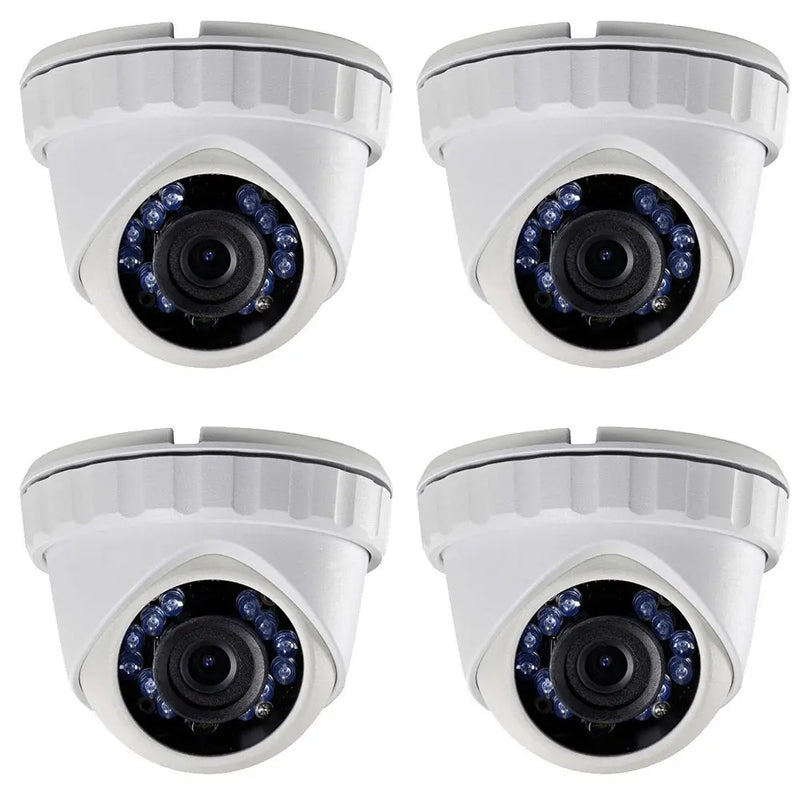

LTS CMHT2122F HD-TVI 2.1MP 1080P 3.6mm Smart IR 65ft IP66 Turret Camera

Out of Stock
$38.02
Condition: NEW
Package Option

California customers:
Please click here for your Proposition 65 warning.

LTS CMHT2122F HD-TVI 2.1MP 1080P 3.6mm Smart IR 65ft IP66 Turret Camera

eco - Energy Efficient, Full HD 1080P, Platinum HD-TVI, True Day/Night, Smart IR, Up to 65ft (20m), IP66 Weatherproof, TVI/AHD/CVI/960H switchable

Features:

  • 2.1MP High Definition
  • Full HD 1080P
  • 1920X1080P@30fps
  • 3.6mm Fixed Lens
  • 24 IR LEDs up to 65ft
  • Outdoor/Indoor
  • DC 12V
  • IP66
  • UTC
  • TVI/AHD/CVI/960H switchable

Specifications:

Camera

  • Image Sensor: 2MP CMOS Image Sensor
  • Signal System: PAL/NTSC
  • Frame Rate: PAL: 1080p@25fps / NTSC: 1080p@30fps
  • Resolution: 1920 (H) ×1080 (V)
  • Min. illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1/25 (1/30) s to 1/50,000 s
  • Lens: 3.6 mm 2.8 mm fixed lens
  • Horizontal Field of View: 103°(2.8 mm), 82.2°(3.6 mm)
  • Lens Mount: M12
  • Day & Night: IR cut filter
  • Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Synchronization: Internal synchronization

Menu

  • AGC: Low/middle/high
  • Day/Night Mode: Smart/color/BW(Black and White)
  • Backlight Compensation: Yes
  • DWDR: Yes
  • Language: English
  • Functions: Brightness, Sharpness, DNR, Mirror

Interface

  • Video Output: 1 HD analog output
  • Switch Button: TVI/AHD/CVI/CVBS

General

  • Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • Power Supply: 12 VDC±15%
  • Power Consumption: Max. 4 W
  • Ingress Protection: IP66
  • Material: Metal
  • IR Range: Up to 65ft(20 m)
  • Dimensions: φ 3.5” ×2.8”(φ 90.6×71.3mm)
  • Weight: 0.9lb(400g)
