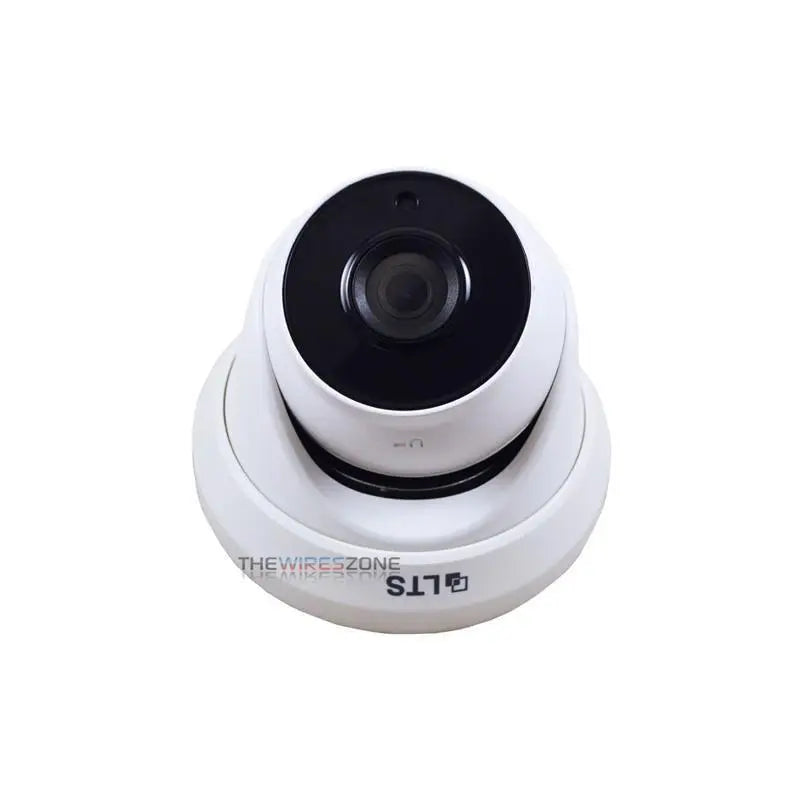

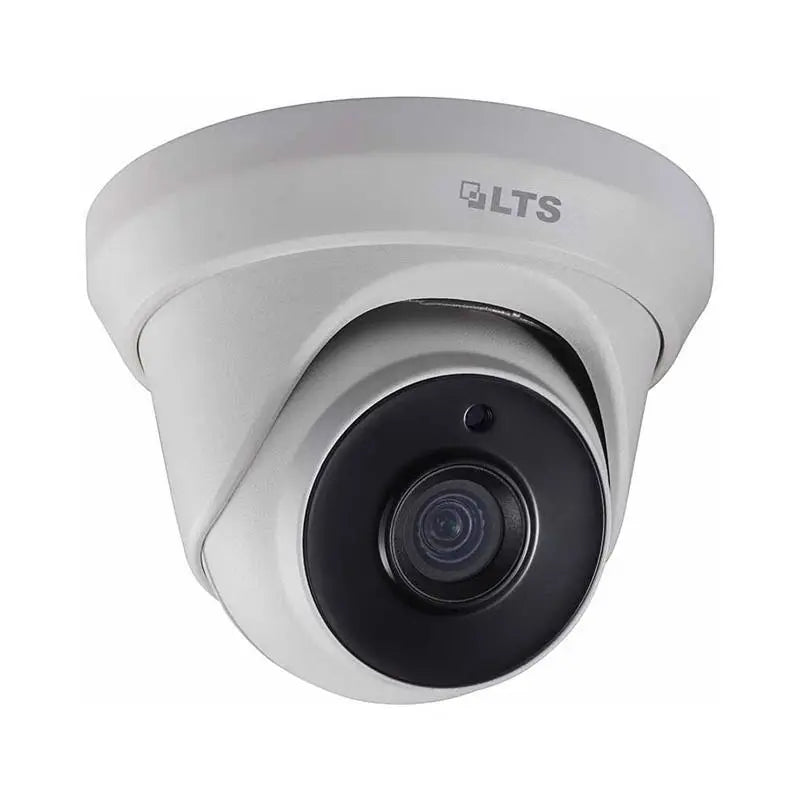

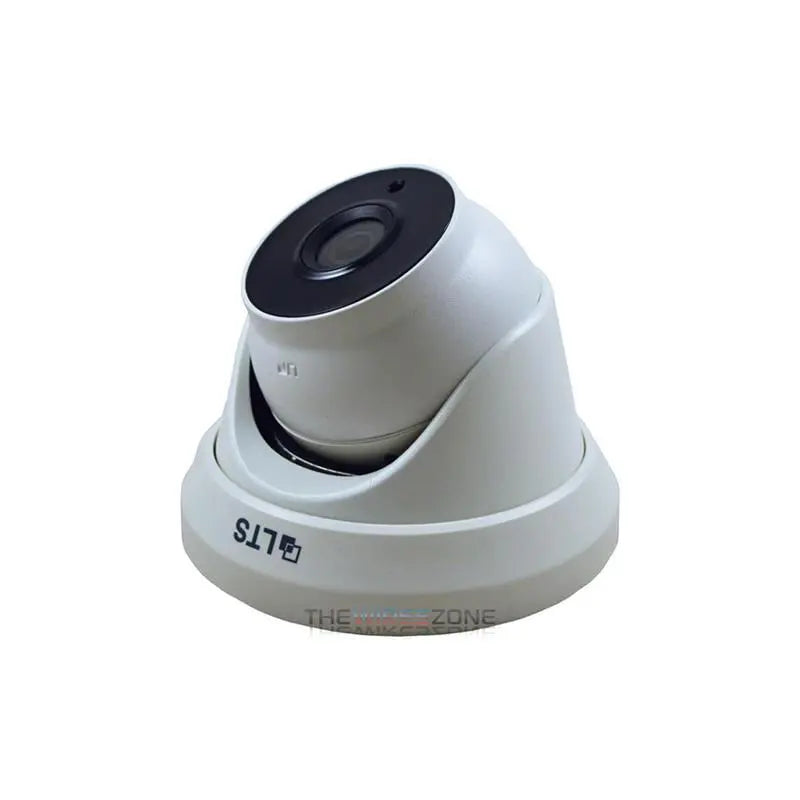

LTS CMHT2722-28 HD TVI 2MP 1080P 2.8mm Matrix IR 131ft Security Camera

Sorry, this product has been discontinued.

LTS CMHT2722-28F HD TVI 2MP 1080P 2.8mm Matrix IR 131ft Security Camera

MPN:
CMHT2722-28F

2.1MP Full HD 1080P
2.8mm Fixed Lens
1920x1080P@30fps
0.01 Lux, Smart IR
TVI/AHD/CVI/960H Switchable
2 Matrix IR up to 131 ft
IP66

SPECIFICATIONS:
Camera Series: Platinum Series
Camera Resolution: 2MP
Camera Technology: HD-TVI
Camera Housing: Turret
Image Sensor: 2 MP CMOS image sensor
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
Resolution: 1920 (H) × 1080 (V)
Min. illumination: 0.01 Lux @ (F1.2, AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8mm fixed lens
Horizontal Field of View: 103 (2.8 mm), 82.2(3.6mm)
Lens Mount: M12
Day & Night: IR cut filter
Angle Adjustment: Pan: 0 to 360, Tilt: 0 to 75, Rotation: 0 to 360
Synchronization: Internal synchronization
AGC: Low/middle/high
Day/Night Mode: Smart/color/BW(Black and White)
Backlight Compensation: Yes
DWDR: Yes
Language: English
Functions: Brightness, Sharpness, DNR, Mirror
Video Output: 1 HD analog output
Switch Button: TVI/AHD/CVI/CVBS
Operating Conditions: -40 C to 60 C (-40 F to 140 F), Humidity: 90% or less (non-condensation)
Power Supply: 12 V DC±15%
Power Consumption: Max. 4 W
Ingress Protection: IP66
Material: Plastic
Matrix IR Range: Up to 131ft(40 m)
Dimension: φ 5.0” × 4.0”(φ 126.7× 102.1mm)
Weight: 1.1lb(500g)

Camera Series: Platinum Series
Camera Resolution: 2MP
Camera Technology: HD-TVI
Camera Housing: Turret
Image Sensor: 2 MP CMOS image sensor
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
Resolution: 1920 (H) × 1080 (V)
Min. illumination: 0.01 Lux @ (F1.2, AGC ON),0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8mm fixed lens
Horizontal Field of View: 103° (2.8 mm), 82.2°(3.6mm)
Lens Mount: M12
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization: Internal synchronization
AGC: Low/middle/high
Day/Night Mode: Smart/color/BW(Black and White)
Backlight Compensation: Yes
DWDR: Yes
Language: English
Functions: Brightness, Sharpness, DNR, Mirror
Video Output: 1 HD analog output
Switch Button: TVI/AHD/CVI/CVBS
Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply: 12 V DC±15%
Power Consumption: Max. 4 W
Ingress Protection: IP66
Material: Plastic
Matrix IR Range: Up to 131ft(40 m)
Dimension: φ 5.0” × 4.0”(φ 126.7× 102.1mm)
Weight: 1.1lb(500g)
