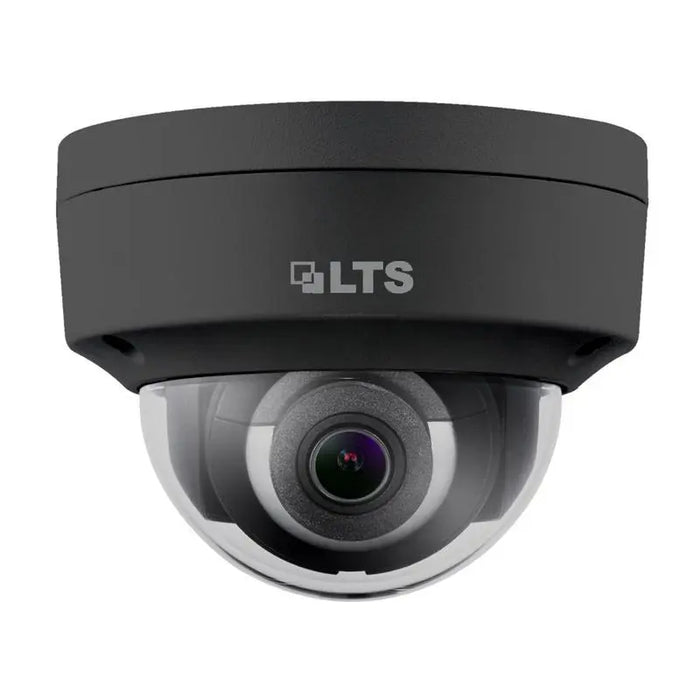

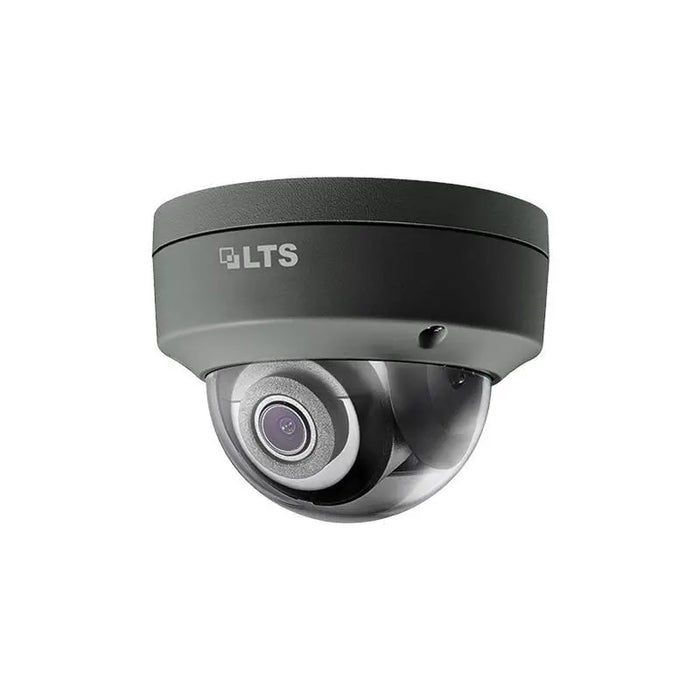

LTS CMIP7342WB-28 2.8mm 4MP HD Vandal Dome Network IP CCTV Camera

by LTS
In Stock
$114.95
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)
LTS CMIP7342WB-28 Platinum Network Vandal Dome IP 4MP High Definition Secuirty Camera - 2.8mm

Brand: LTS
MPN: CMIP7342WB-28
Condition: New

• 4MP High Definition
• Up to 2560x1440@30fps
• 2.8mm Fixed Lens
• 0.018 Lux @ F1.6
• Matrix IR 2.0, IR Range up to 100ft
• H.265, H.265+, H.264, H.264+ Ready
• True WDR 120dB
• IP67 & IK10
• MicroSD Slot up to 128GB
• DC 12V, PoE
• VCA - Line Crossing, Intrusion Detection, Face Detection

SPECIFICATIONS

CAMERA

Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotation:0° to 355°

LENS

Focal Length  2.8mm
Aperture  F1.6
Focus Manual
Field of View  2.8mm @ F1.6: horizontal FOV: 103°,
vertical FOV: 58°, diagonal FOV: 123°
Lens Mount  M12

IR

IR Range  Up to 98ft (30m)
Wavelength  850nm

COMPRESSION STANDARD

Video Compression Mainstream: H. 265/H.264
Substream: H.265/H.264/MJPEG
Thirdstream: H.265/H.264
H.264  Main Profile/High Profile
H.264+  Mainstream and substream support
H.265 Main Profile
H.265+ Mainstream and substream support
Video Bit Rate 256 Kbps to 16 Mbps

SMART FEATURE-SET

Behavior Analysis  Line crossing and intrusion detection
Face Detection  Yes
Region of Interest  1 fixed region for mainstream and substream


Max. Resolution 2688x1520
Mainstream 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Substream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Thirdstream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness
adjustable by client software or web browser
 Target Cropping  No
 Day/Night Switch  Day/Night/Auto/Schedule

NETWORK

Network Storage Support Micro SD/SDHC/SDXC card (128GB),
local storage and NAS (NFS/ SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected,
IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS,
DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-flicker, three streams,
heartbeat, mirror, password protection,
privacy mask, watermark, IP address filter
API  ONVIF (Profile S, Profile G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

INTERFACE

Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output No
Onboard Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
SVC H.264 and H.265 encoding
Reset Button Yes

GENERAL

Operating Conditions  -30 °C to +60 °C (-22 °F to +140 °F),
Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power
plug PoE (802.3af, class 3)
Power Consumption
and Current
12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Protection Level IP67, IK10 TVS 2000V Lightning Protection,
Surge Protection and Voltage Transient Protection
Material Metal
Dimensions Φ 111 × 82.4 mm (Φ 4.4" × 3.2")
Weight Approx. 610 g (1.3 lb.)
