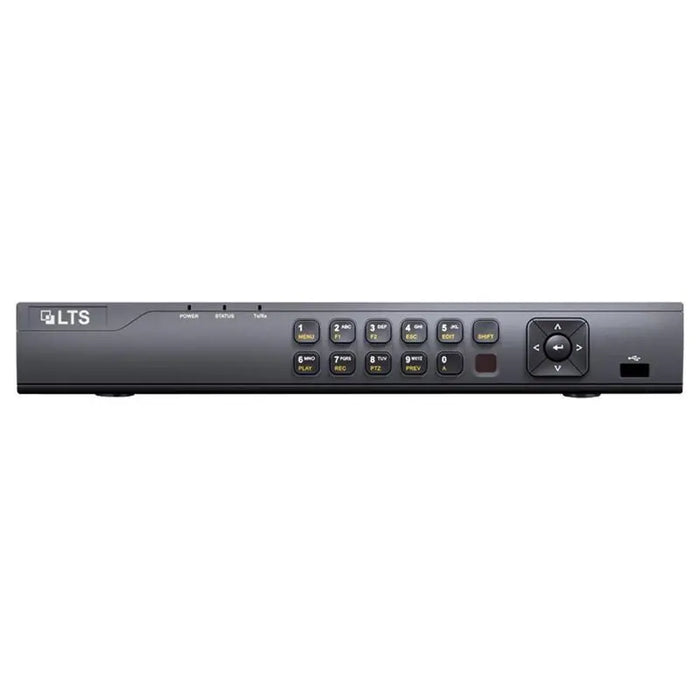

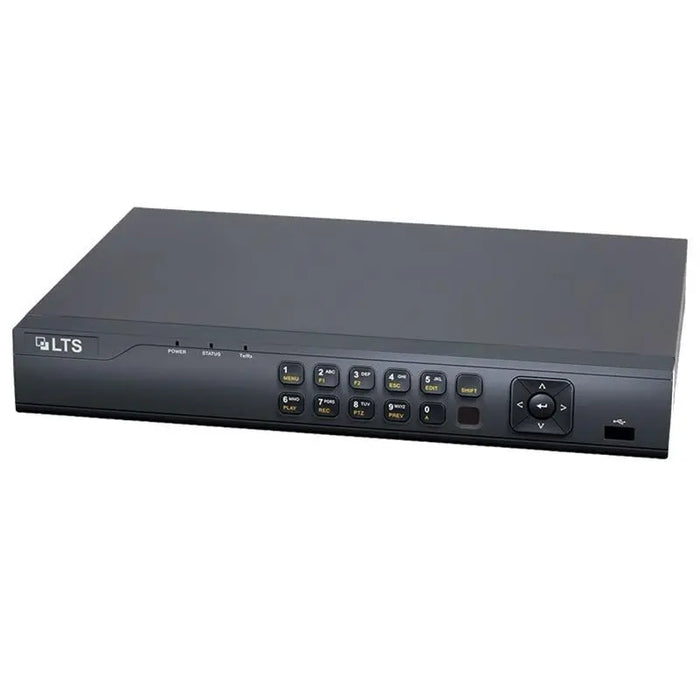

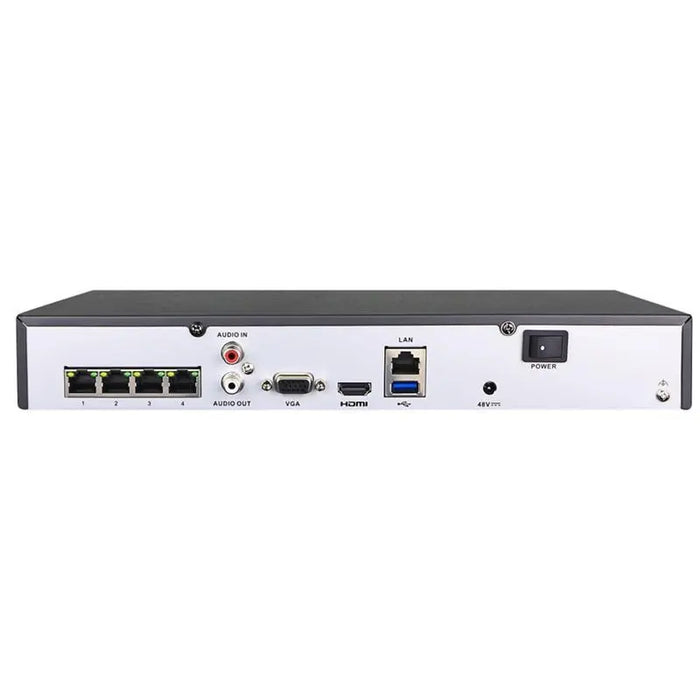

LTS LTN8704Q-P4 1TB 4CH HD 4K Megapixel IP 4 Ports 40Mbps-8MP ONVIF NVR

LTS LTN8704Q-P4 1TB 4CH HD 4K Megapixel IP 4 Ports 40Mbps-8MP ONVIF NVR LTS
Availability:
Out of stock
Sold out
$0.00 - $0.00
$0.00
$246.66
$246.66 - $246.66
$246.66

LTS LTN8704Q-P4 1TB Platinum Professional 4 Channel NVR 4 POE Ports 1U SATA 1TB Pre Installed Storage

  • 4 Channel Network Video Recorder
  • H.265/H.265+/H.264/H.264 Zip+/MPEG4 video formats
  • Support live view, storage, and playback of the connected camera with up to the resolution of 8 Megapixels
  • Recording at up to 8MP resolution
  • Built-in 1TB SATA interface HDD storage
  • HDMI output at up to 4K(3840 x 2160) and
  • VGA output at up to1920 × 1080p resolution

Specifications

  • Recorder Series: Platinum Series
  • Recorder Channel: 4-Channel
  • Recorder Case: Compact Case
  • Recorder Technology: IP / NVR

VIDEO/AUDIO INPUT

  • IP Video Input: 4CH
  • Two Way Audio Input: 1- ch, RCA (2.0 Vp- p, 1kΩ)
  • Incoming Bandwidth: 40Mbps
  • Outgoing Bandwidth: 80Mbps

VIDEO/AUDIO OUTPUT

  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • HDMI Output: 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/ 60Hz
  • VGA Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output: 1CH, RCA (Linear, 1kΩ)
  • Decoding: H.265/H.265+/H.264/H.264 Zip+/MPEG4
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback: 4CH
  • Capability: 1-ch @ 8 MP / 4-ch @ 1 080p

HARD DISK

  • SATA: Built-in 1 TB
  • EXTERNAL INTERFACE
  • Network Interface: 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
  • Network Protocols: TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, IP Portal, SMTP, NFS, iSCSI, UPnP™ , HTTPS
  • USB Port: 2 x USB2.0

GENERAL

  • Power Supply: 48V DC
  • Consumption: ≤ 10W (without enabling PoE)
  • Working Temperature: 14°F - 131°F(-10 °C ~ +55 °C)
  • Working Humidity: 10% - 90%
  • Chassis: 1U Casing
  • Dimension: 315 ×240× 48mm (12.4×9.4 × 1.9 inch)
