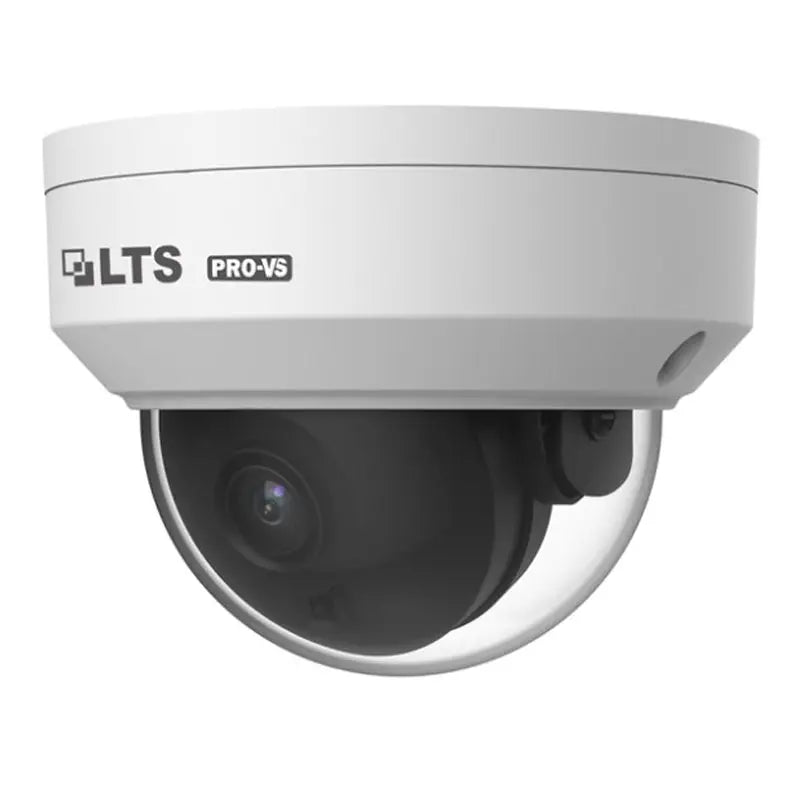

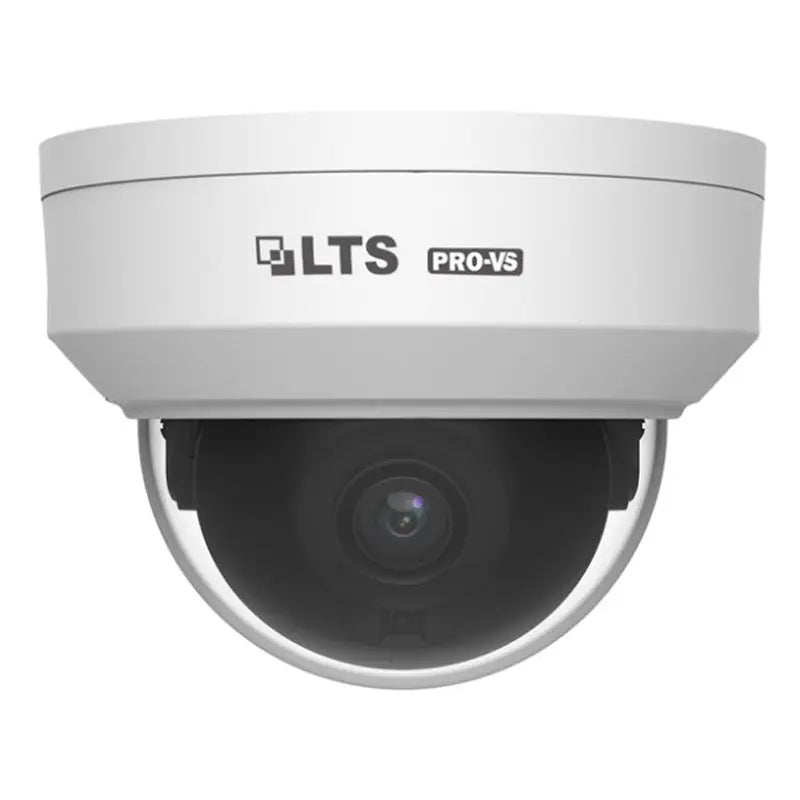

LTS VSIP7442W-28S 4 Megapixel InfraRed Outdoor Dome Network (IP) Security Camera

LTS VSIP7442W-28S 4 Megapixel InfraRed Outdoor Dome Network (IP) Security Camera LTS

Sorry, this product has been discontinued.

LTS VSIP7442W-28S 4 Megapixel InfraRed Outdoor Dome Network (IP) Security Camera

4 Megapixel InfraRed for Night Vision Outdoor Mini Bullet Network (IP) Security Camera, Ultra 265 Compression, Weatherproof, SD Card Support, Built-in Microphone, 2.8mm Fixed Len

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Features:

  •  Compression : Ultra 265, H.265, H.264, MJPEG,
  •  Field of View (Horizontal) : 95.8°Field of View
  •  Max. FPS and Resolution : 30fps at 4MP
  •  Lens Type : Fixed Lens
  •  Lens Size : 2.8mm Lens
  •  Sensor Type : CMOS
  •  Sensor Size : 1/3" Sensor

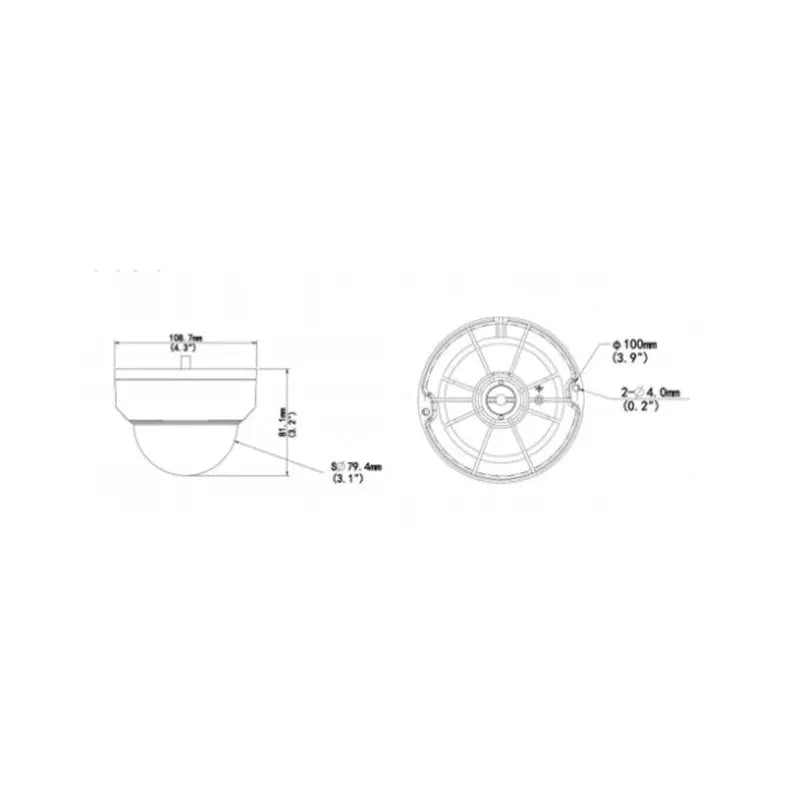

  •  Dimensions : 108.7 x 81.1 mm (4.3 x 3.2 in)
  •  Protection Code : IP67 IK10
  •  Color : White
  •  Material : Metal Plastic
  •  Environmental : Outdoor
  •  Sensor Size : 1/3"
  •  Aperture : F2.0
  • NDAA Compliant

Specification:

Camera

  • Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
  • Lens: 2.8mm@F2.0
  • Angle of View (H): 95.8°
  • Angle of View (V): 55.2°
  • Angle of View (O): 124.5°
  • Adjustment angle: Pan: 3° ~ 360°, Tilt: 0° ~ 68°, Rotate: 3° ~ 360°
  • Shutter: Auto/Manual, 1 ~ 1/100000s
  • Minimum Illumination: Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Digital noise reduction: 2D/3D DNR
  • S/N: >56dB
  • IR Range: Up to 30m (98ft) IR range
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual
  • Defog: Digital Defog
  • WDR: 120dB

Video

  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • H.264 code profile: Baseline profile, Main Profile
  • Frame Rate
  • "Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps
  • Sub Stream: 4CIF (704*576), Max 30fps;
  • Third Stream: CIF (352*288), Max 30fps"
  • Video Bit Rate: 128 Kbps~16 Mbps
  • OSD: Up to 4 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 2 areas
  • Motion Detection: Up to 4 areas


  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Digital noise reduction: 2D/3D DNR
  • Smart IR: Support
  • Flip: Normal/Vertical/Horizontal/180°
  • HLC: Supported
  • BLC: Supported

Audio

  • Audio Compression: G.711
  • Two-way audio: Supported
  • Suppression: Supported
  • Sampling Rate: 8KHZ

Storage

  • Edge Storage: Micro SD, up to 256GB
  • Network Storage: ANR

  •
