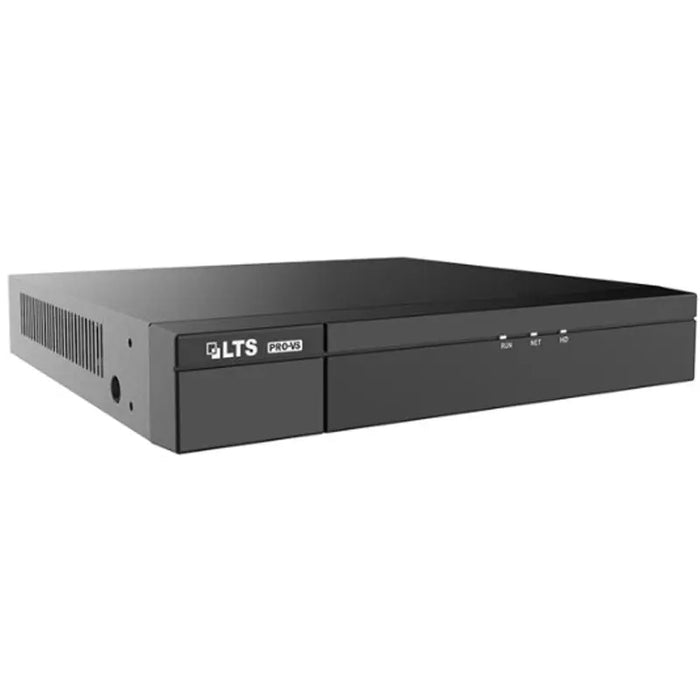

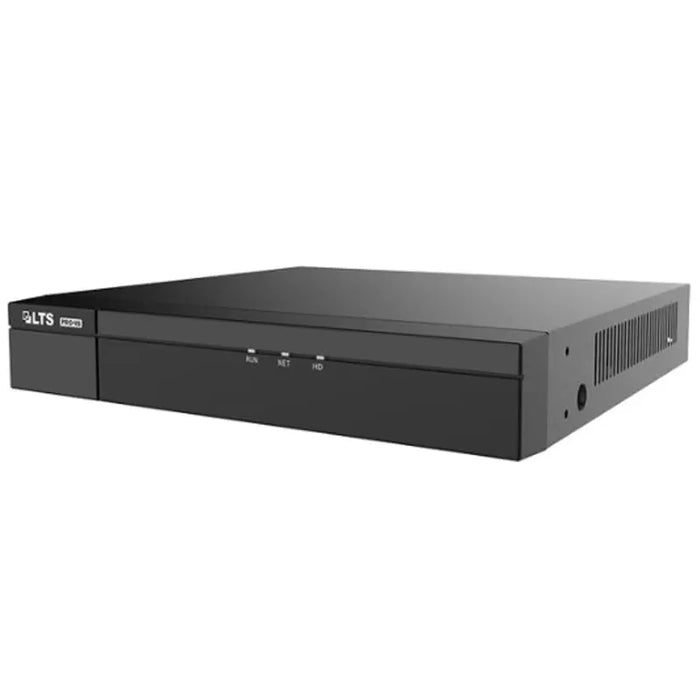

LTS VSN7104-P4 4 Channel 4K H.265 NVR with 4 Ports Built-in PoE (No HDD)

LTS VSN7104-P4 4 Channel 4K H.265 NVR with 4 Ports Built-in PoE (No HDD) LTS

Sorry, this product has been discontinued.

LTS VSN7104-P4 4 Channel 4K H.265 NVR with 4 Ports Built-in PoE (No HDD)

  • Compression : H.265, H.264, Ultra 265,
  • Pre-Installed Storage: No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 1 SATA Port
  • Max. Storage Capacity : 20 TB Storage Capacity

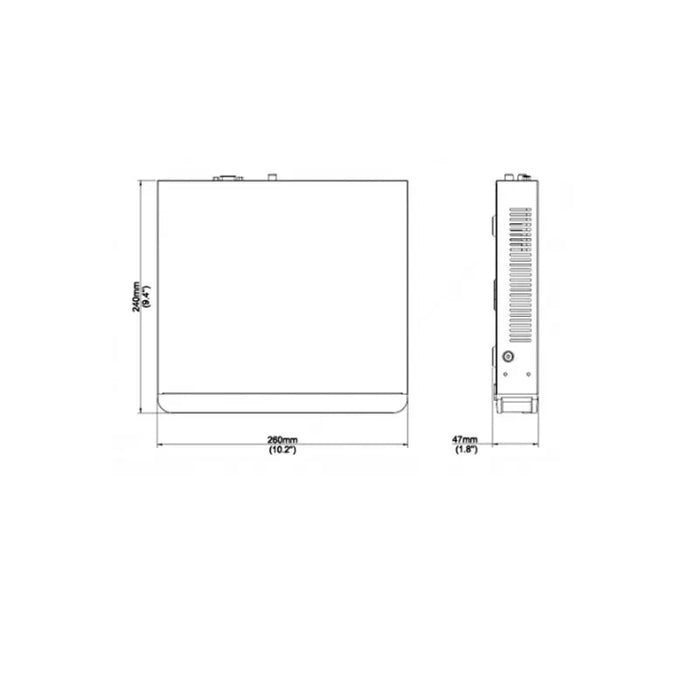

  • Dimensions : 260 x 240 x 47 mm (10.2 x 9.4 x 1.9 in)
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 4 PoE Ports
  • Power Budget : 54 Watt


This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core. Hard drive not included

HDD Storage Sold Separately:
‚ÄĘ 1TB Surveillance HDD
‚ÄĘ 2TB Surveillance HDD

Features:

  • Video Input: 4CH IP@80Mbps
  • HDD Options available
  • NDAA Compliant
  • Video Output: HDMI up to 4K(3840 x 2160) / VGA up to 1080P
  • Max. Recording Resolution: Up to 8MP(3840 x 2160)
  • Decoding Format: H.265/H.264
  • Decoding Capability: 1CH@4K / 4CH@1080P
  • Max. Playback Resolution: Up to 8MP(3840 x 2160)
  • Audio In/Out: 1CH/1CH, RCA
  • Built-in PoE: 4CH
  • Network: 10/100M, 1 RJ45
  • Storage: 1 SATA up to 10TB
  • Backup: 1 USB 2.0, 1 USB 3.0
  • Dimensions: 10.2”(W)x9.4”(D)x1.9”(H)
  • Recorder Case: mini 1U

Specification:

Video/Audio Input

  • IP Video Input: 4-ch
  • Two-way Audio Input: 1-ch, RCA

Network

  • Incoming Bandwidth: 80Mbps
  • Outgoing Bandwidth: 64Mbps
  • Remote Users: 128
  • Protocols: P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

  • HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • Recording Resolution: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Audio Output: 1-ch, RCA
  • Synchronous Playback: 4-ch
  • Corridor Mode Screen: 3/4

Decoding

  • Decoding format: Ultra265/H.265/H.264
  • Liveview/Playback: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Capability: 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30

Hard Disk

  • SATA: 1 SATA interfaces
  • Capacity: Up to 10TB for each disk

Smart

  • VCA Detection: Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed
  • VCA Search: Face search, Behavior search
  • Statistical Analysis: People counting

External Interface

  • Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
  • USB Interface: Rear panel: 1 x USB2.0, 1 x USB3.0

PoE

  • Interface: 4 independent 100Mbps PoE network interfaces
  • Max Power: Max 30W for single port / Max 54W in total (13.5W for each)
  • Supported Standard: IEEE 802.3at, IEEE 802.3af

General

  • Power Supply: 48V DC; Power Consumption: ≤9 W (without HDD)
  • Working Environment: -10℃ ~ + 55℃ (+14℉ ~ +131℉), Humidity ≤ 90% RH (non-condensing)
  • Dimensions (W×D×H): 260mm x 240mm x 47mm (10.2"x9.4"x1.9")
  • Weight (without HDD): 1kg (2.20 lb)
