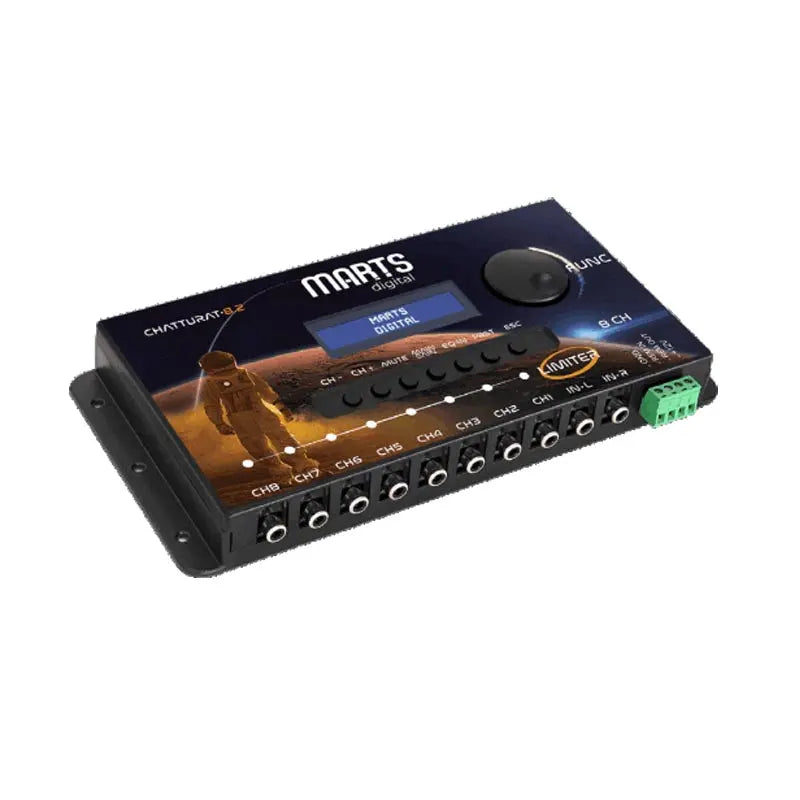

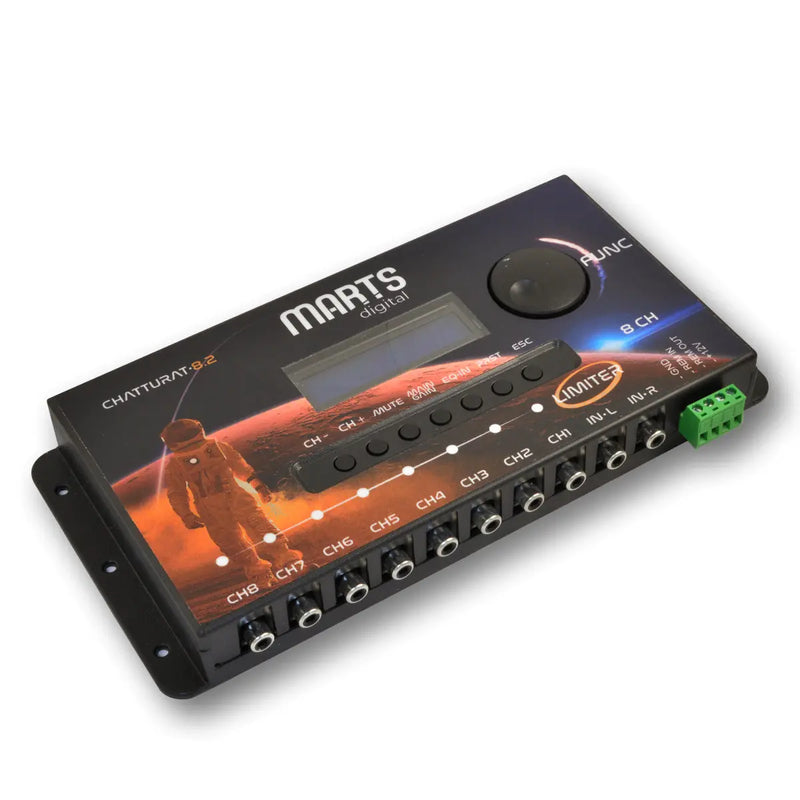

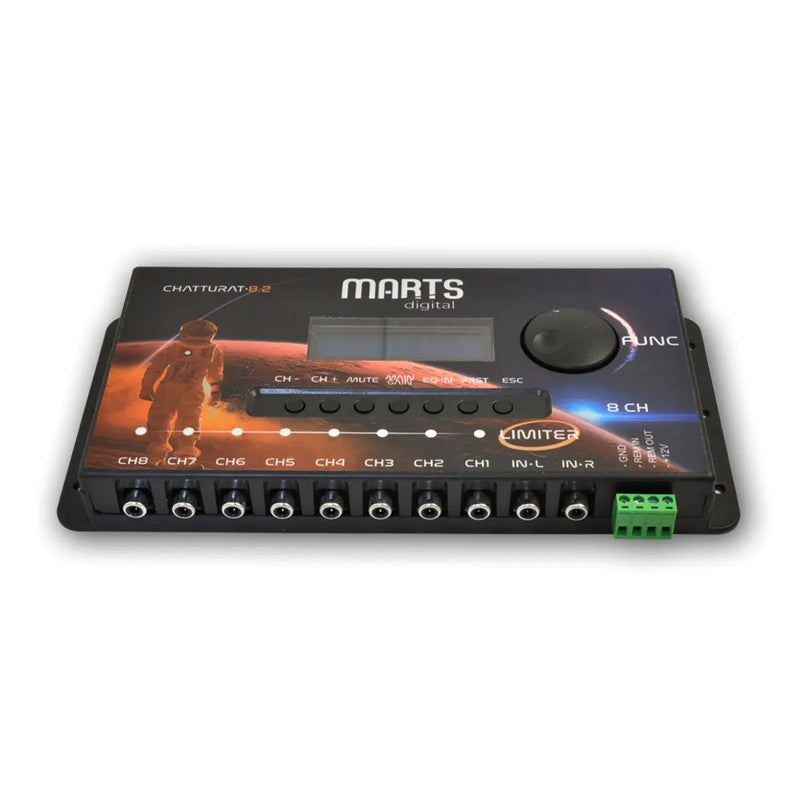

8-Channel Processor 15 Bands Parametric Equalizer Digital EQ with Bluetooth Interface

Sorry, this product has been discontinued.

8-Channel Processor 15 Bands Parametric Equalizer Digital EQ

Much more security for your sound project, the Digital Voltmeter ensures the measurement of the battery voltage, identifying the variations that can cause burning or damage to equipment.

Through a didactic and intuitive interface, it is possible to do all the processor's configurations from Marts Digital by smartphone or tablet, so making it easy the system alignment, it can be done on the front from your audio system on real-time.


  • 2 Inputs RCA (Chatturat 8.2)
  • 8 Independent Outputs
  • Routing Channels
  • Input equalizer with 15 bands between 1/3 octave
  • Parametric equalizer with 3 independent bands per channel.
  • Crossover with filters: Butterworth, Linkwitz-Riley and Bessel with attenuation from 6dB/8a
  • Independent Delay per channel
  • Automatic or manual Limiter function with Threshold, attack and decay
  • Polarity Inversion
  • Input gain adjustable
  • Independent Mute per channel
  • Pink-Noise generator
  • User's password
  • Preset with configurations
  • Independent output gain per channel
  • remote output with 300mA max
  • Operation Voltage 9V~16Vdc
  • Bluetooth interface available on Connect Version



  • Kind: Unbalanced
  • Connection: RCA
  • Input max level: 4Vpp(1,4Vrma)
  • Input impedance: 47k

Outputs (1,2,3,4,5,6,)

  • Kind: Unbalanced
  • Connection: Rca
  • Input max level 10Vpp (3,5 Vrms)
  • Input impedance: 470

Technical Information

  • Resolution: 24 Bits
  • Sample frequency: 48Khz
  • Latency frequency 1,08ms
  • Range frequency: 15hz a 22KHz (-1db)
  • THD+N max: 0,01%
  • Signal Noise Ration: 100dB

Power Supply

  • Voltage 10 ~ 15Vdc
  • Consumption: 300mA (5w)
  • Fuse: 2 A
