MB Quart FSB216 Formula Series 6.5" Component Speaker System 140 Watt (pair)

Out of Stock
$61.19
Condition: NEW
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)

California customers:
Please click here for your Proposition 65 warning.

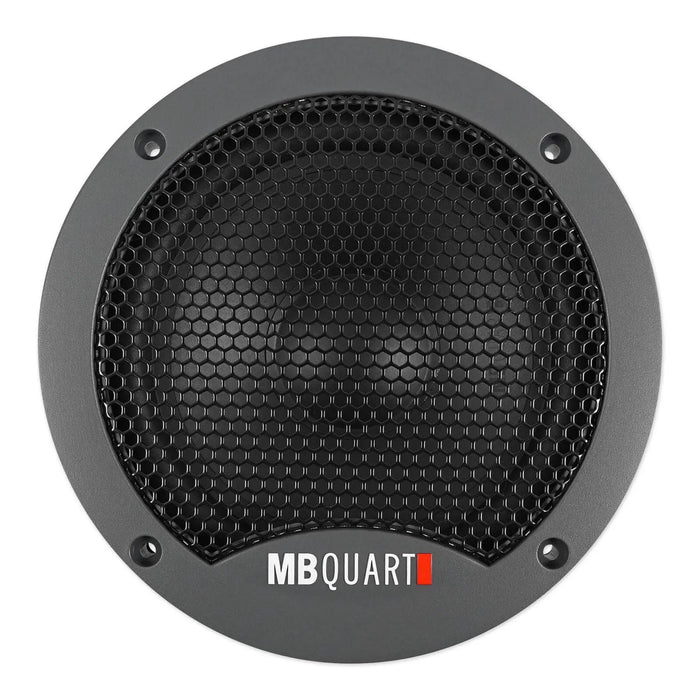

MB Quart FSB216 Formula Series 6.5" Component Speaker System (pair)

The ideal balance of a high end audio system requires the perfect mix of tone, deep bass impact and undistorted power. With MB Quart we make it simple to develop the impeccable Formula for a great-sounding system. The Formula 6.5 inch component speakers feature an aluminum dome Widesphere™ tweeter for crystal clear highs with a lightweight thermal formed poly cone. The sound profile that the system develops through the Cauer topology Butterworth filter crossover is nothing short of amazing.

Features:

  • TWEETER DOME MATERIAL
    Aluminum dome tweeters deliver great sound with increased reliability.
  • SPEAKER SURROUND
    Butyl rubber surrounds provide durability and deeper mid-bass impact.
  • CONE MATERIAL
    Lightweight thermal-formed polypropylene cones enable a faster midrange response.
  • SURROUND / CONE COUPLING
    The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather.
  • GASKET
    A textured ABS gasket assures a rigid linear seal to the mounting surface.
  • TINSEL LEADS
    Highly conductive while remaining flexible during high-power applications.
  • VOICE COIL
    Pure Copper voice coil creates a strong magnetic field with a very thin extrusion.
  • VOICE COIL FORMER
    Kapton voice coil former is lightweight and efficiently dissipates heat.
  • SPIDER
    Natural fiber allows flexibility while the infused epoxy gives strength during the manufacturing process.
  • COOLING SYSTEM
    Over-coil cooling system allows air exchange over the voice coil through the spider.

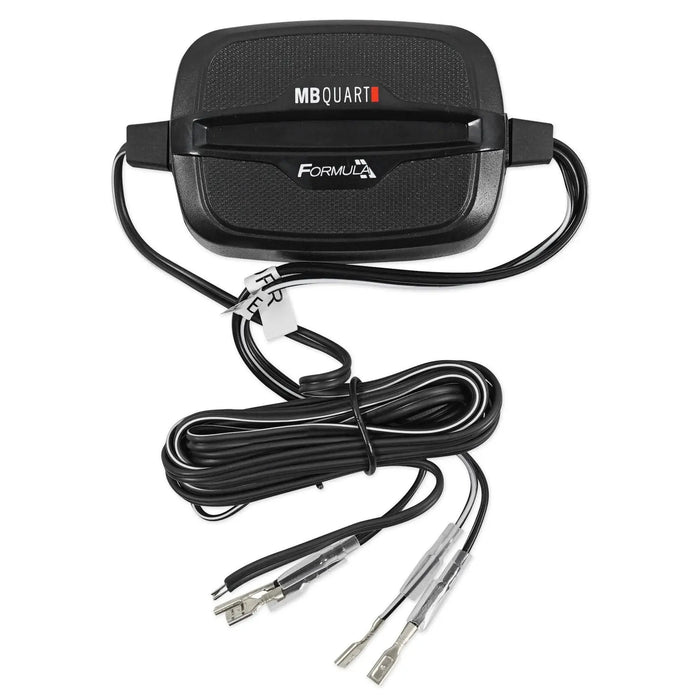

  • EXTERNAL COMPONENT CROSSOVER
    External Passive Cauer topology Butterworth filter crossover for a smooth transition of frequencies from midrange/midbass to the tweeter element designed into a compact crossover housing that can be easily hidden in the installation.
  • FRAME
    Heavy gauge progressive-die stamped steel frames for ultimate rigidity.
  • MOTOR
    Ferrite magnet motor creates a strong magnetic field while remaining small enough to fit nearly every application.
  • CONNECTORS
    Use spade connectors or solder direct for the best connection.

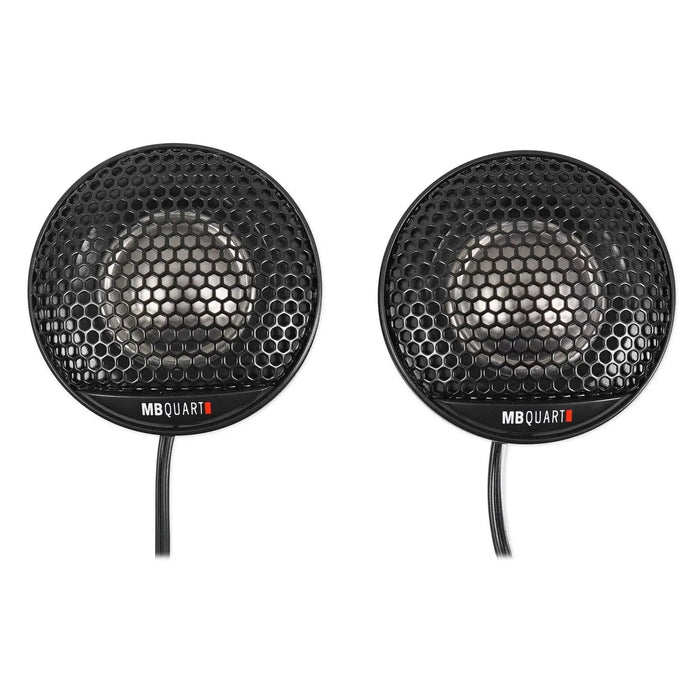

  • TWEETERS
    Large component tweeters produce clear highs while handling plenty of power without sound harsh.

Specifications:

  • RMS POWER HANDLING
    70 Watts
  • PEAK POWER HANDLING
    140 Watts
  • SPEAKER IMPEDANCE
    4 Ohms
  • FREQUENCY RESPONSE
    55Hz - 20kHz
  • SENSITIVITY
    88dB
  • CROSSOVER POINT
    2kHz
  • CROSSOVER SLOPE
    12dB
  • MOUNTING DIAMETER / CUT OUT
    5.59
  • OUTSIDE DIAMETER
    7.01
  • MOUNTING DEPTH / CHASSIS DEPTH
    2.12
