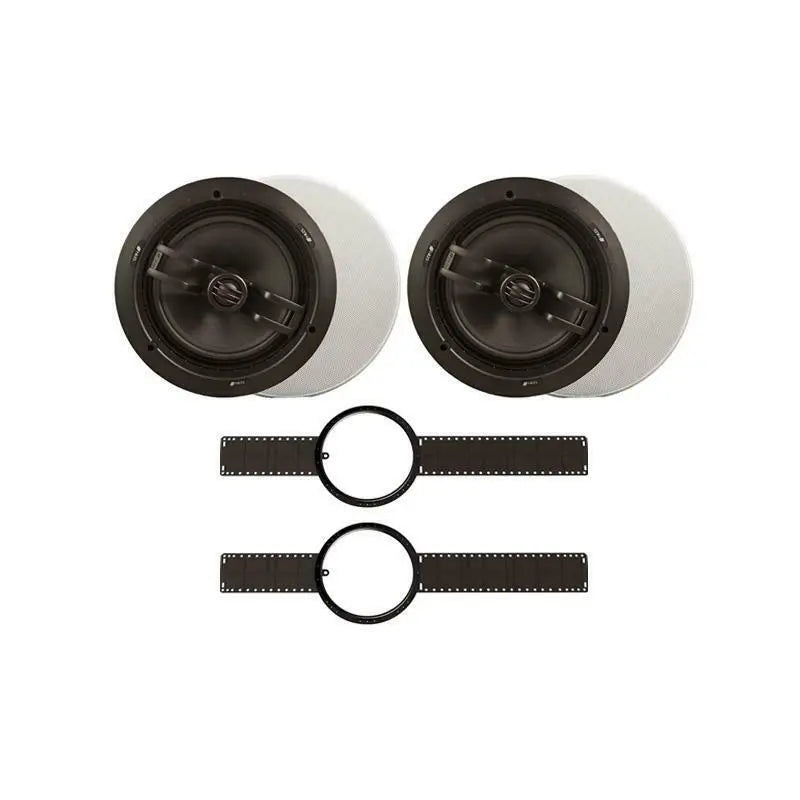

Niles CM8MP 8" 2-Way In-Ceiling Speakers + Free Brackets (2/Pack)

by Niles
Out of Stock
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)

California customers:
Please click here for your Proposition 65 warning.

Niles CM8MP 8" 2-Way In-Ceiling Loud Speaker w/ Pivot Tweeter + Free Bracket 2/Pk

MPN: 2 x CM8MP + NCB8C
Condition: New

For Multi-Purpose Applications and non-primary listening areas
For Left/Center/Right Ceiling Mount Loudspeaker
8" polypropylene woofer
Butyl rubber surround
3/4" fluid-cooled ultra-wide dispersion Kaladex tweeter in a custom pivoting coaxial enclosure
Proprietary bridge-mounted tweeter-adjustment mechanism
Magnetically attached, rust-resistant grille
Low profile look
Weather resistant construction

Caution: Be very careful not to saw through existing wires, pipes or structure. If you feel extra resistance as you are cutting, STOP.

Woofer: 8" Black Glass Fiber Tight Weave woofer cone
Woofer Size: 8"
Tweeter/Midrange: 1" Ultra Silk
Tweeter Adjustment: Up to 20° pivot angle
Sensitivity: 89dB for 2.83 volts of Pink Noise
Frequency Response: 55Hz to 20kHz, +/- 3dB (on axis)
Recommended Amplifier Power: 5-100 watts per channel
Normal Impedance: 8 ohm nominal; 6 ohm minimum
Overall Exterior Frame Dimensions: 10-5/8" diameter
Depth Behind Wall: 3-3/4" deep (based on 1/2" drywall)
Hole Cutout Dimensions: 9 3/4" (24.8 cm)

Wiring Requirements (sold separately)
16 to 18 gauge stranded wire for up to 80 feet
14 gauge stranded wire for up to 200 feet
Connectors accommodate 12 to 18 gauge stranded wire

Tools required (sold separately)
Cordless screwdriver
Measuring tape
Painters tape
One inch #2 Phillips tip
Stud finder
Drop cloth
1/8" Drill bit
Optional - a 24" x 24" piece of R19 insulation
Drywall saw
Wire stripper
Laser plumb bob
Cable ties
12" - 14" Coat hanger wire

(2) Niles CM8MP Loudspeaker
(2) Magnetically attached round grill
(2) Hole template with painting standoffs
(2) Bracket
