Niles CM8MP 8-in 2-Way In-Ceiling Multi-Purpose Loudspeaker
- Description
- Specs/Features
- Files and Documents
- FAQ
- Proposition 65
Description

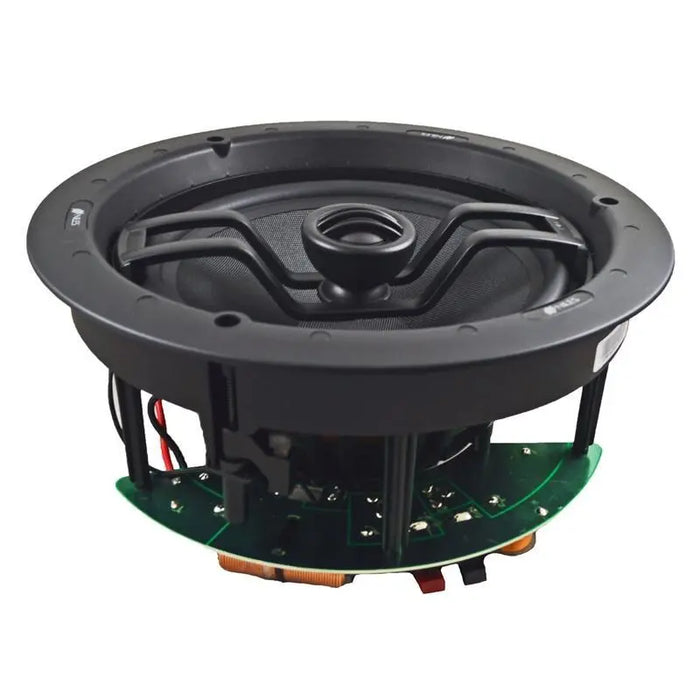

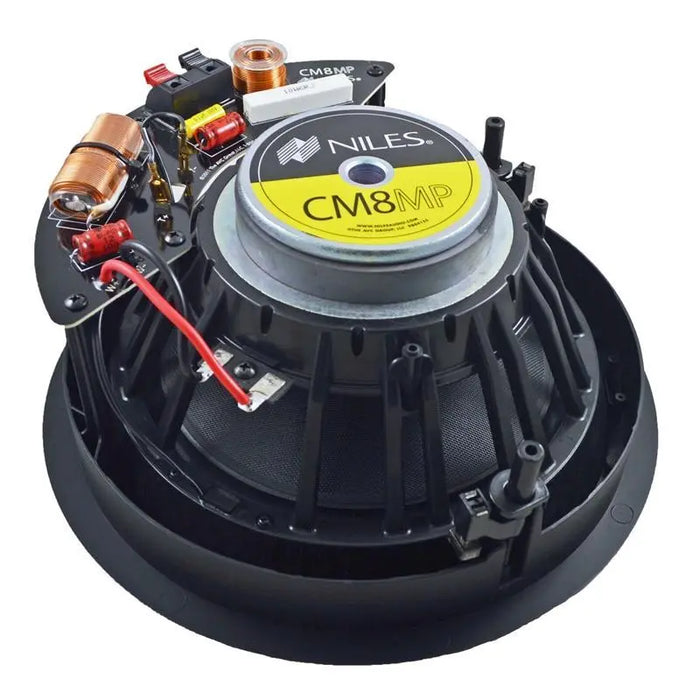

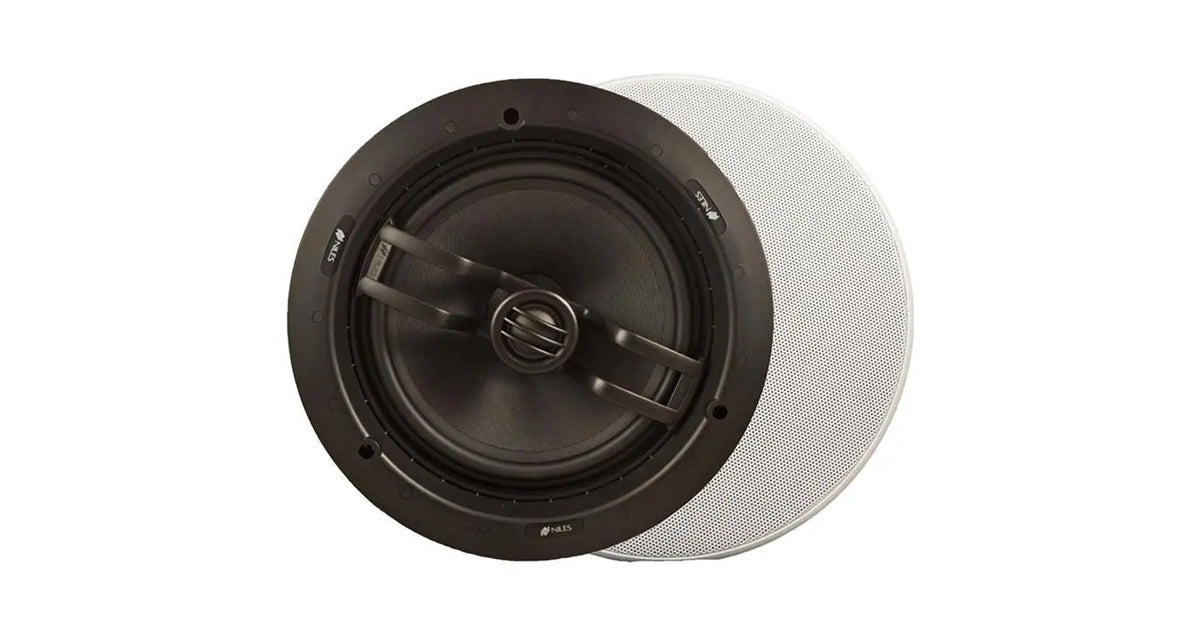

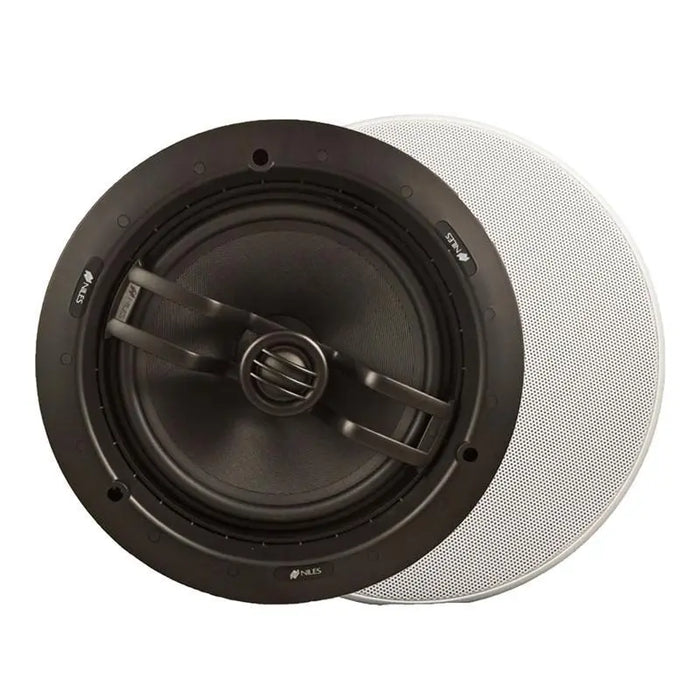

Niles CM8MP 8-in 2-Way In-Ceiling Multi-Purpose Loudspeaker
For Multi-Purpose Applications and non-primary listening areas
For Left/Center/Right Ceiling Mount Loudspeaker
8" polypropylene woofer
Butyl rubber surround
3/4" fluid-cooled ultra-wide dispersion Kaladex tweeter in a custom pivoting coaxial enclosure
Proprietary bridge-mounted tweeter-adjustment mechanism
Magnetically attached, rust-resistant grille
Low profile look
Weather-resistant construction
Caution: Be very careful not to saw through existing wires, pipes or structure. If you feel extra resistance as you are cutting, STOP.
For Multi-Purpose Applications and non-primary listening areas
For Left/Center/Right Ceiling Mount Loudspeaker
8" polypropylene woofer
Butyl rubber surround
3/4" fluid-cooled ultra-wide dispersion Kaladex tweeter in a custom pivoting coaxial enclosure
Proprietary bridge-mounted tweeter-adjustment mechanism
Magnetically attached, rust-resistant grille
Low profile look
Weather-resistant construction
Caution: Be very careful not to saw through existing wires, pipes or structure. If you feel extra resistance as you are cutting, STOP.
Specs/Features
Specifications:
- Woofer: 8” Black Glass Fiber Tight Weave woofer cone
- Woofer Size: 8 (Inches)
- Tweeter/Midrange: 1” Ultra Silk
- Tweeter Adjustment: Up to 20° pivot angle
- Sensitivity: 89dB for 2.83 volts of Pink Noise
- Frequency Response: 55Hz to 20kHz, +/- 3dB (on axis)
- Recommended Amplifier Power: 5-100 watts per channel
- Normal Impedance: 8 ohm nominal; 6 ohm minimum
- Overall Exterior Frame Dimensions: 10-5/8" diameter
- Depth Behind Wall: 3-3/4" deep (based on 1/2" drywall)
- Hole Cutout Dimensions: 9 3/4" (24.8 cm)
Wiring Requirements (sold separately):
- 16 to 18 gauge stranded wire for up to 80 feet
- 14 gauge stranded wire for up to 200 feet.
- Connectors accommodate 12 to 18 gauge stranded wire.
Tools required (sold separately):
- Cordless screwdriver
- Measuring tape
- Painters tape
- One inch #2 Phillips tip
- Stud finder
- Drop cloth
- 1/8” Drill bit
- Spackle
- Optional - a 24” x 24” piece of R19 insulation
- Drywall saw
- Wire stripper
- Laser plumb bob
- Cable ties
- 12” -14” Coat hanger wire
- Pencil
What's in the box:
- (1) Niles CM8MP Loudspeaker
- (1) Magnetically attached round grill
- (1) Hole template with painting standoffs
