Niles CSF55A Cynema Soundfield 55" 100W 3-Channel In-wall Home Theater Sound Bar
- Description
- Specs/Features
- Files and Documents
- FAQ
- Proposition 65
Description
Niles CSF55A Cynema™ Soundfield 55"-Wide Powered 100W 3-Channel In-Wall Active Sound Bar
The Niles Audio Cynema Soundfield System is the first in-wall soundbar that installs flush below your wall-mounted flat panel TV. The CSF55a is a powered system that includes a digital amplifier and three self-contained speaker modules (for left, center, and right channels). The amplifier and speaker modules tuck down into the wall cavity between the studs, and can be adjusted along the mounting rails for best separation. The system comes with a flush-mount grille for a seamless look.
Product highlights:
- engaging home theater sound with a space-saving, in-wall design
- uses three sealed, passive loudspeaker modules with two 2" x 3" poly cone woofers and a 1" silk dome tweeter each
- adjustable speaker spacing allows for ideal placement of left, center, and right channel speakers in any existing wall stud configuration — no cutting or drilling of studs required
- digital in-wall amplifier module provides power for all three speaker modules (30 watts RMS x 3)
- separate flush-mounted DC power supply sends low-voltage DC power through wall to amplifier module
- Dolby® signal processing for clear sound
- easily connects to a powered subwoofer with the Niles wireless subwoofer system (SW-T & SW-R sold separately)
- compatible with a whole house distributed audio system (TV sound always takes priority when the TV is turned on)
- auto-sensing power on; signal-detecting automatic input source selection
- frequency response: 65-25,000 Hz
- grille dimensions: 55"W x 5-1/4"H
- cutout dimensions: 52-1/4"W x 3-3/4"H
- mounting depth: 3-1/2" (measured from interior face of drywall), plus 3" clearance inside wall below bottom mounting rail
- requires AC power

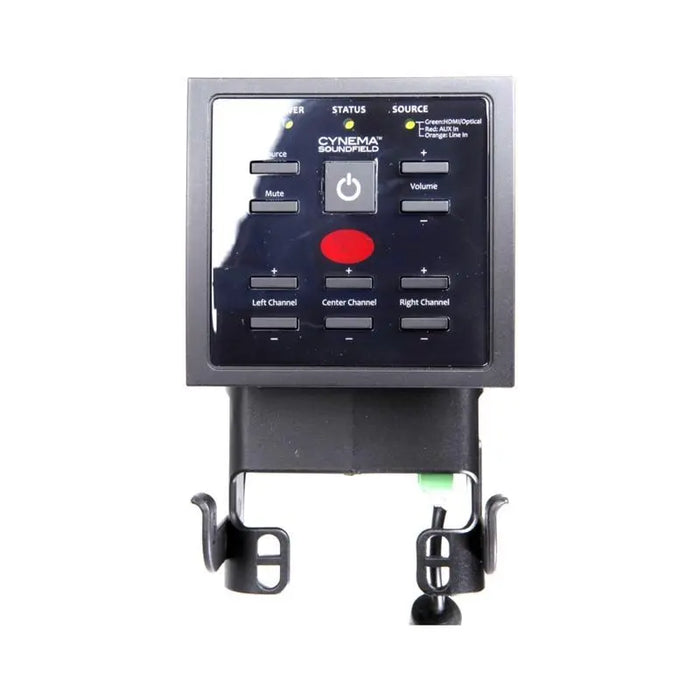

Amplifier Module Connections:
- Left, Center, Right speaker outputs
- 1 HDMI input; 1 HDMI output (pass-through)
- 1 Toslink optical digital audio input
- 1 stereo line input (3.5mm)
- Aux stereo input (3.5mm)
- external IR receiver input
- mono RCA subwoofer output for adding a powered subwoofer (not included)
- power output for optional Niles SW-T wireless subwoofer transmitter (DC power cable included)
The Niles Audio Cynema Soundfield System is the first in-wall soundbar that installs flush below your wall-mounted flat panel TV. The CSF55a is a powered system that includes a digital amplifier and three self-contained speaker modules (for left, center, and right channels). The amplifier and speaker modules tuck down into the wall cavity between the studs, and can be adjusted along the mounting rails for best separation. The system comes with a flush-mount grille for a seamless look.
Product highlights:
- engaging home theater sound with a space-saving, in-wall design
- uses three sealed, passive loudspeaker modules with two 2" x 3" poly cone woofers and a 1" silk dome tweeter each
- adjustable speaker spacing allows for ideal placement of left, center, and right channel speakers in any existing wall stud configuration — no cutting or drilling of studs required
- digital in-wall amplifier module provides power for all three speaker modules (30 watts RMS x 3)
- separate flush-mounted DC power supply sends low-voltage DC power through wall to amplifier module
- Dolby® signal processing for clear sound
- easily connects to a powered subwoofer with the Niles wireless subwoofer system (SW-T & SW-R sold separately)
- compatible with a whole house distributed audio system (TV sound always takes priority when the TV is turned on)
- auto-sensing power on; signal-detecting automatic input source selection
- frequency response: 65-25,000 Hz
- grille dimensions: 55"W x 5-1/4"H
- cutout dimensions: 52-1/4"W x 3-3/4"H
- mounting depth: 3-1/2" (measured from interior face of drywall), plus 3" clearance inside wall below bottom mounting rail
- requires AC power

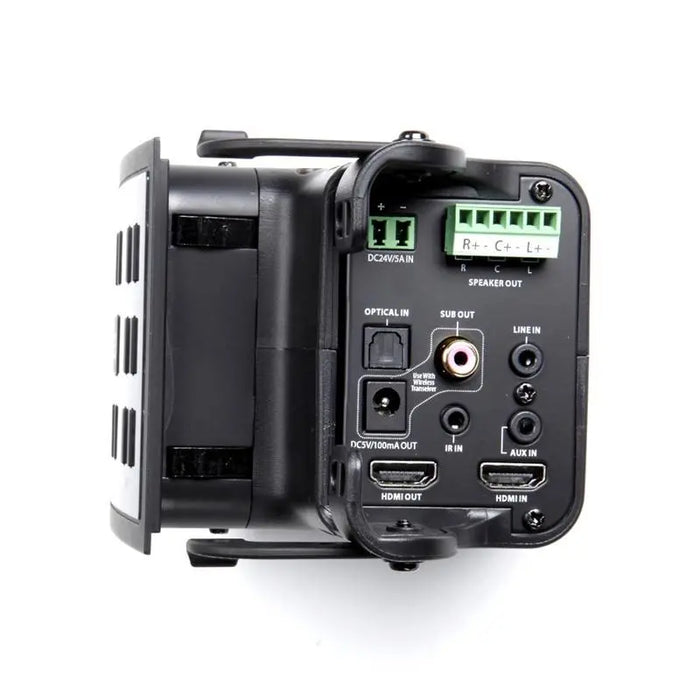

Amplifier Module Connections:
- Left, Center, Right speaker outputs
- 1 HDMI input; 1 HDMI output (pass-through)
- 1 Toslink optical digital audio input
- 1 stereo line input (3.5mm)
- Aux stereo input (3.5mm)
- external IR receiver input
- mono RCA subwoofer output for adding a powered subwoofer (not included)
- power output for optional Niles SW-T wireless subwoofer transmitter (DC power cable included)
Specs/Features
SPECIFICATIONS:

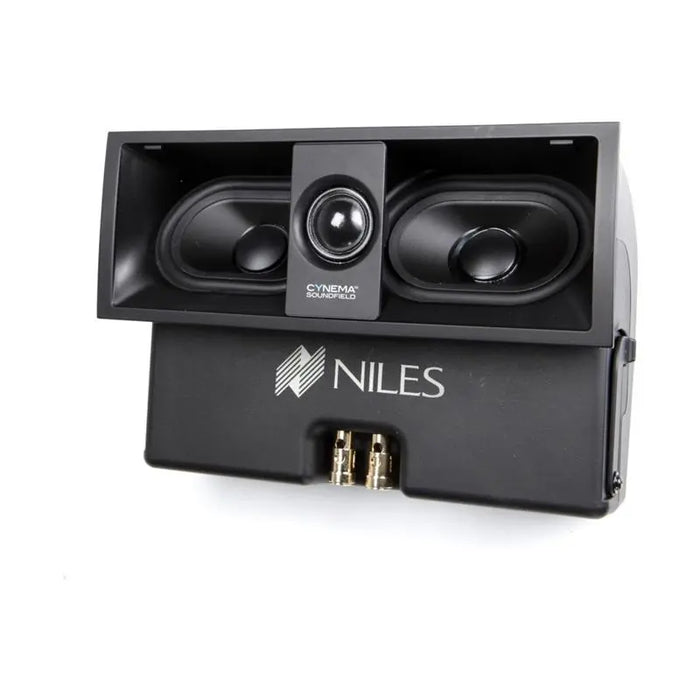

Loudspeaker Module
Overall Dimension: 9-5/8” L x 4” D x 6-1/2” H (24.4cm L x 10.2cm D x 16.5cm H)
Wiring: Impedance- Nominal 6ohms
Sensitivity: 86 dB, 1kHz @ 1W/1m
Max SPL: 105dB (LCR system)
Frequency Response 65Hz – 25kHz
Power Handling Capability: 100 Watts
Amplifier Module
Output Power: 30W RMS x 3
Frequency response: 100Hz to 20kHz, +0dB/-3dB or better
Channel Separation: (channel to channel crosstalk) @ 1kHz >70dB or better
Signal to Noise: 100Hz to 20kHz un-weighted >75dB or better based on Rated Power
Power Supply
AC Input: 100-240V~2.5A, 50-60Hz
DC Output: 24V 3.75A Max. & 90W Max.
Installation Dimensions
Frame Dimensions (with grille): 5-1/4" H x 55" W (13.35 cm x 139.70 cm)
Hole Cutout Dimensions: 3-3/4" H x 55-1/4" W (9.53 cm x 140.34 cm)
Depth Behind Wall (5/8" drywall): 3-1/2" (13.6 cm)
Files and Documents

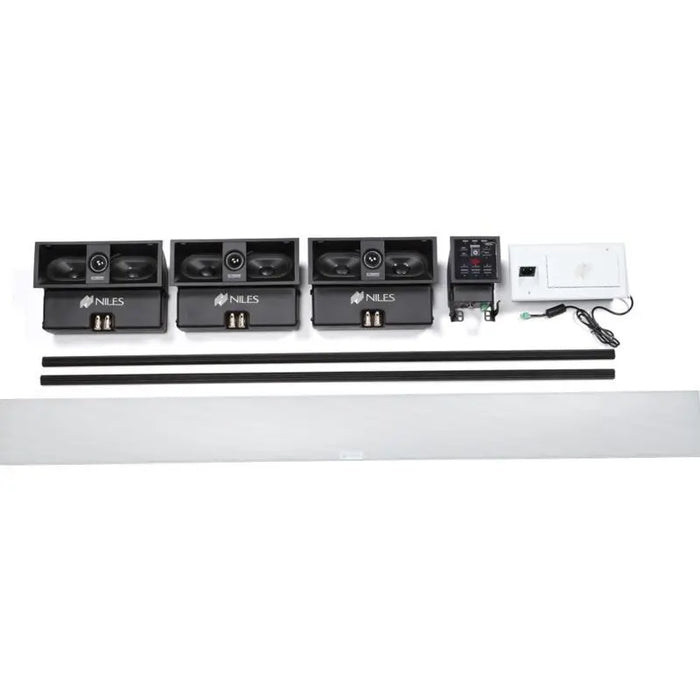

- 3 Passive in-wall speaker modules
- White grille
- Amplifier Module
- In-wall power supply with attached 3' cable
- 45" AC power cord (IEC 2-pronged)

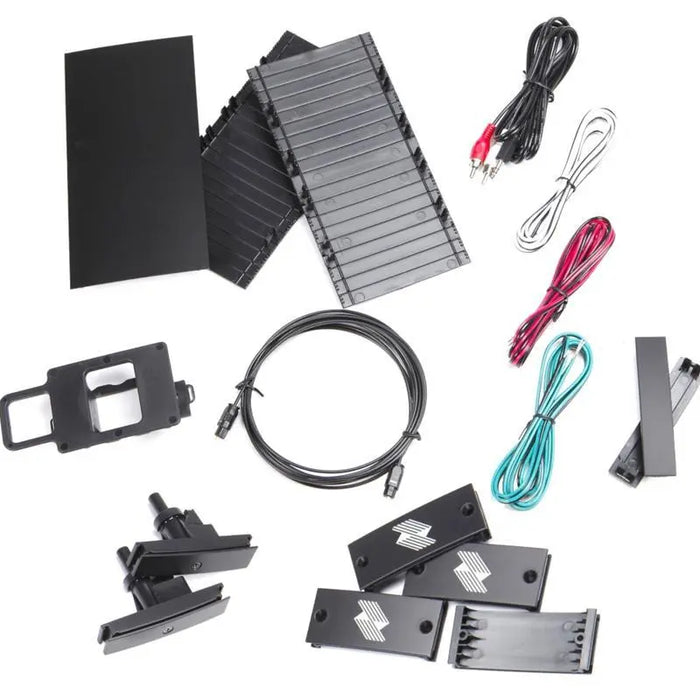

- 4 White-painted screws (for power supply)
- Two 52" rails
- 3 In-between covers
- 2 In-between joiners
- 4 Screw-down slide brackets
- 2 Clamp-down end brackets
- Niles SW-T bracket
- 5' Audio cable (Male 3.5mm on one end and male stereo RCAs on other end)
- 3-meter Optical digital cable (Toslink connectors)
- Three 59" color-coded speaker wires (18-gauge with tinned ends)
- Eight 1-1/2" self-tapping screws
- Two 4" plastic wire ties
- 2 Tape strips
- 2 Cardboard cutout templates (for speakers and power supply)
- Installation Guide
- Limited Warranty Card
