Orion HCCA5000.1DSPLX HCCA Competition Class D Monoblock Amplifier 10000 Watts Max

ORION HCCA5000.1DV2 HCCA Competition Class D Monoblock Amplifier 10000 Watts Max Orion
Availability:
Low stock
$0.00 - $0.00
$0.00
$999.95
$999.95 - $999.95
$999.95

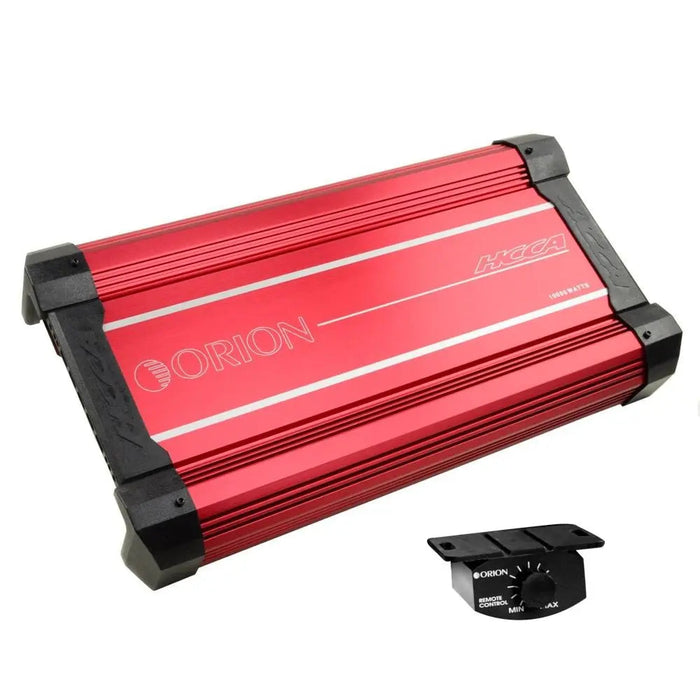

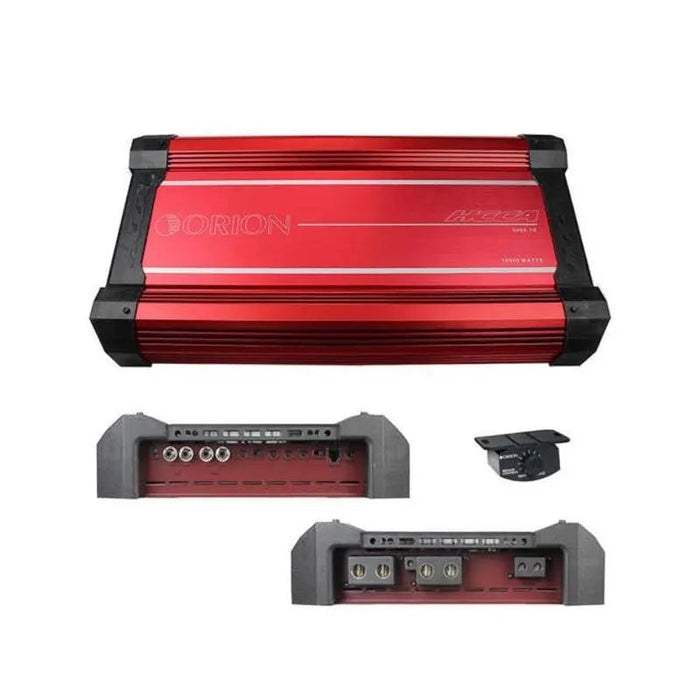

Orion HCCA5000.1DSPLX HCCA Competition Class D Monoblock Amplifier 10000 Watts Max

This is Orion's new model of the HCCA5000.1D Monoblock amplifier. This is part of their Competition series. This is a beast of a machine and made for serious audio competitors and enthusiasts. This Mono Channel amplifier is designed and crafted with the best components on the market. Built in a heavy duty rugged die-cast aluminum heatsink with great internal components. This amplifier is sure to get the job done and includes a bass knob.

  • RMS Power @ 4 Ohms MONO @ 0.5% THD 2300 Watts
  • RMS Power @ 2 Ohms MONO @ 0.5% THD 3600 Watts
  • RMS Power @ 1 Ohms MONO @ 0.5% THD 5800 Watts
  • 12dB/Octave Low-Pass Filter
  • Frequency Response: 20Hz to 250Hz
  • Low Pass Crossover: 40Hz~300Hz
  • Signal to Noise Ratio: >65dB
  • THD at 1 Watt, 4 Ohm: <0.5

All MOSFET Power Supply and Output Stage

  • Electronic Crossover Network
  • Bass Boost Circuit
  • Remote Gain Control
  • Low Pass Filter Control
  • Power and Protection LED Indicators
  • Phase Control 0~180 degree
  • Soft Turn-On / Turn-Off
  • Balanced Input (CMRR)
  • Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
  • Length (in/cm): 22.0" / 56.0
  • Height (in/cm): 3.0" / 7.7
  • Depth (in/cm): 11.8" / 30.2
  • Power Output: 2300 Watts RMS x 1 at 4 Ohms and < 1% THD+N
  • Signal to Noise Ratio: >70 dBA (reference 1 Watt into 4 Ohms
  • Additional Power: 5000 Watts RMS x 1 at 1 ohm and < 1% THD+N

Specifications


Amplifier Section

  • RMSWATIS@   4OHMMONO     @ 0.5%THD+N    2300W
  • RMSWATIS@   2OHMMONO     @ 0.5%THD+N    3600W
  • RMSWATIS@   1OHMMONO     @ 0.5%THD+N    5800W
  • Amplifier  Efficiency: > 88%
  • SignaltoNoise ratio at rated output power and lowest impedance: > 90d8
  • Remote Gain  Function: Yes
  • Distortion  at Rated Power: 0.5% THD+N
  • Frequency Response: 15 Hz to 250Hz +/- 2.5  dB
  • Linear  Bandwidth: 15  Hz to 250Hz +/-  3 dB
  • Damping  Factor: 200
  • Input Sensitivity (rms): 200mV to 8V
  • Supply Voltage  Range: 9 to 16V
  • Protection: thermal, DCoffset, short protection, under-voltage, over-voltage

WireGauge

  • Power: AWG "O"  X 2PCS
  • Remote: AWG  10
  • Ground: AWG "O"  X 2PCS
  • Speaker: AWG  4
  • Input Impedance: 24kΩ
  • Balanced input  (CMRR): Yes
  • Dimensions (inches): 19.7X11.7X2.8

Crossover  Section

  • Low Pass Crossover: Continuously  variable  (40-300Hz)
  • Phase  shift  control: 0◦ to 180◦
  • Bass  Boost: 0·18dB  variable
  • Infrasonic (subsonic) Filter: Selectable  On/Off  Octave 12dB at 25Hz
