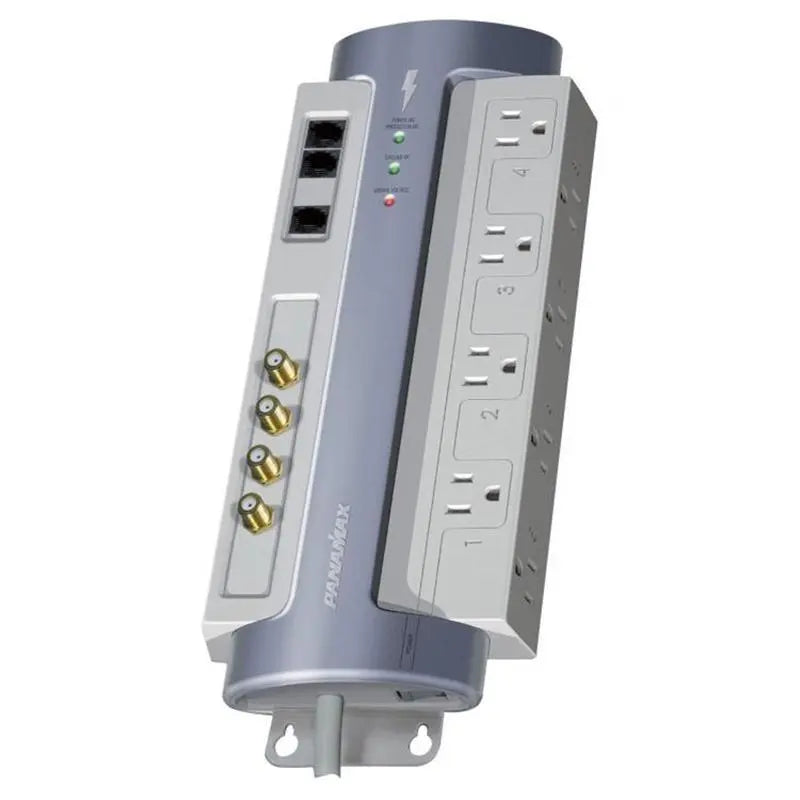

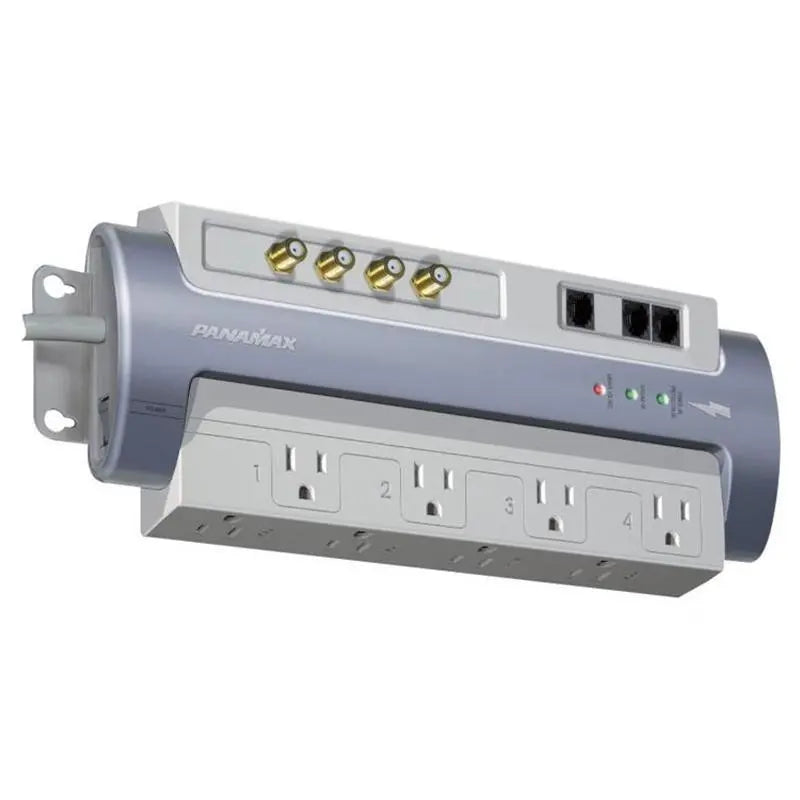

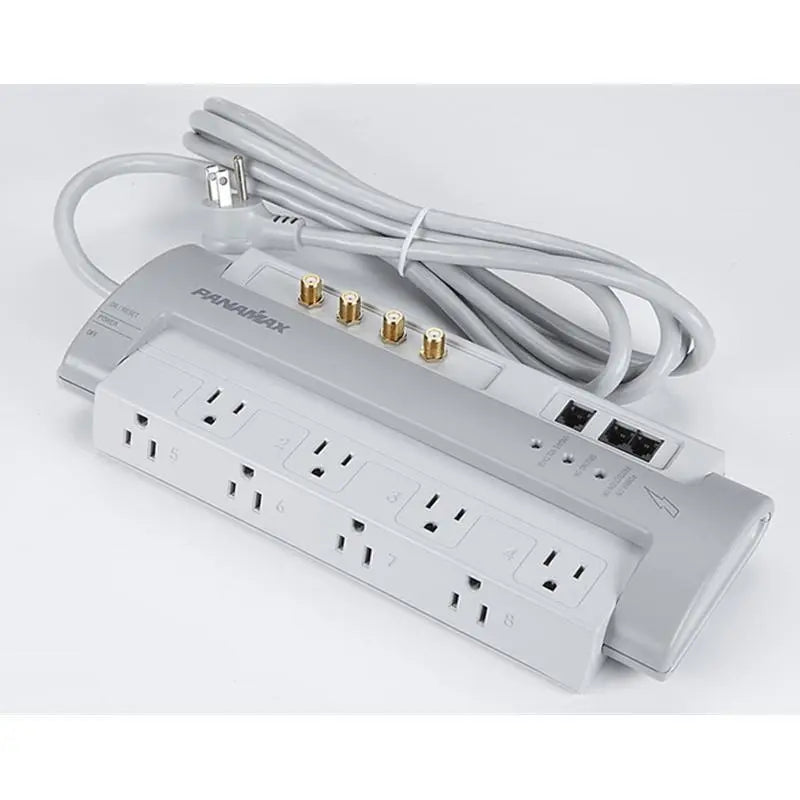

Panamax M8-AV 8 Outlet Home Theater Power Management Surge Protection

by Panamax
In Stock
$159.95
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)
Panamax M8-AV Home Theater Power Management 8 Outlet Tel Cable/Sat Surge Protect

Brand: Panamax
MPN: M8-AV
Condition: New

-Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.
-Protects equipment from electrical surges that travel over telephone lines.
-Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.
-Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
-Eight (8) filtered and surge protected outlets for all of your power needs.
-Hi-Def Designed to work with your High Definition system.

Family: Floor Models
Line Voltage: 120 (Volts)
Number of Outlets: 8
Outlet Descriptions: All 8 outlets filtered and surge protected
Control: On/Off control to all outlets through power switch.
USB Charging: N/A
Low Voltage Trigger: N/A
AC Power Cord: 6 ft. captive cord
Dimensions: 12" L x 5" W x 1.75" H (12.5" L Including brackets)
Weight: 3.5 lbs
AC Protection Technology: Protect or Disconnect Automatic Voltage Monitoring L-N, L-G, N-G Protection Modes Thermal Fusing
Automatic Voltage Shutoff: Yes
Undervoltage Shutoff: 90 VAC ± 6 VAC
Over-Voltage Shutoff: 144 VAC ± 8 VAC
Maximum Current Rating: 15 (Amps)
Initial Clamping Level: 200V Peak
Filtration Technology: RFI/EMI Filtration
Filtration Rating: 50 dB @ 100 KHz - 1 MHz
Signal Line Protection: 1 Tel, 2 Cable/Satellite
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1650 Joules
Response Time: 1ns
Peak Impulse Current: 52,000 Amps
Patented Power Management Circuit: Yes

Telco Protection:
Wires Protected: 2 wire, 1 pair (3,4)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-11
Clamping Level: 260V
Capacitance: 30 pf (approx)

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range: 0MHz - 2.2 GHz
Connections: Female "F", Gold Plated
Clamping Level: 75V
Bidirectional: Yes
