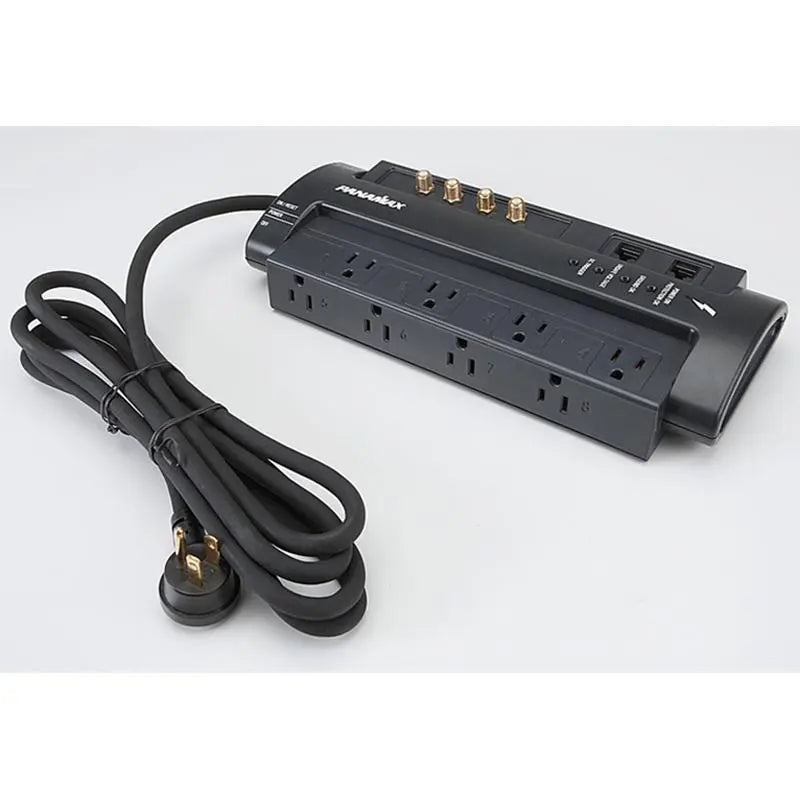

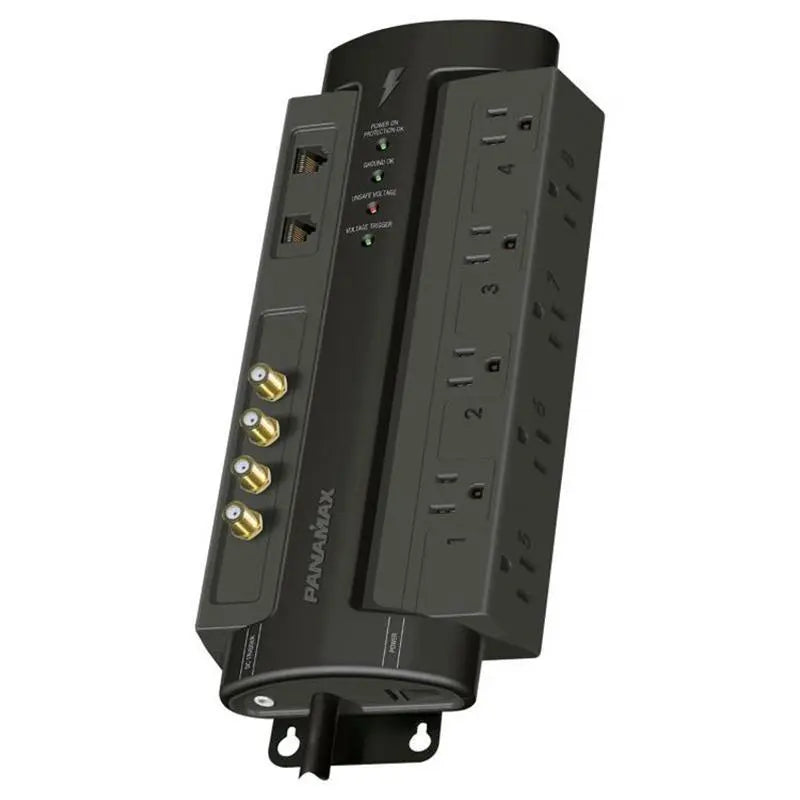

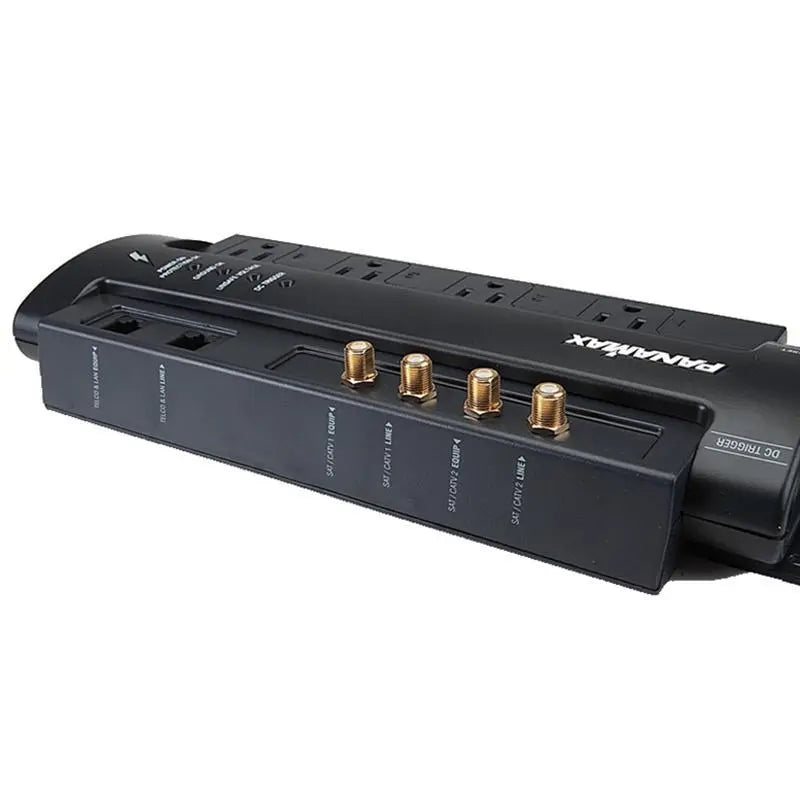

Panamax M8-AV-PRO Black Home Theater Power Management Surge Protection

Panamax M8-AV-PRO Black Home Theater Power Management Surge Protection Panamax

Sorry, this product has been discontinued.

Panamax M8-AV-PRO 8 AC Outlet Coax Tel LAN Line Surge Protect Power Management

Brand: Panamax
MPN: M8-AV-PRO
Condition: New

-Improves Picture and Sound. Provides clean power by filtering out noise common to household power.
-Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.
-Protects equipment from electrical surges that travel over Telephone and network lines.
-Protects equipment against prolonged over/ under voltages by disconnecting the power and reconnecting it when safe power returns.
-Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment
-Allows source equipment to activate or deactivate outlets 5-8 on the M8-AV-PRO.
-More outlets for all of your power needs
-Hi-Def Designed to work with your High Definition system.

Family: Floor Models
Line Voltage: 120 (Volts)
Number of Outlets: 8
Outlet Descriptions: 4 outlets filtered and surge protected, 4 surge protected high current outlets
Control: On/Off control to all outlets through power switch. The high current bank can be controlled by the low voltage trigger.
Low Voltage Trigger: 12V In
AC Power Cord: 8 ft. captive cord
Dimensions: 12" L x 5" W x 1.75" H (12.5" L Including brackets)
Weight: 3.5 lbs
AC Protection Technology: Protect or Disconnect Automatic Voltage Monitoring L-N, L-G, N-G Protection Modes Thermal Fusing
Automatic Voltage Shutoff: Yes
Undervoltage Shutoff: 90 VAC ± 6 VAC
Over-Voltage Shutoff: 142 VAC ± 8 VAC
Maximum Current Rating: 15 (Amps)
Initial Clamping Level: 200V Peak
Filtration Technology: Common Mode Filter Circuit
Filtration Rating: 50 dB(100KHz - 1MHz) 53 dB (100KHz - 1MHz)
Signal Line Protection: 1 LAN/Tel, 2 Cable/Satellite
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
UL991 Electronic Safety Circuit: Yes
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1875 Joules
Response Time: < 1n
Peak Impulse Current: 65,000 Amps
Patented Power Management Circuit: Yes

LAN Circuits
Wires Protected: Pins 1, 2, 3, & 6
Connectors: RJ-45 Shared with Telco
Connectors: Differential & Common Ground
Compatibility: 10/100bT
Clamping Level: 7V

Telco Protection
Wires Protected: 2 wire, 1 pair (4,5)
Suppression Modes: Metallic & Longitudinal
Fuseless / Auto-reseting: Yes
Connectors: RJ-45 Shared with LAN
Clamping Level: 260V
Capacitance: 30pf (approx.)

Universal Coaxial Protection
Shielded: Yes
Insertion Loss: < 0.5 dB
Frequency Range5MHz - 2 GHz
Connections: Female "F", Gold Plated
Clamping Level: 75V
Bidirectional: Yes
