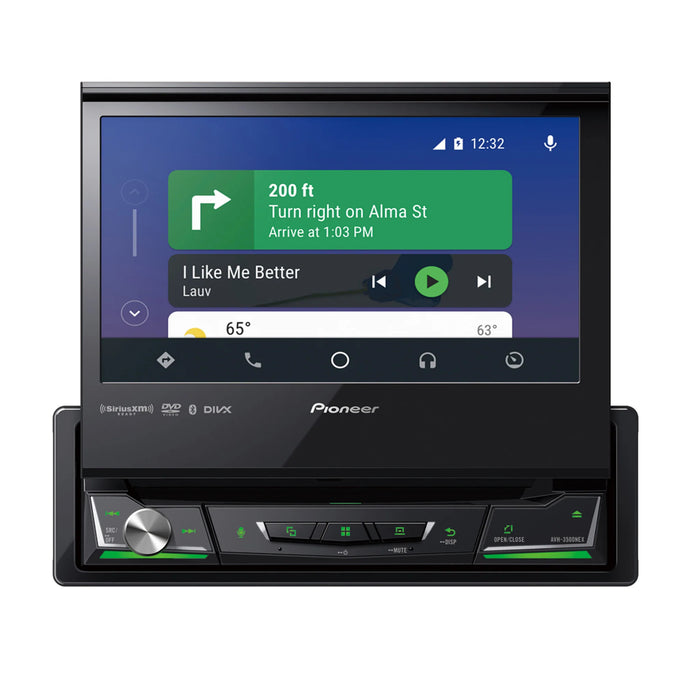

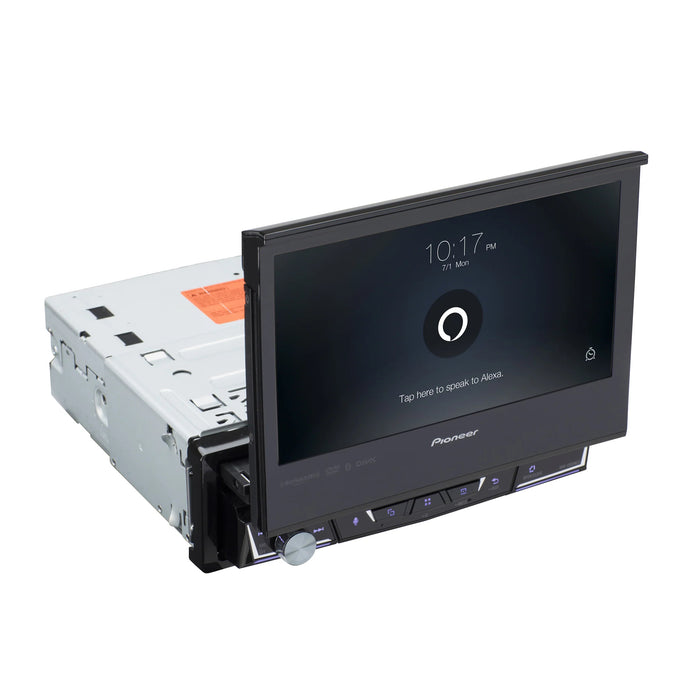

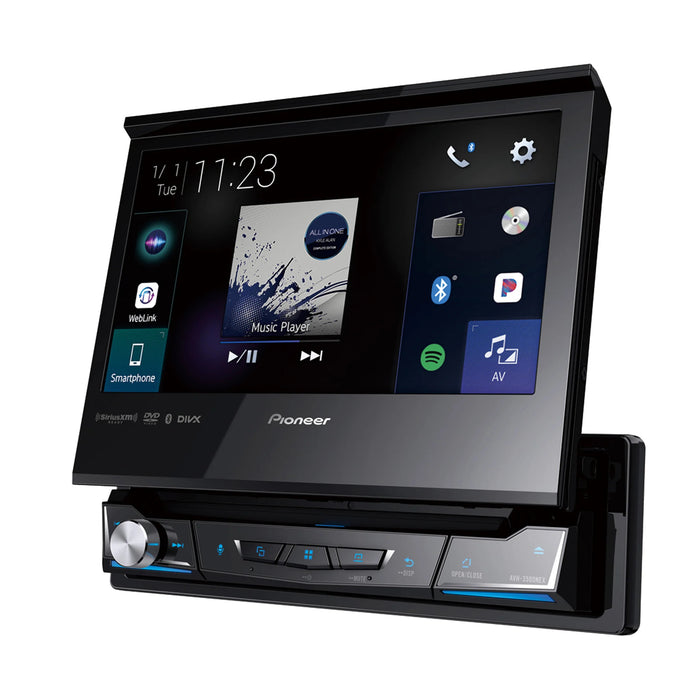

Pioneer AVH-3500NEX Single DIN 7" Touchscreen Flip Out DVD/CD Receiver with CarPlay and Android Auto

Pioneer AVH-3500NEX Single DIN 7" Touchscreen Flip Out DVD/CD Receiver with CarPlay and Android Auto
Availability:
Out of stock
Sold out
$699.99 - $699.99
$699.99
$699.99 - $699.99
$699.99

Pioneer AVH-3500NEX Single DIN 7" Flip Out Touchscreen DVD/CD Receiver with CarPlay and Android Auto, Bluetooth, USB, SiriusXM Ready

The Pioneer AVH-3500NEX DVD Receiver is a versatile in-dash multimedia system designed to enhance your driving experience. It features a 7" motorized touchscreen that integrates seamlessly with your smartphone, offering easy access to navigation, music, and more through Apple CarPlay and Android Auto. With built-in Bluetooth for hands-free calling and audio streaming, it ensures a safe and connected drive. The receiver supports high-res FLAC audio, Pandora, and SiriusXM, providing superior sound quality. Additionally, it includes a back-up camera input for enhanced safety and a customizable 13-band graphic equalizer for personalized audio settings. Enjoy a smarter, safer, and more enjoyable ride with the Pioneer AVH-3500NEX.

  • Apple CarPlay Compatible
  • WebLink Compatible
  • Navigation Ready
  • Works with Pandora, and SiriusXM Ready
  • Selectable Parking Assist Guidelines

General

  • Rated power source: 14.4 V DC (10.8 V to 15.1 V allowable)
  • Grounding system: Negative type
  • Maximum current consumption: 10.0 A
  • Dimensions (W × H × D):
  • DIN Chassis: 178 mm × 50 mm × 160 mm (7 in. × 2 in. × 6-1/4 in.)
  • Nose: 188 mm × 58 mm × 32 mm (7-3/8 in. × 2-1/4 in. × 1-1/4 in.) D
  • Chassis: 178 mm × 50 mm × 165 mm (7 in. x 2 in. x 6-1/2in.)
  • Nose: 170 mm × 46 mm × 27 mm (6-3/4 in. × 1-3/4 in. × 1 in.)
  • Weight: 1.9 kg (4.2 lbs)

Display

  • Screen size/aspect ratio: 7.0 inch wide/16:9 (effective display area: 154.1 mm × 85.9 mm) (6-1/8 in. × 3-3/8 in.)
  • Pixels: 1 152 000 (2 400 × 480)
  • Display method: TFT Active matrix driving
  • Color system: PAL/NTSC/PAL-M/PAL-N/SECAM compatible
  • Temperature range: -10 ˚C to +60 ˚C (+14 ˚F to +140 ˚F)

Audio

  • Maximum power output:
  • • 50 W × 4
  • • 50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for subwoofer)
  • Continuous power output: 22 W × 4 (50 Hz to 15 kHz, 5 %THD, 4 Ω LOAD, Both Channels Driven)
  • Load impedance: 4 Ω (4 Ω to 8 Ω [2 Ω for 1 ch] allowable) Preout output level (max): 4.0 V
  • Equalizer (13-Band Graphic Equalizer):
  • Frequency: 50 Hz/80 Hz/125 Hz/200 Hz/315 Hz/ 500 Hz/800 Hz/1.25 kHz/2 kHz/3.15 kHz/5 kHz/8 kHz/12.5 kHz
  • Gain: ±12 dB (2 dB/step)
  • <Standard Mode>
  • HPF:
  • Frequency: 25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
  • Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Subwoofer/LPF:

  • Frequency: 25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
  • Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF
  • Gain: +10 dB to -24 dB (1 dB/step)
  • Phase: Normal/Reverse
  • Time alignment: 0 to 140 step (1 inch/step)
  • Bass boost:
  • Gain: +12 dB to 0 dB (2 dB/step) Speaker level:
  • +10 dB to -24 dB (1 dB/step)
  • <Network Mode> HPF (High):
  • Frequency:1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/
  • 12.5 kHz
  • Slope:-6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct
  • HPF (Mid): Frequency:25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
  • Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF
  • LPF (Mid): Frequency: 1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/
  • 12.5 kHz
  • Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24
  • dB/oct, OFF Subwoofer:
  • Frequency:
  • 25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
  • Hz/100 Hz/125 Hz/160 Hz/200 Hz/250
  • Hz
  • Slope:
  • -6 dB/oct, -12 dB/oct, -18 dB/oct, -24
  • dB/oct, -30 dB/oct, -36 dB/oct, OFF Gain:
  • +10 dB to -24 dB (1 dB/step)
  • Phase: Normal/Reverse
  • Time alignment:
  • 0 to 140 step (1 inch/step)
  • Bass boost:
  • Gain: +12 dB to 0 dB (2 dB/step)
  • Speaker level:
  • +10 dB to -24 dB (1 dB/step)
  • DVD drive
  • System:
  • DVD-V, VCD, CD, MP3, WMA, AAC, DivX, MPEG player
  • Usable discs:
  • DVD-VIDEO, VIDEO-CD, CD, CD-R, CD-
  • RW, DVD-R, DVD-RW, DVD-R DL
  • Region number: 1
  • Signal Format:
  • Sampling frequency:
  • 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Number of quantization bits:
  • 16 bit/20 bit/24 bit; linear
  • Frequency response:
  • 5 Hz to 22 000 Hz (with DVD, at sampling frequency 48 kHz)
  • Signal-to-noise ratio:
  • 91 dB (1 kHz) (IHF-A network) (RCA level) Output level:
  • Video:
  • 1.0 V p-p/75 Ω (±0.2 V)
  • Number of channels: 2 (stereo) MP3 decoding format:
  • MPEG-1 & 2 & 2.5 Audio Layer 3
  • WMA decoding format:
  • Ver. 7, 7.1, 8, 9, 9.1, 9.2 (2 ch audio)
  • (Windows Media Player) AAC decoding format:
  • MPEG-4 AAC (iTunes encoded only):
  • .m4a (Ver. 12.5 and earlier) DivX decoding format:
  • Home Theater Ver. 3, 4, 5.2, 6 (Except ultra and HD):
  • .avi, .divx
  • MPEG video decoding format:
  • MPEG-1, MPEG-2, MPEG-4 (part2), MS-
  • MPEG-4 (ver. 3)
  • USB
  • USB standard spec:
  • USB 1.1, USB 2.0 full speed, USB 2.0 high
  • speed
  • Max current supply: 1.5 A
  • USB Class:
  • MSC (Mass Storage Class), MTP (Media
  • Transfer Protocol)
  • File system: FAT16, FAT32, NTFS
  • <USB audio>
  • MP3 decoding format:
  • MPEG-1 & 2 & 2.5 Audio Layer 3
  • WMA decoding format:
  • Ver. 7, 7.1, 8, 9, 10, 11, 12 (2 ch audio) (Windows Media Player)
  • AAC decoding format:
  • MPEG-4 AAC (iTunes encoded only) (Ver.
  • 12.5 and earlier)
  • FLAC decoding format:
  • Ver. 1.3.0 (Free Lossless Audio Codec)
  • WAV signal format (MSC Mode only): Linear PCM
  • Sampling frequency: Linear PCM:
  • 16 kHz/22.05 kHz/24 kHz/32 kHz/44.1
  • kHz/48 kHz
  • <USB image>
  • JPEG decoding format (MSC Mode only):
  • .jpeg, .jpg, .jpe
  • Pixel Sampling: 4:2:2, 4:2:0
  • Decode Size:
  • MAX: 8 192 (H) × 7 680 (W)
  • MIN: 32 (H) × 32 (W)
  • PNG decoding format (MSC Mode only):
  • .png
  • Decode Size:
  • MAX: 720 (H) × 576 (W)
  • MIN: 32 (H) × 32 (W)
  • BMP decoding format (MSC Mode only):
  • .bmp
  • Decode Size:
  • MAX: 1 920 (H) × 936 (W) MIN: 32 (H) × 32 (W)
  • <USB video>
  • H.264 video decoding format:
  • Base Line Profile, Main Profile, High
  • Profile
  • H.263 video decoding format: Base Line Profile 0/3
  • VC-1 video decoding format:
  • Simple Profile, Main Profile, Advanced
  • Profile
  • DivX:
  • Home Theater
  • MPEG4 video decoding format:
  • Simple Profile, Advanced Simple Profile
  • MPEG2 video decoding format:
  • Main Profile
  • Bluetooth
  • Version:
  • Bluetooth 4.1 certified
  • Output power:
  • +4 dBm Max. (Power class 2)
  • Frequency band(s):
  • 2 400 MHz to 2 483.5 MHz
  • FM tuner
  • Frequency range:
  • 87.9 MHz to 107.9 MHz
  • Usable sensitivity:
  • 12 dBf (1.1 μV/75 Ω, mono, S/N: 30 dB) Signal-to-noise ratio:
  • 72 dB (IHF-A network)
  • AM tuner
  • Frequency range:
  • 530 kHz to 1 710 kHz
  • Usable sensitivity:
  • 28 μV (S/N: 20 dB)
  • Signal-to-noise ratio:
  • 62 dB (IHF-A network)
