Pioneer DEH-S1200UB CD Receiver with ARC App and USB Control for Android Phones

Pioneer DEH-S1200UB CD Receiver with ARC App and USB Control for Android Phones Pioneer

Sorry, this product has been discontinued.

Pioneer DEH-S1200UB CD Receiver with ARC App and USB Control

The DEH-S1100UB CD receiver features CD Receiver with Pioneer ARC App and USB Control for Certain Android‚ĄĘ Phones

Android Music Support
Users of devices running Android OS version 4.0 or later can connect to the DEH-S1200UB and listen to music stored on the device without the need for an app. The process is made possible using Media Transfer Protocol (MTP), which allows the receiver to recognize the Android smartphone as a music storage device. Operate basic functions like FF, REW, Play, Pause, Random Play, and Repeat and view Metadata information such as track, artist, and album name.

USB Auto Switch
The receiver also includes the USB Auto Switch feature so when the phone is connected via USB the listener has the option to choose whether the receiver uses the phone as a source, or just charges the device.

General Features:

  • CD receiver with AM/FM tuner
  • MP3, WMA. WAV, and FLAC file playback from USB devices
  • detachable face
  • 10-level illumination dimmer
  • remote control

Smartphone Features:
access to music files on Android (no iPod/iPhone control)
selectable source change lets you charge your phone without activating the USB port as a source

Audio Features:
plays CDs, CD-Rs, and CD-RWs, and USB memory devices
Advanced Sound Retriever (ASR) for improved sound quality from compressed music files
5-band equalizer with seven preset tone settings
3-level loudness
low-pass and high-pass filters
subwoofer level control

Expandability:
inputs: front panel auxiliary and USB inputs (no iPod/iPhone control)
outputs: 2-channel preamp outputs (2-volt rear/subwoofer)

In-Dash Receiver

  • Receiver: SizeSingle DIN
  • Peak Power: Output50 watts x 4 channels
  • Preamp RCA Outputs: 4-channel (2 pairs)
  • Built-In Equalizer: 5 Band EQ
  • Display Type: LCD Text Display
  • Button Color: Red

Playback

  • AM/FM TunerMost in-dash CD players have AM/FM playback allowing you listen to your favorite local radio stations.
  • FM Presets18
  • AM Presets6
  • CD-R/RW Playback
  • MP3 Playback
  • WMA Playback

Audio / Video Inputs

  • USB Input: Front
  • Number of Front USB: Inputs 1
  • Additional Audio/Video: Inputs Front 3.5mm Audio Input

Monitor Screen Features

  • Screen Size: 2.5"

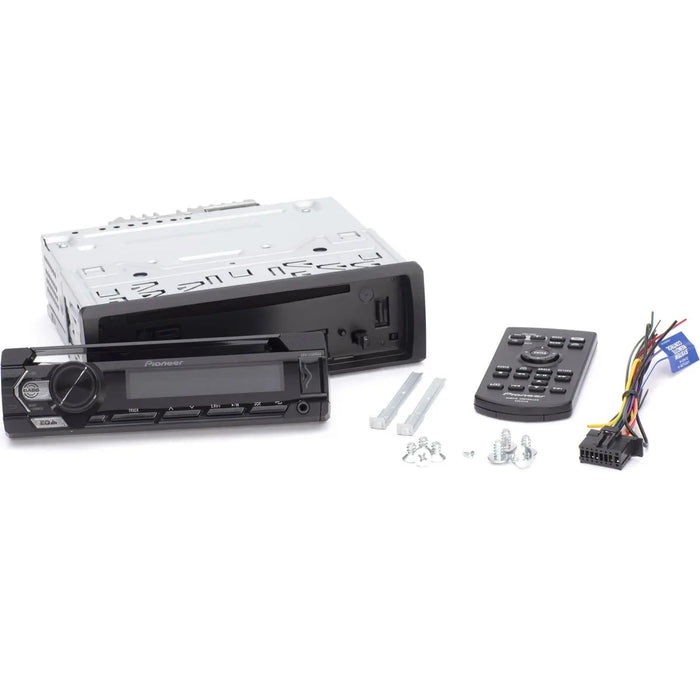

  • CD receiver (10A fuse)
  • Face (attached)
  • Sleeve (installed)
  • Trim ring (installed)
  • Wiring harness
  • Wireless remote control (CXE9606)
  • CR2025 Lithium battery (installed)
  • 2 Extraction keys
  • 4 Pan head ISO-mount screws (M5 x 8mm)
  • 4 Flat-head ISO-mount screws (M5 x 9mm)
  • Face fixing screw
  • Quick Start Guide
  • Warranty Information
