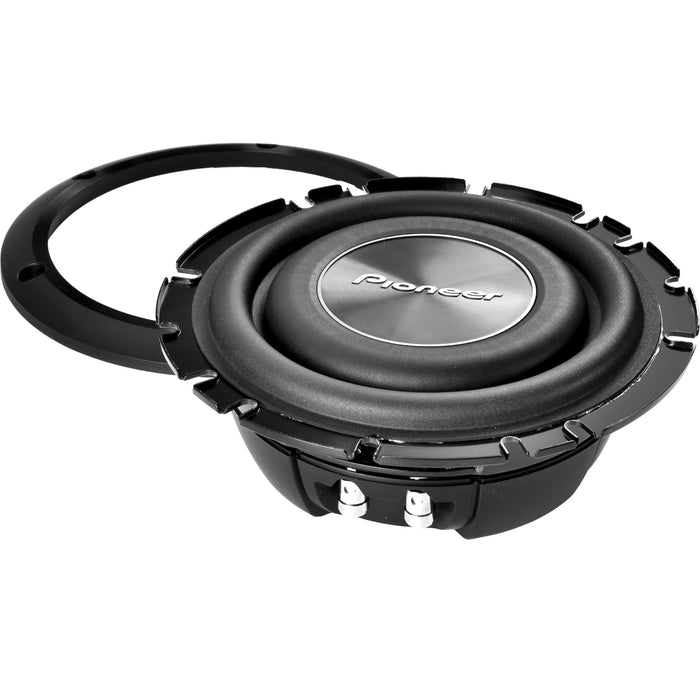

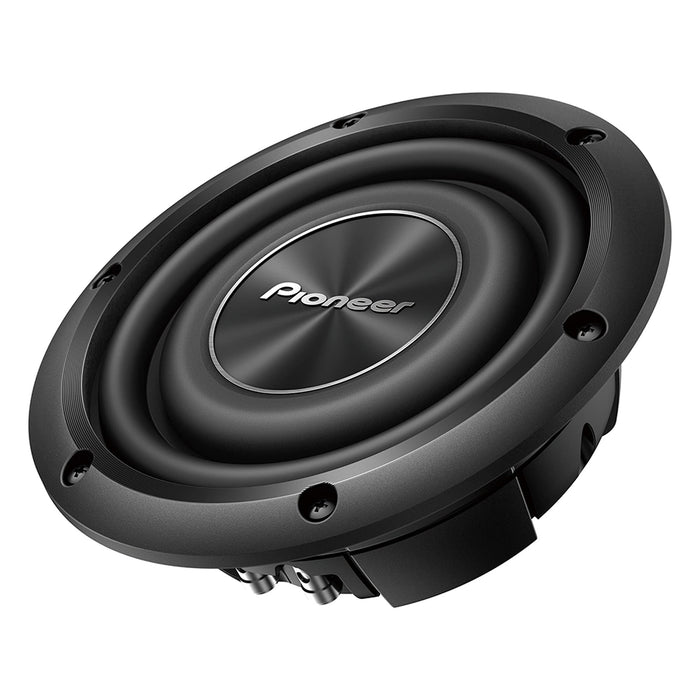

Pioneer TS-A2000LD2 8" 700W Shallow-mount Subwoofer with Dual 2-Ohm Voice Coils (each)

Pioneer TS-A2000LD2 8" 700W Shallow-mount Subwoofer with Dual 2-Ohm Voice Coils (each)

Sorry, this product has been discontinued.

Pioneer TS-A2000LD2 8" 700w Max Power Shallow-mount Subwoofer with Dual 2-Ohm Voice Coils

Pioneer's A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high-impact bass that lets you hear and feel the music.

  • 700 Watts Max Power (250 Watts Nominal)
  • Unique Design with just 2-5/8" Mounting Depth
  • Small Enclosure Use (0.15 ~ 0.5 cu. ft.)
  • 2 ohms Dual Voice Coil
  • Glass Fiber and Mica Reinforced IMPP Cone
  • Double reinforced Spider
  • 8-AWG Push Terminals
  • Rubber Surround

The cone structure of this subwoofer uses a highly rigid cone made with MICA-injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.

Our line of shallow subwoofers is designed to provide wider installation options for a broad range of vehicles. These shallow-mount subwoofers feature multiple patent-pending features to deliver the big bass performance of a full-size subwoofer, but in a compact design that can be installed either behind or under seats depending on the type of vehicle. The mounting depth is just 2-5/8" - less than half a typical subwoofer in this class.

KEY FEATURES:

  • System Type: Component Subwoofer
  • Sensitivity (1W/1m): 83 dB
  • Frequency Range: 20 Hz to 1.4 kHz
  • CTA-2031 Compliant: Yes
  • Warranty: 1 Year
  • Continuous Power handling (RMS) - Watts: 250 Watts
  • Maximum Peak Power Handling - Watts: 700 Watts
  • Nominal Impedance - OHM: 2 DVC

BUILD:

  • Shape: Round
  • Size: 8"
  • Cone Material: IMPP - Composite
  • Center Cap Material: ABS
  • Surround Material: Rubber
  • Surround Type: Rolled
  • Basket Material: Stamped Metal
  • Custom Fit Basket: Yes
  • Magnet Material: Ferrite
  • Magnet Weight: 29.6 oz
  • Voice Coil Type: Dual Voice
  • Voice Coil Bobbin: Alminium
  • Voice Coil wire: Copper
  • Damper: Poly cotton
  • Gasket: PP
  • Wire Terminals: Push Type
  • Unit Size (Dimensions): 8-7/8"
  • Mounting Depth: 2-5/8"
  • Cut Out dimensions: 7"
  • Equivalent Compliance (VAS) [L]: 4.11
  • Free Air Resonance (Fs) [Hz]: 63
  • Total Speaker "Q" (Qts): 0.99
  • Linear Excursion (Xmax) [mm]: 2.3
  • Recommended Sealed Box Volume [L]: 14.2
  • Port Box volume [L]: 14.2
  • Port Length: 8"
  • Port Diameter: 3"
