Planet Audio AC4000.1D 4000 Watts Class D Monoblock Car Amplifier
- Description
- Specs/Features
- Files and Documents
- FAQ
- Proposition 65
Description
Planet Audio AC4000.1D 4000 Watts Class D Mono Block Car Amplifier
- Class D operation
- MOSFET PWM (Pulse Width Modulated) Power Supply
- One Ohm stable mono operation
- Thermal, overload and speaker short protection
- Soft turn-on circuit
- Remote turn-on/turn-off circuit
- Variable input gain control
- Input voltage sensitivity selector
- 15-40Hz, 12dB/octave Variable Subsonic Filter
- 50-150Hz, 12dB/octave Variable Low Pass Filter
- Variable 0-+18dB Bass Boost
- 0/180 degrees Phase Shift selector
- Chrome-plated RCA low level inputs
- Nickel-plated speaker and power terminals
- LED power and protection indicators
- Black anodized heatsink
- Remote subwoofer level control
- Designed to run with a minimum load of 1 Ohm

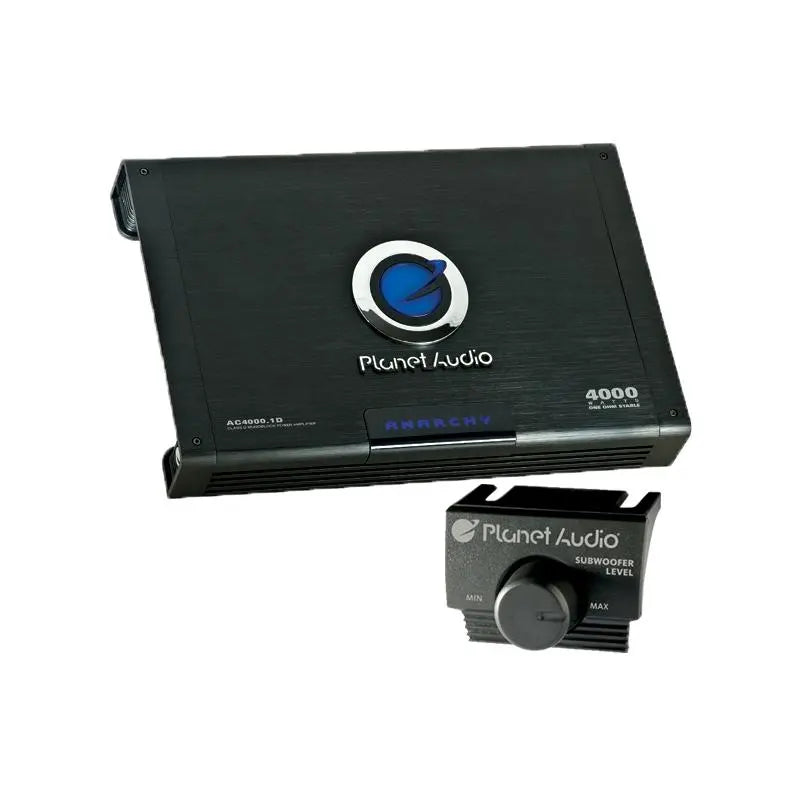

- Includes Class D Amplifier, Remote Subwoofer Level Control, Remote Subwoofer
- Control Cable, DataLink Cable and (4) Four Mounting Screws
- Authorized Dealer
Note: Operating the AC4000.1D with a speaker impedance load below 1 Ohm may result in poor sound quality and damage to the amplifier circuitry. Such damage is not covered under the warranty for this product.
Specs/Features
Specifications
- MAX Power into 1 Ohm: 4000W x 1
- RMS Power into 1 Ohm: 2800W x 1
- RMS Power into 2 Ohms: 2000W x 1
- RMS Power into 4 Ohms: 1500W x 1
- Min. Speaker Impedance: 1 Ohm Mono
- Input Impedance: 10k Ohm
- Input Sensitivity: Selectable 100mV-2V or 2V-8V
- Frequency Response: 20Hz-250Hz
- Signal-to-Noise Ratio: 105dB
- Crossover/Filter Range (Low Pass): 50Hz-150Hz
- Crossover/Filter Range (Subsonic): 15Hz-40Hz
- Bass Boost: Variable 0-+18dB
- Phase Shift: Selectable 0/180 degrees
- Fuse Rating: 40A x 3
- Dimensions: 10" x 2-9/16" x 15" (254mm x 65mm x 380mm)
