Planet Audio AC600.2 Anarchy 600W 2-Channel Full Range Car Amplifier
- Description
- Specs/Features
- Files and Documents
- FAQ
- Proposition 65
Description

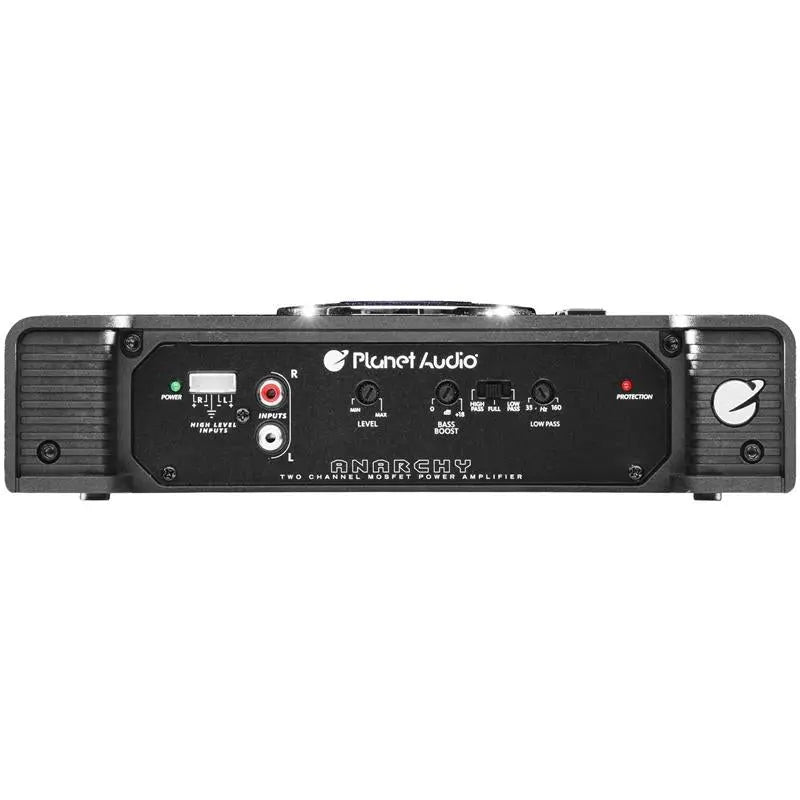

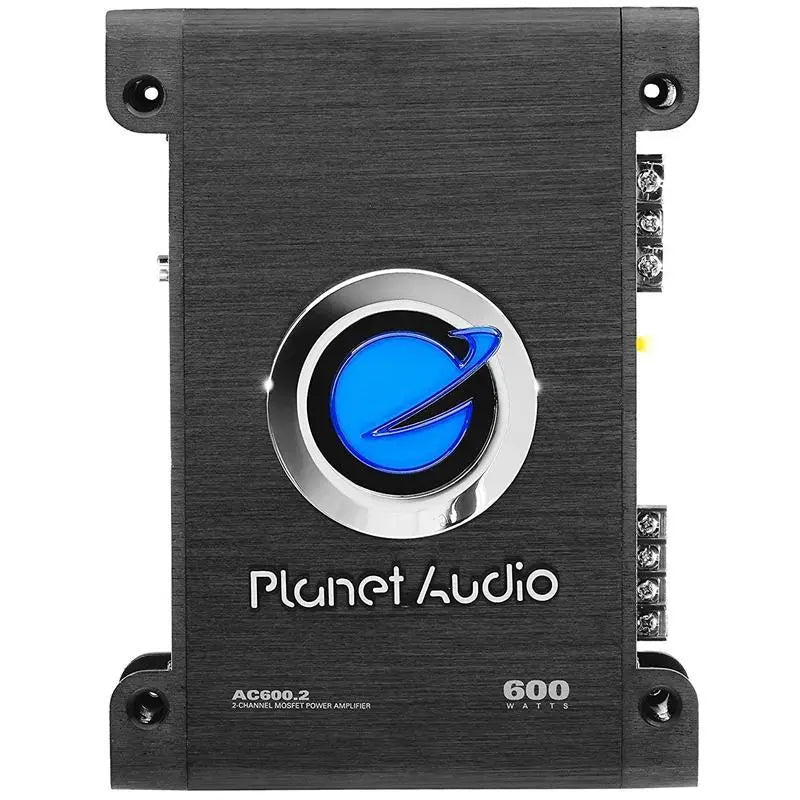

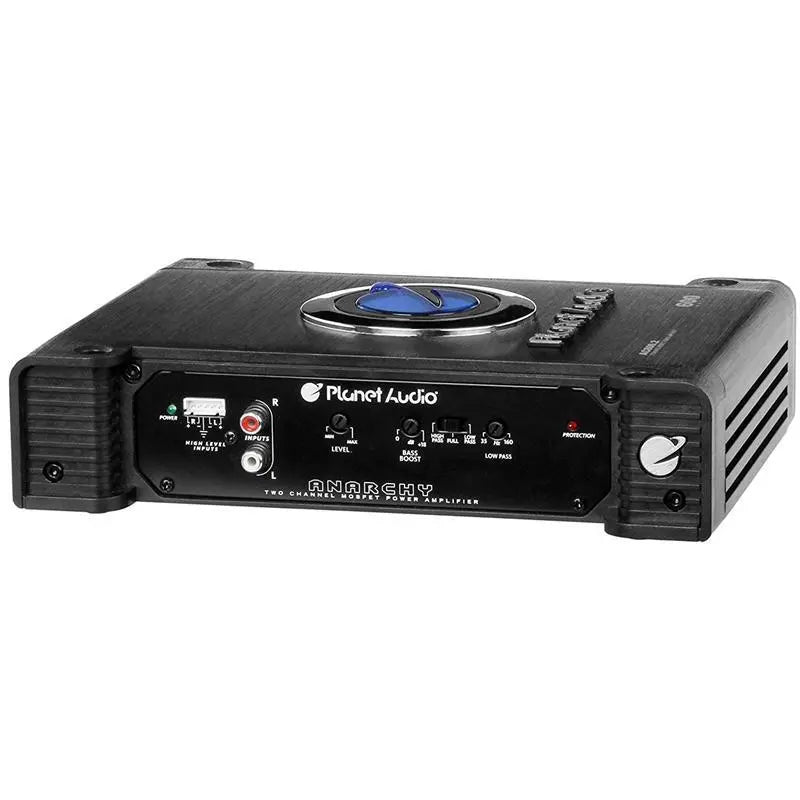

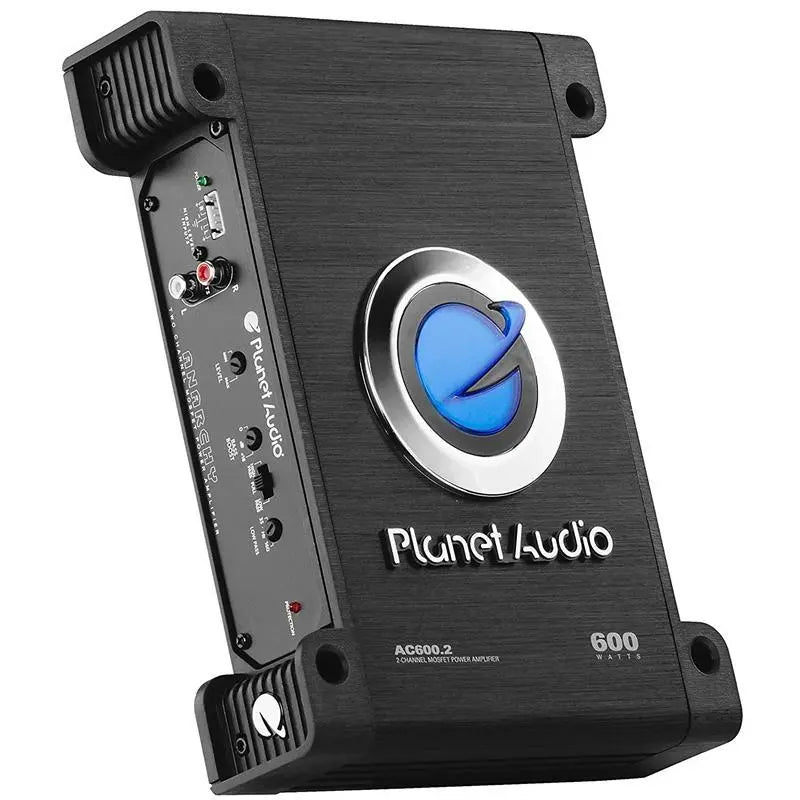

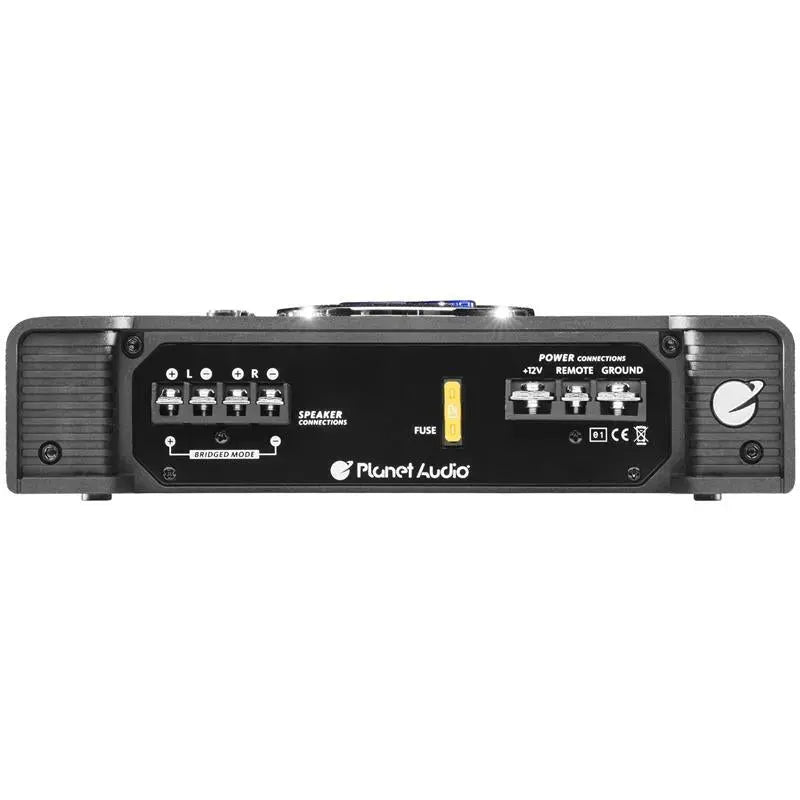

Planet Audio AC600.2 Anarchy 600W 2-Channel Full Range Car Amplifier
- Designed in the USA
- Features variable low pass and high pass crossovers
- Features variable input gain controls
- Variable 0 to +18dB Bass Boost Control
- Class A-B operation
- Bridgeable outputs
- Tri-Mode capable
- MOSFET PWM (Pulse Width Modulated) Power Supply
- 2 Ohm stable stereo operation with output power increase
- Thermal and speaker short protection
- Soft turn-on circuit
- Remote turn-on/turn-off circuit
- Fixed high pass crossover(s)
- Chrome-plated RCA low level and high level inputs
- LED power and protection indicators
- Black anodized heatsink
- Authorized Dealer
About 2 Ohm Operation
Your Anarchy amplifier has been designed to operate efficiently at loads down to 2 Ohms. This means that you can install four 8 Ohm speakers per channel, when using parallel wiring.
Increasing the number of woofers per channel at low frequencies (below 100Hz) produces an acoustic coupling effect. This accoustic coupling effect increases your power output by about 3dB per speaker, or the equivalent of an additional 10W per speaker.
When operating at 2 Ohms, the amplifiers will increase their output power by approximately 50%. The current draw will also increase by about the same amount, so be sure you have enough current to run the amplifiers into a 2 Ohm load.
If you lack adequate current, your music reproduction will be distorted.
Specs/Features
Specifications:
- Max Power into 4 Ohms: 150W x 2
- Max Power into 2 Ohms: 300W x 2
- Max Bridged Power into 4 Ohms: 600W x 1
- Min. Speaker Impedance: 2 Ohm Stereo; 4 Ohm Mono Bridged
- THD: 0.01%
- Frequency Response: 20Hz-20kHz
- Signal-to-Noise Ratio: 102dB
- Channel Separation: 90dB
- Damping Factor: 125+
- Crossover Range (Low Pass): 45Hz-90Hz
- Crossover Range (High Pass): 80Hz
- Bass Boost: Variable 0 to +18dB
- Fuse Rating: 20A
- Dimensions: 10" x 2-9/16" x 7-12/25" (254mm x 65mm x 190mm)

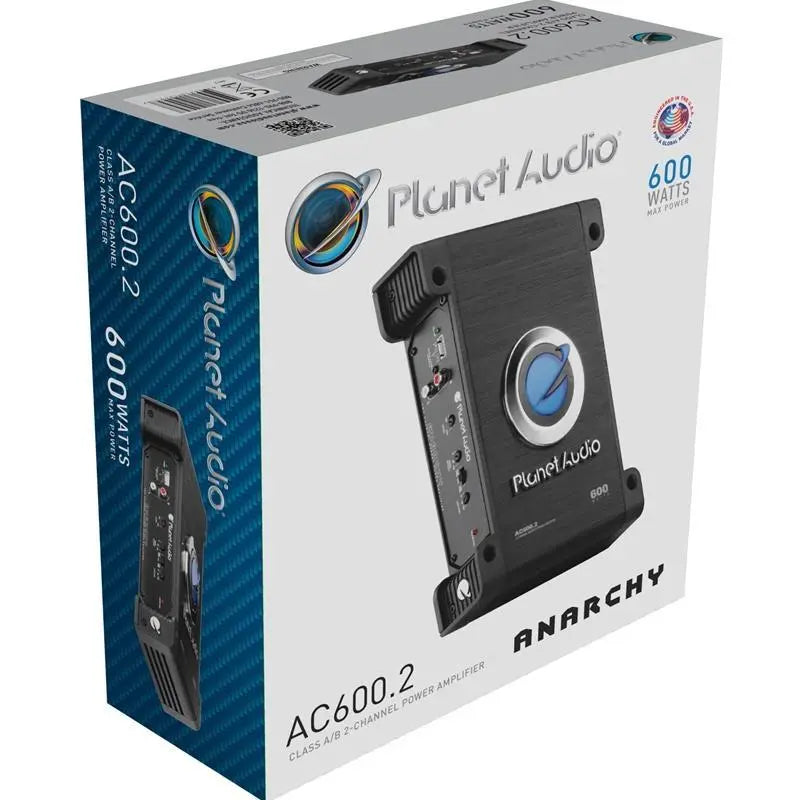

What's in the box:
- ANARCHY Amplifier
- High Input Cable with Connector
- 4 x Mounting Screws
- User's Manual
