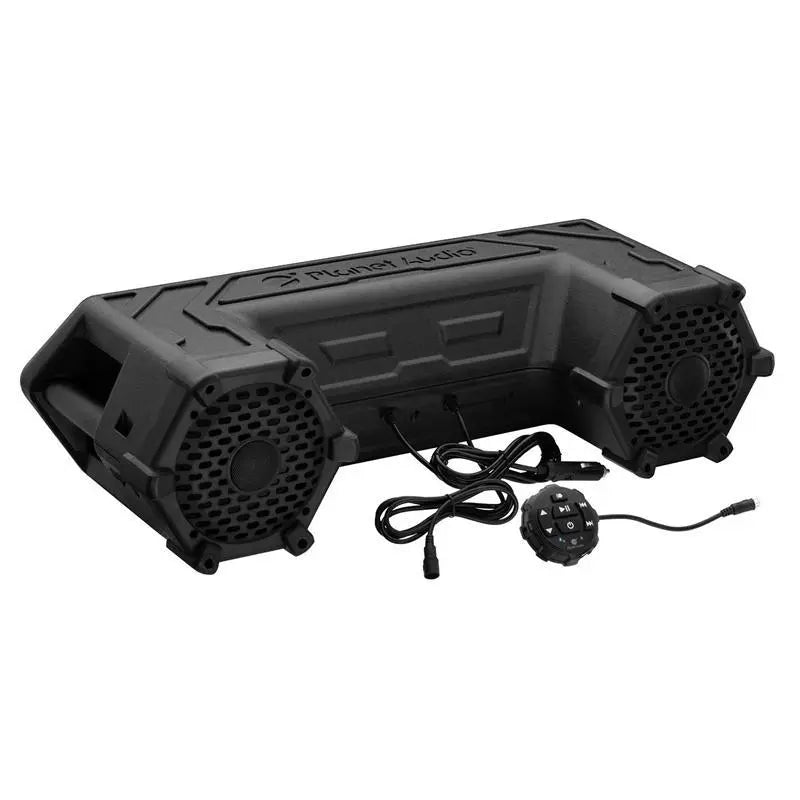

Planet Audio PATV65 Bluetooth All-Terrain Sound System w/ 6.5" Speaker

In Stock

California customers:
Please click here for your Proposition 65 warning.

Fully Marinized System
Bluetooth Audio Streaming - Stream and Control your favorite music apps
Waterproof In-Line Multi-Function Control
Waterproof Polypropylene Woofer Cone
Soft Dome Diaphragm High Performance Tweeter
Compatible with Audio Output of iPod/iPhone, Smartphones and MP3 Players
Internal High Performance Class A/B Amp
Plug and Play for easy installation

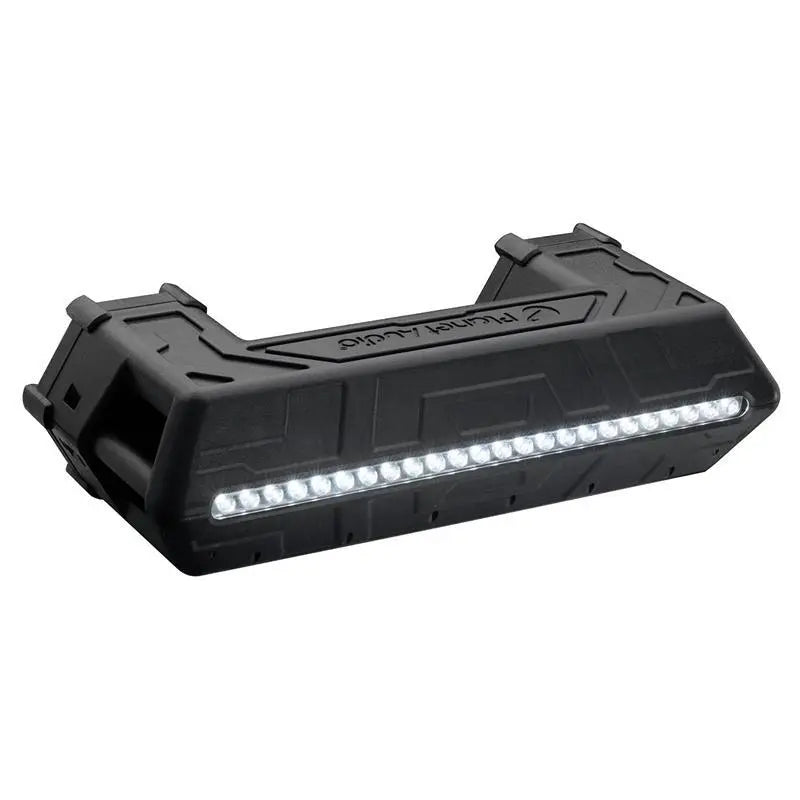

High Intensity LED Light Bar
Can be mounted in two different configuration: Surface Mount and Handlebar Mount
Authorized Dealer

Multifunction Controller (MFC)

Volume Down
Volume Up
LED Driving Lamp - On/Off
Next Track
Previous Track
System Power - On/Off
Power/Source - Red = AUX-In Mode/Blue = BT Mode
Bluetooth Pairing Indicator - Blue Color
3.5mm AUX Input

3.0 with EDR
Range: 33ft (10m) Class 2

Impedance: 4 ohm
Cone Type: PP Carbon + Rubber Surround
Tweeter Size: 1" PEI Soft Dome

Maximum Output Power:
450 Watts
Input Impedance: 10kohm
Frequency Response: 45Hz-25kHz

14.5lbs (6.58kg)
Unit Dimensions (H x D x W): 20.2cm x 32.2cm x 72.4cm (7.95" x 12.67" x 28.50")
Controller Dimensions (H x D x W): 1" x 22" x 3.22" (25.2mm x 80.1mm x 80.1mm)
Controller Cable Length: 6ft (2m)
Quick Connect Molex Power Harness

Operational Power:
14.4VDC (10.8V ~ 16V allowable)
Grounding System: Negative type
MAX Current Draw: 13.7A
Replacement Fuse: 15A AGC Type
3-Way Protection Circuitry (thermal, overload and speaker short protection)
Color: Black
Storage Temperature: 5 degrees fahrenheit to 113 degrees fahrenheit (-15 degrees celsius to 45 degrees celsius)
Operation Temperature: 14 degrees fahrenheit to 140 degrees fahrenheit (-10 degrees celsius to 60 degrees celsius)

Tools Needed (sold separately)
Wrench and/or Pliers
#2 Phillips Screwdriver
Crimp Tool
Electrical tape

(1) PATV65 All-Terrain Speaker System
(1) Bluetooth Multi-Function Controller
(1) Handlebar Mounting Kit
(1) Quick Disconnect Power Extension Adapter
(4) Hi-strength Nylon Mounting Straps
(1) User Manual
(1) Warranty Card
