Planet Audio PEQ15 5-Band Parametric Equalizer with Subwoofer Output

Click or scroll to zoom
Tap or pinch to zoom
Planet Audio PEQ15 5-Band Parametric Equalizer with Subwoofer Output (3839200657472)
Click or scroll to zoom
Tap or pinch to zoom
Planet Audio PEQ15 5-Band Parametric Equalizer with Subwoofer Output (3839200657472)
Click or scroll to zoom
Tap or pinch to zoom
Planet Audio PEQ15 5-Band Parametric Equalizer with Subwoofer Output (3839200657472)
Click or scroll to zoom
Tap or pinch to zoom
Planet Audio PEQ15 5-Band Parametric Equalizer with Subwoofer Output (3839200657472)
Planet Audio PEQ15 5-Band Parametric Equalizer with Subwoofer Output (3839200657472)
In Stock
$61.58

California customers:
Please click here for your Proposition 65 warning.

Description
Planet Audio PEQ15 5-Band Parametric Equalizer with Subwoofer Output

Brand: Planet Audio
MPN: PEQ15
Condition: New

Half-DIN 5-Band Pre-Amp Equalizer
50Hz to 250Hz Low Pass Filter
Dual 2-Channel Source Input
Front, Rear and Subwoofer Outputs
Subwoofer Level Control
Variable Low Pass Crossover
7V Maximum Output Voltage
110dB S/N Ratio
5V Maximum Input Voltage
10Hz to 50kHz Frequency Response
Master Volume Control

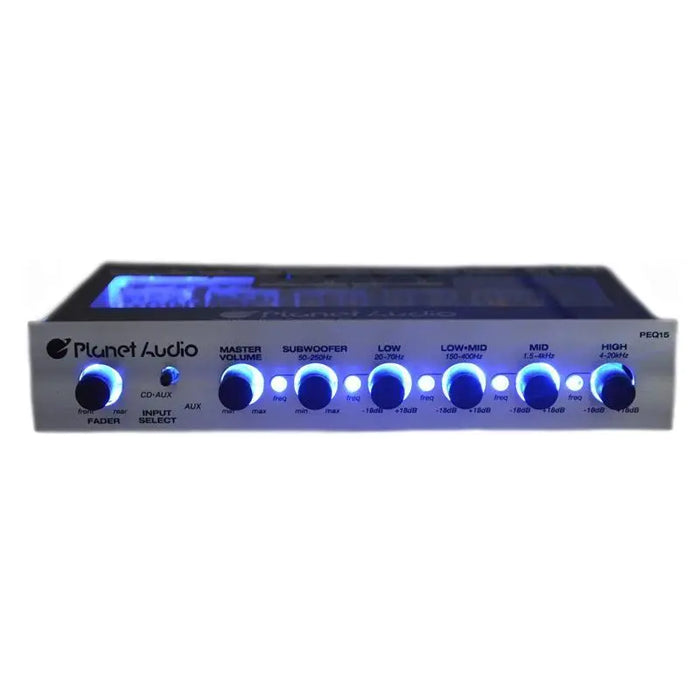

Night Illumination

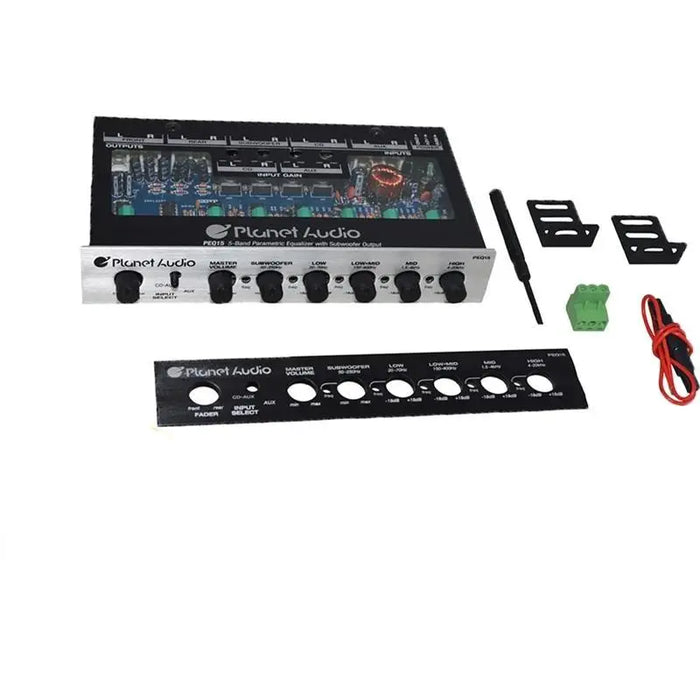

Comes with silver face panel and includes interchangeable black face panel
Authorized Dealer

Front Panel Controls and Features
Fader
Input Select (CD or AUX)
Master Volume Control
Subwoofer Crossover Frequency Selector
Subwoofer Volume Control
Front/Rear Channel Center Frequency Selectors
Front/Rear Channel Boost/Cut Controls

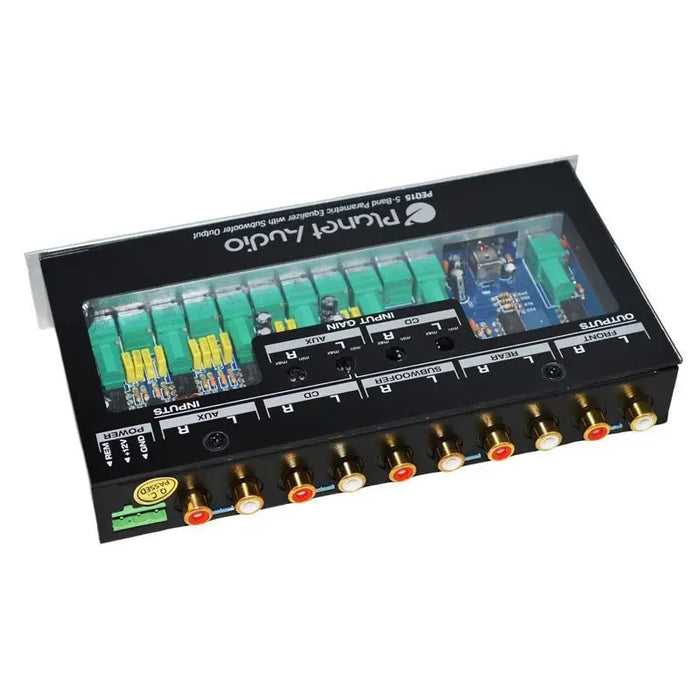

Top Panel Controls and Features
Subwoofer Channel RCA Outputs
Front and Rear Channel RCA Outputs
CD and AUX Channel RCA Inputs
Power Connections
CD and AUX Channel Input Gain Controls
Specs/Features

Front/Rear EQ Center Frequency Ranges: LOW - 20-70Hz; LOW-MID - 150-400Hz; MID - 1.5-4kHz; HIGH - 4-20kHz
Sub Channel EQ Crossover Range: 50-250Hz
Equalization Range: +/- 18dB (boost/cut)
Frequency Response: 10Hz-50kHz (+/- 1dB)
Signal-to-Noise Ratio: 110dB (ref. 1V input)
THD: 0.005%
Channel Separation: 82dB (at 1kHz)
Output Impedance: 50k ohms
Power Supply: 11-15V negative ground
Output Voltage: 7V
Dimensions: 7.2" W x 3.8" D x 1.3" H
