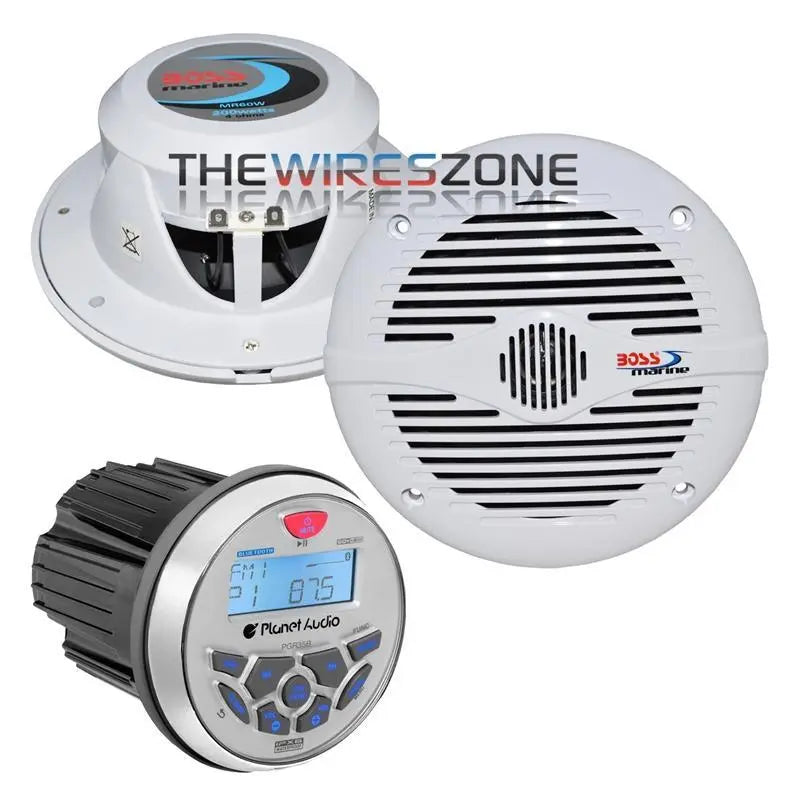

Planet Audio PGR35B Marine Bluetooth Receiver + Pair of 6.5" Speakers

Sorry, this product has been discontinued.

Marine Gauge Digital Media AM/FM Receiver with Bluetooth-enabled
MP3/WMA Playback
Bluetooth Audio Streaming Stream and Control your Favorite Musuc APPs
USB Port inputs
AUX inputs
Compatible with Audio Output of iPod/iPhone, Smartphones and MP3 Players
Front Pre-Amp Outputs
Rear/Sub Pre-Amp Outputs
IPX6 Waterproof
USB Charging (1A)
Weather Band Tuner
Switchable US and Europe Tuner Frequencies
RDS Tuner
PC Board with Conformal Coating
Polished Stainless Steel Bezel
Zero Current Draw Memory (retains radio preset memory in case of vehicle battery disconnect)
Cutout Diameter: 3" (76mm)
Authorized Dealer


200 Watts MAX and 100 Watts RMS Power Handling per Pair
Poly Injection Woofer Cone
Weather Proof Full Range 6.5" 2-way Speaker Pair
80 Hz to 20 kHz Frequency Response and 90dB Sensitivity
1 Tweeter Per Speaker
Authorized Dealer

FM Tuner Frequency Range
Europe: 87.5~108MHz
Asia: 87.5~108MHz
Australia: 87.5~108MHz
Usable Sensitivity: 12dB (S/N=30dB)
Bands: 2

AM Tuner Frequency Range
Europe: 522~1620KHz
Asia: 522~1620KHz
Australia: 522~1620KHz
Usable Sensitivity: 40dB (S/N=20dB)
Bands: 1

Weather Band Selection
CH.2: 162.425MHz
CH.3: 162.450MHz
CH.4: 162.475MHz
CH.5: 162.500MHz
CH.6: 162.525MHz
CH.7: 162.550MHz
Bands: 1

BT Range: 33ft/10m (Class 2)
BT Profiles: A2DP/AVRCP 1.3

USB Drive Media Supported
65,000 Songs
32GB/FAT 32
USB 2.0 High Speed
USB Output Voltage: 5VDC @ 1A

Integrated Amplifier
MAX Continuous Output: 240W (all channels driven)
PEAK Power Rating: 60W/channel
RMS Total Power Output: 80W
Channels: 4
Class: AB
Frequency Response: 20-20kHz
4 Ohm stable

Button Backlight Illumination:
Blue LED
F/R/S RCA Preamp Output: 2VRMS
RCA Input Impedance: 10kohm
LCD: TN Type/Active Matrix

Power Source:
14.4VDC (10.8V~16V allowable)
Grounding System: Negative type
Maximum Current Consumption: 15A
3-Way Protection Circuitry (thermal, overload and speaker short protection)
Unit Weight: 1.08lbs (0.52kg)
Storage Temperature: -22 degrees fahrenheit to 176 degrees fahrenheit (-30 degrees celsius to 80 degrees celsius)
Operation Temperature: -4 degrees fahrenheit to 158 degrees fahrenheit (-20 degrees celsius to 70 degrees celsius)
Replacement Fuse: 15A (replace with ATG Fuse Type Only) sold separately

General Specs
Speaker Type:
Full Range
Configuration: 2-Way

Physical Specifics
Woofer Size:
Supplied Grill
Tweeter Size: 1"
Mounting Depth: 2.44"

Performance Specs
Peak Power Handling:
200 Watts
System Sensitivity (1W/1M): 90dB
System Impedance: 4 Ohm
System Frequency Response: 80Hz to 20kHz

PGR35B Receiver
Metal Bracket
2 x Hexagon Mounting Studs
8 x M4 Secure Nuts
User Manual
Warranty Card
2 x MR60W Speakers
