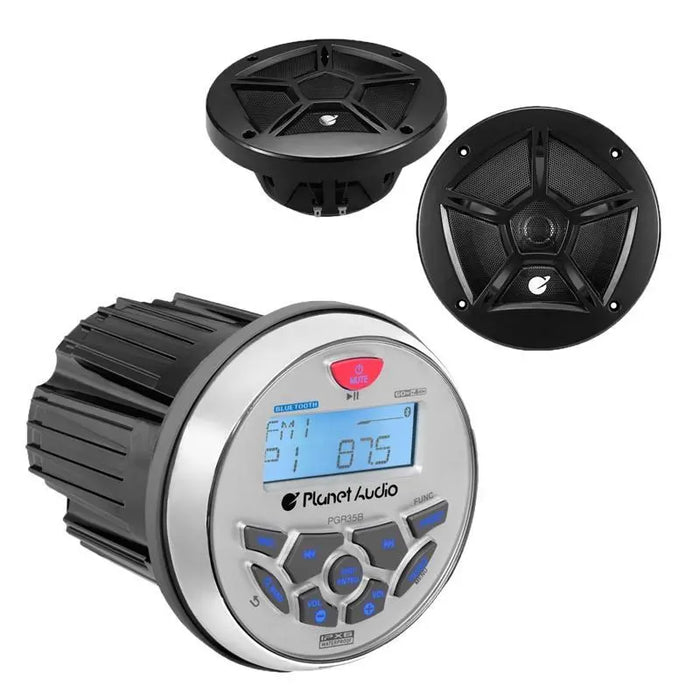

Planet Audio PGR35B Marine Gauge Bluetooth Stereo + 6.5" Black Speaker
Brand: Planet Audio
MPN: PGR35B + PM65B
Condition: New
PGR35B Description
Gauge MECH-LESS Multimedia Player (no CD/DVD)
Bluetooth Audio Streaming
A2DP, AVRCP Bluetooth Supported Profiles
60 Watts x 4 Channel MAX Power
12FM / 6Am Tuner Preset
Selectable Preset EQ
Balance/Fader/Bass/Treble and Preset built-in EQ
No CD or DVD Player
Plays USB, MP3, FM/AM and Smart Phones
Compatible with Audio Output from Smart Phones and MP3 Players
USB and AUX Inputs
Front, Read/Sub Pre Amp Outputs
USB Charging
Built-in Subwoofer Control
Audio Streaming
Make and receive calls
Plays and control music and apps like Spotify/Pandora wirelessly
Authorized Dealer
PM65B Description
Black 6.5" 2-Way 200 Watts Full Range Speaker
Weatherproof Full Range 6.5" 2-Way Speaker
200 Watts MAX Power Handling per speaker
100 Watts RMS Power Handling per speaker
80Hz to 20KHz Frequency Response
90dB Sensitivity
4 Ohm Impedance
Polypropylene Woofer Cone and Treated Cloth Surround
1" Tweeter per speaker
2.75" Mounting Depth
4.75" Mounting Diameter
Speaker Grilles included
Authorized Dealer
Note: Package includes (1) One PGR35B Stereo and (2) Two PM65B Black Marine Speakers
FM Tuner Frequency Range
USA: 87.5~107.9MHz
Europe: 87.5~108MHz
Asia: 87.5~108MHz
Australia: 87.5~108MHz
Usable Sensitivity: 12dB (S/N=30dB)
Bands: 2
AM Tuner Frequency Range
USA: 530~1710KHz
Europe: 522~1620KHz
Asia: 522~1620KHz
Australia: 522~1620KHz
Usable Sensitivity: 40dB (S/N=20dB)
Bands: 1
Weather Band Selection
CH.1: 162.400MHz
CH.2: 162.425MHz
CH.3: 162.450MHz
CH.4: 162.475MHz
CH.5: 162.500MHz
CH.6: 162.525MHz
CH.7: 162.550MHz
Bands: 1
Bluetooth
BT: 3.0
BT Range: 33ft (10m) Class 2
BT Profiles: A2DP/AVRCP 1.3
USB Drive Media Supported
MP3
WMA
65,000 Songs
35gb/FAT 32
USB 2.0 High Speed
USB Ouput Voltage: 5VDC @ 1A
Integrated Amplifier
MOSFET
MAX Continuous Output: 240W (All channels driven)
PEAK Power Rating: 60W/channel
RMS Total Power Output: 80W
Channels: 4
Class: AB
Frequency Response: 20-20KHz
4 ohm stable
Chassis
Button Backlight Illumination: Blue LED
F/R/S RCA Preamp Output: 2V RMS
RCA Input Impedance: 10kohm
LCD: TN Type/Active Matrix
Inputs & Outputs
USB Port: Rear Cable
Pre-Amp Outputs: Front, Read/Sub
AUX-IN: Rear Cable
General
Power Source: 14.4VDC (10.8V~16V allowable)
Grounding System: Negative Type
Maximum Current Consumption: 15A
3-Way Protection Circuitry (thermal, overload and speaker short protection)
Mounting Measurement: 3" W x 3" H x 5" D
Mounting Hole: 3" Round
7-Channel Weather Band Selections
Unit Weight: 1.08lbs (0.52kg)
Storage Temperature: -22 degrees fahrenheit to 176 degrees fahrenheit (-30 degrees celsius to 80 degrees celsius)
Operation Temperature: -4 degrees fahreheit to 158 degrees fahrenheit (-20 degrees celsius to 70 degrees celsius)
Replacement Fuse: 15A (replace with ATG Fuse Type only)
Marine Speakers
Speaker Type: Full Range
Configuration: 2-Way
Woofer Size: 6.5"
Supplied Grill
Mounting Diameter: 4.75"
Tweeter Size: 1"
Mounting Depth: 2.75"
Peak Power Handling: 200 Watts
System Sensitivity (1W/1M): 90dB
System Impedance: 4 ohm
System Frequency Response: 80Hz to 20KHz
Color: Black
