PulseAudio PAEXARC1 is an ARC Digital Audio Extender over CAT5e CAT6 Ethernet

in stock, ready to be shipped
Original price $128.95 - Original price $128.95
Original price
$128.95 - $128.95
Current price $128.95

PulseAudio PAEXARC1 is an ARC Digital Audio Extender over CAT5e CAT6 Ethernet

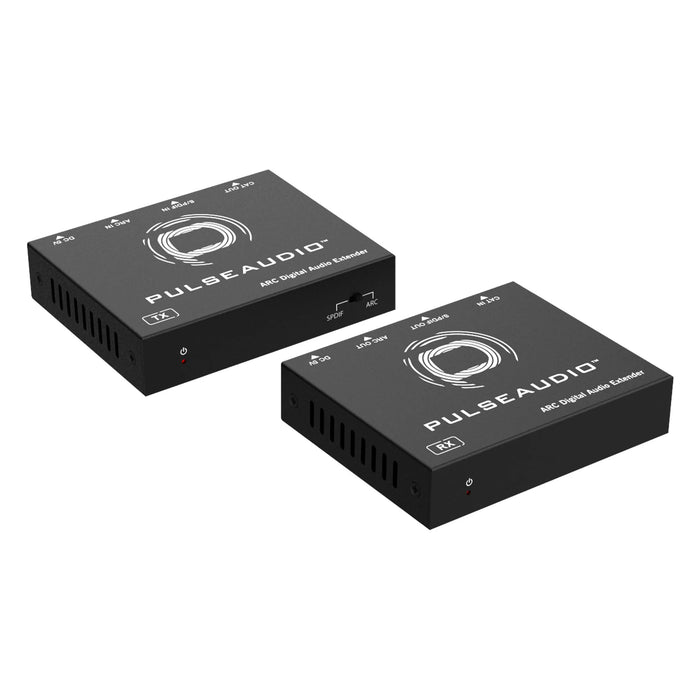

The PulseAudio PAEXARC1 is an ARC Digital Audio Extender that allows digital audio to be routed from a display to a remote location or amplifier over a single Cat5e/6 cable up to 492ft (150m). For displays without ARC capability, or when ARC settings are not working as they should, the built-in “ARC Backup Plan” is featured where audio can still be extended utilizing SPDIF.

The range of the PAXEARC1 will vary depending on the HDMI/ARC sample rates. For instance, higher sample rates, 192kHz, will be rated at 295ft (90m), while lower sample rates, 96kHz, will be rated at 492ft (150m).

  • Extends ARC Digital Audio signals over Cat5e/6

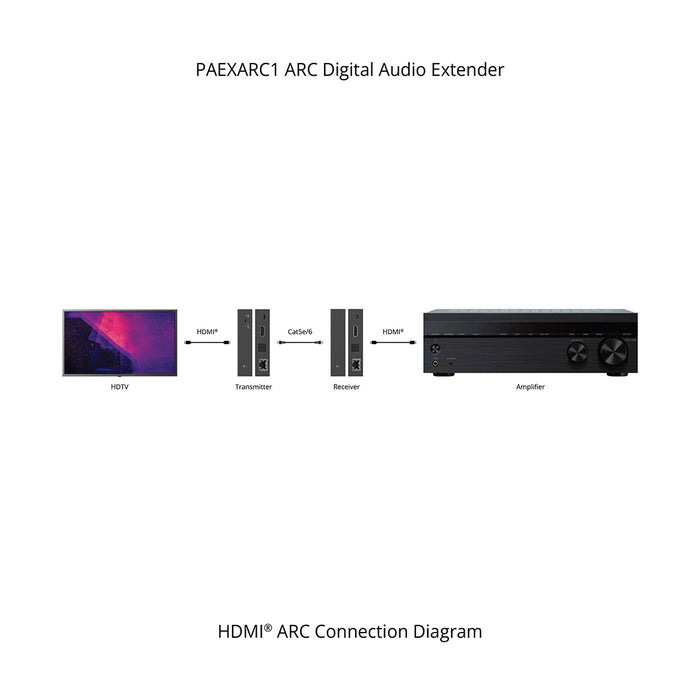

  • Supports a single HDMI ARC input and output
  • Extends digital audio signals up to 492ft (150m) at 96kHz
  • or 295ft (90m) at 192kHz over a single Cat5e/6

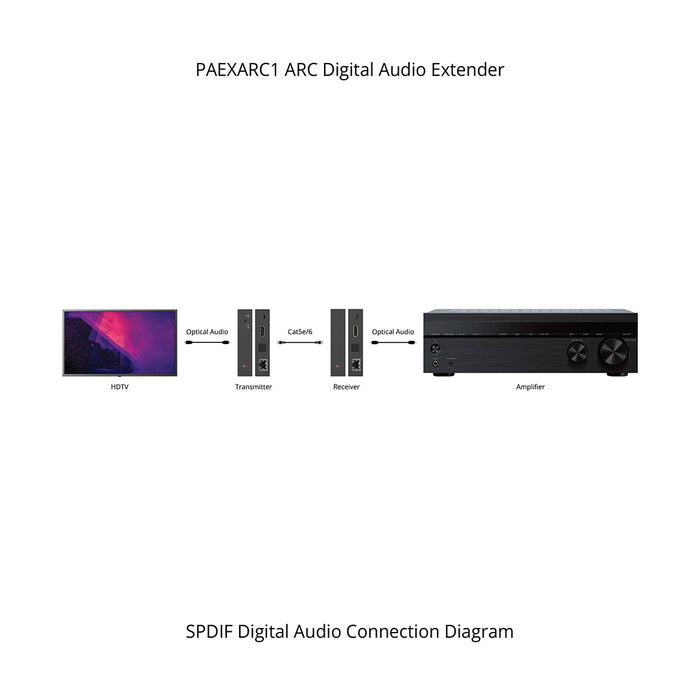

  • Built-in “ARC Backup Plan” with SPDIF input and output
  • Supports Dolby / DTS 5.1CH and PCM 2CH audio formats
  • CEC pass-through when HDMI ARC mode is enabled


Supported Audio Formats PCM 2CH, Dolby/DTS 5.1CH
Sample Rates
Optical / ARC (492ft / 150m) 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
ARC (295ft / 90m) 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

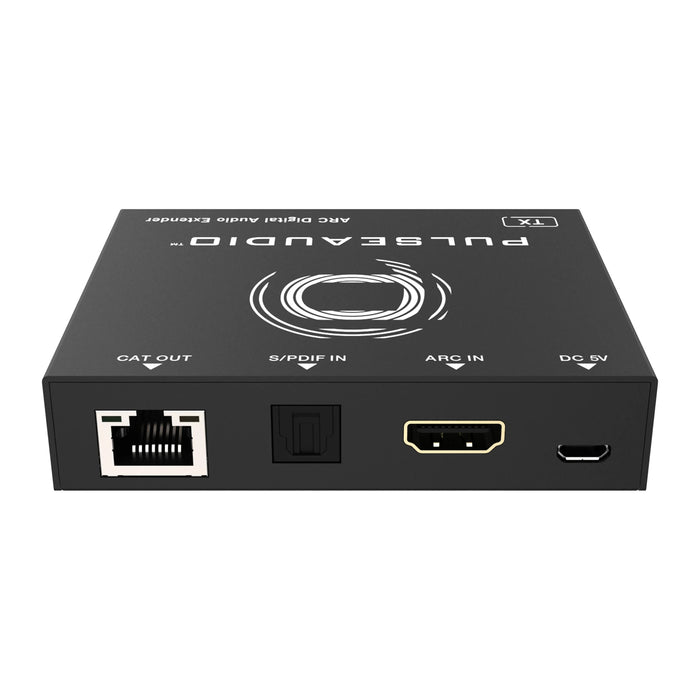

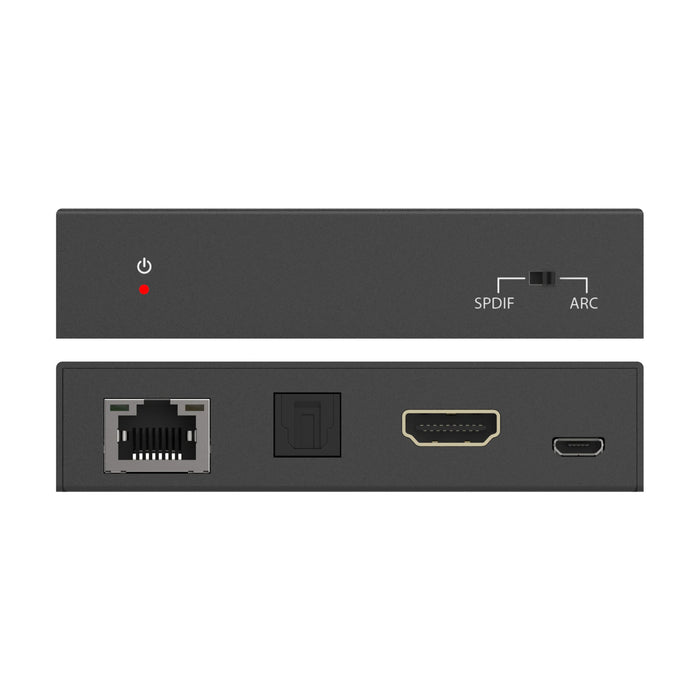

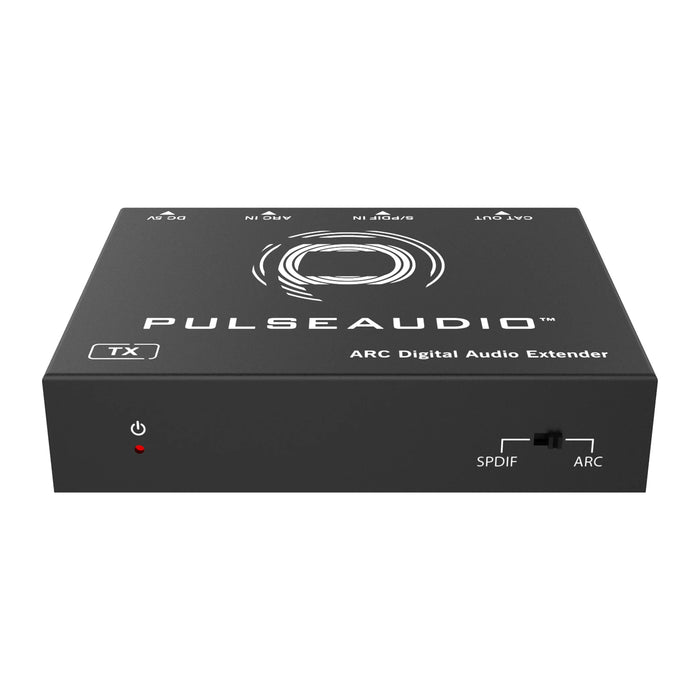

Transmitter Input: (1) SPDIF, (1) ARC HDMI® In, (1) Micro-USB (Power)
Output: (1) CAT Out (Cat5e/6)
Receiver Input: (1) CAT In (Cat5e/6), (1) Micro-USB (Power)
Output: (1) SPDIF Out, (1) ARC HDMI® Out
Technical & Mechanical
Housing Metal
Color Black
Dimensions 3.5” x 2.8” x 0.8” (90mm x 72mm x 20mm)
Weight 6.2oz / 175g
Power Consumption Transmitter: 0.35W
Receiver: 0.7W
ESD Human-body Model: ±8kV (Air-gap discharge)
±4kV (Contact discharge)
Operating Environment
Temperature Working: 0°C to 40°C / 32°F to 104°F
Storage: -20 to 60°C / -4°F to 140°F
Relative Humidity 20 to 90% RH (Non-condensing)
