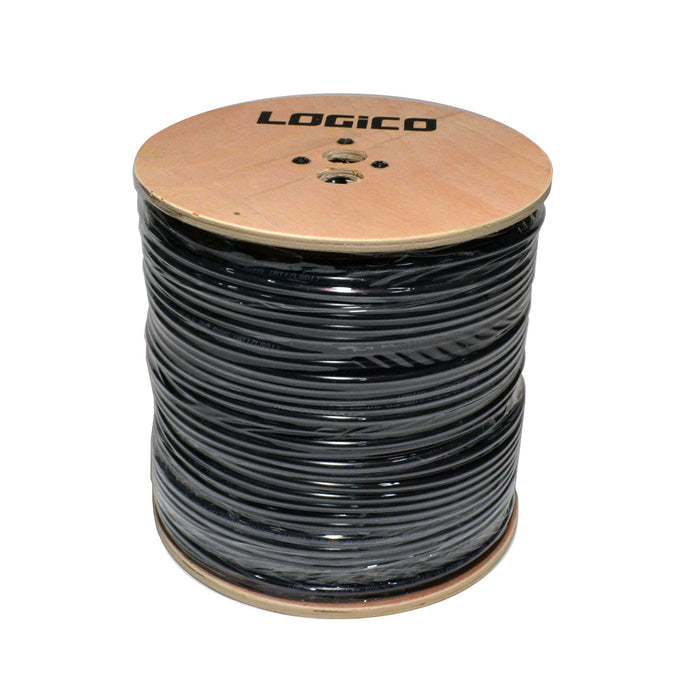

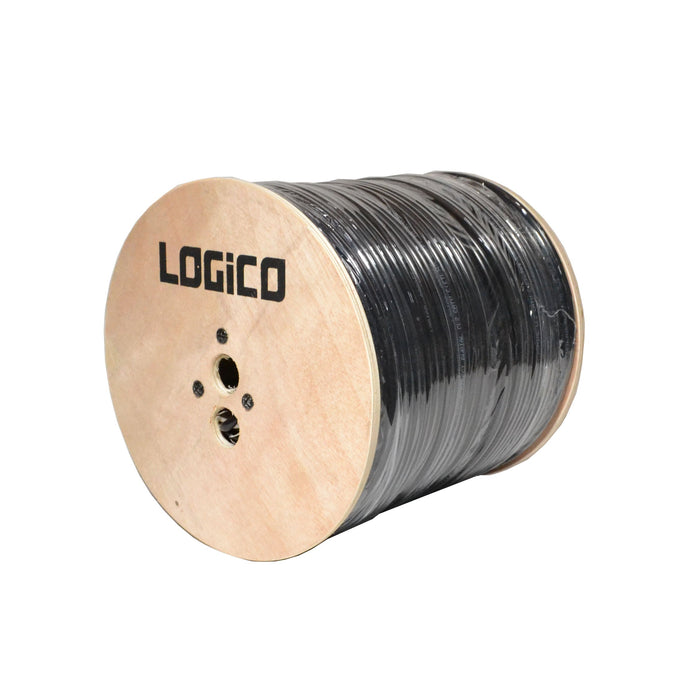

RG6 Outdoor Direct Burial CMX Coax Cable 3GHz Underground 18AWG 1000ft

by Logico
Out of Stock
$89.95
Checked 30-Day Money-Back Guarantee
Checked Fast, Free Shipping on all US Orders
Checked Live Customer Service Representative
Checked Buy Online, Free Local Pickup (Contact us for Availability)
RG6 Outdoor Direct Burial CMX Coax Cable 3GHz Underground 18 AWG Coaxial 1000ft

Brand:
Logico
MPN: COX3520
Condition: New

The LOGICO RG6U Quad Shield Cable is ETL Listed, has a true 18AWG (1.02mm) copper clad steel conductor. This RG6 cable consist four shields bonded aluminum foil and aluminum braid with a true coverage of 60% (80 wires) the other layer consist Unbonded Aluminum Foil and aluminum braid with a true coverage of 40% (64 wires). The jacket is CM Rated and has foot markings for easy length cuts. Swept tested to 3 GHz, to handle the demands of todays and tomorrows HD signals.

RG6U Quad Shield Direct Burial 3.0 GHz Coaxial Cable
Applications - Digital HDTV CATV and Digital Satellite (SMATV)
Fully Sweep-Tested to 3000MHz
Conductor - True 18 AWG (1.02mm) Solid Copper-Clad Steel
1st Shield - Bonded Aluminum Foil
2nd Shield- True 60% Aluminum Braid Shield 5mm x 16mm x 0.16mm
3rd Shield - Unbonded Aluminum Foil
4th True 40% Aluminum Braid Shield 4mm x 16mm x 0.16mm
Dielectric - Gas Injected Foam Polyethylene Insulation
Jacket -PVC Flame Retardant CM Rated
CM/CATV ETL Listed, RoHS Compliant
Sequential Length Markings on Jacket
1000ft RIB (Reel In Box)
Black Color

One 1000ft RG6 Coaxial Direct Burial Cable
