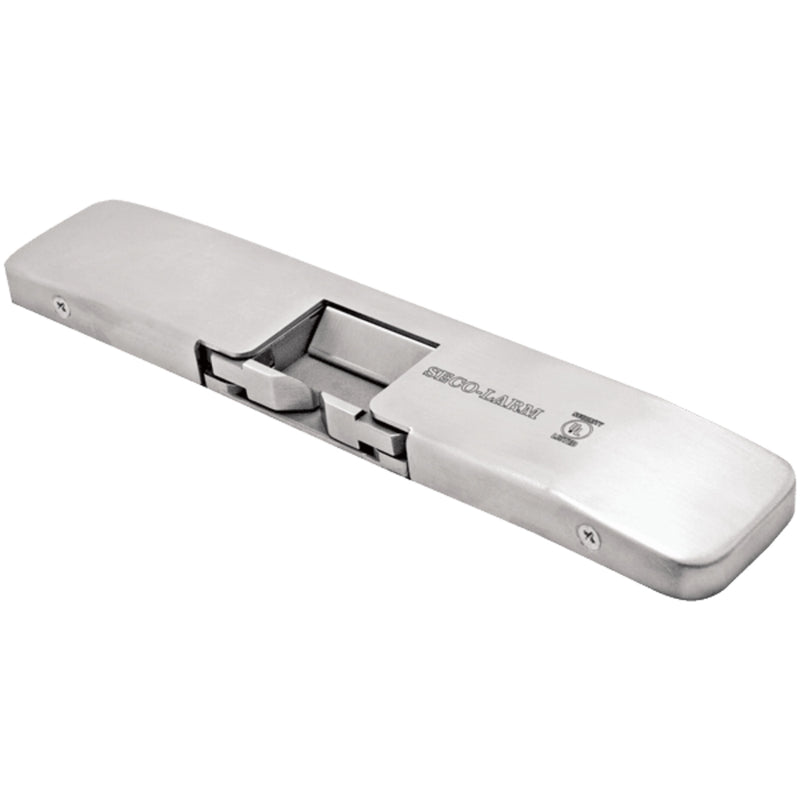

Seco-Larm SD-998C-D3AQ 1/2″ Tamper-Resistant Electric Rim Strike

Seco-Larm SD-998C-D3AQ 1/2″ Tamper-Resistant Electric Rim Strike
Write A Review
Availability:
in stock, ready to be shipped
$335.95 - $335.95
$335.95
$335.95 - $335.95
$335.95
Description

Seco-Larm SD-998C-D3AQ Tamper-Resistant 1/2" Latch Throw Electric Rim Strike, 12/24VDC, Non-polarized Connection, Horizontal Adjustment, Stainless Steel Construction

The SECO-LARM Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (1/2″ throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.

  • UL 294 and 1034 Listed
  • Tamper-resistant
  • 12/24 VDC Operating voltage
  • Non-polarized connection
  • Horizontal adjustment
  • Accommodates up to 3/4″ Pullman latch
  • Reversible non-handed design
  • Stainless steel construction
  • Surface-mount on metal or wood frames
  • Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
  • For Indoor Use Only
  • Static strength – 1,500-lb (6673N)
  • Tested for 250,000 cycles (UL Tested)
  • Low current draw: 540mA@12VDC, 270mA@ 24VDC
  • Field-selectable for fail-safe or fail-secure operation
  • Spacers included: 1x-1/16″, 2x-1/8″ (1.5mm, 3mm)
  • The SD-998C series is intended to be used with UL Listed Exit Hardware
  • The SD-998C series shall not impair the intended operation of an emergency unit
  • The SD-998C series shall not impair the operation of panic hardware mounted on the door
Specs / Features

Specifications

  • Operating Voltage  -  12/24 VDC
  • Current Draw  -  540mA@12VDC , 270mA@24VDC
  • Latch Throw  -  1/2″
  • Static Strength  -  1,500-lb (6673N)
  • Dynamic strength  -  70ft-lb (95J)
  • Endurance   - 250,000 cycles (UL Tested), Level IV
  • Destructive attack   - Level I
  • Line security  -  Level I
  • Standby power  -  Level I
  • Operating Temperature -   14°~120° F (-10°~49° C)
  • Operating Humidity  -  0~85%
  • Dimensions  -  9″x1/2″x1-3/4″ (229x13x45 mm)
