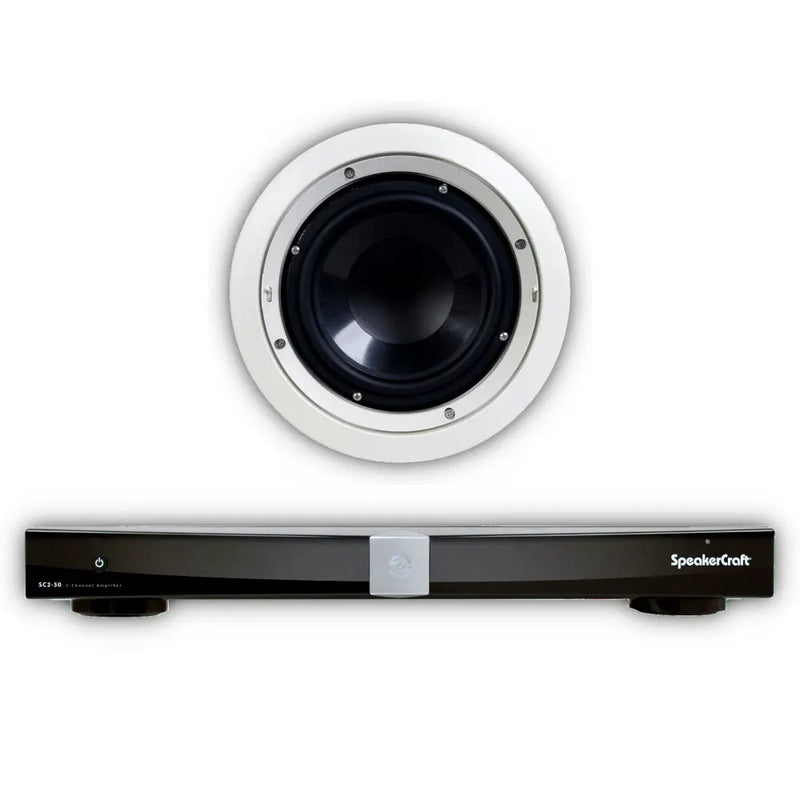

Speakercraft SC2-50 2-Channel Amplifier + ASM90920 100W 8" Subwoofer Combo
|30-Day Money-Back Guarantee|
|Fast, Free Shipping on all US Orders|
|Live Customer Service Representative|
|Buy Online, Free Local Pickup (Contact us for Availability)|
MPN: SC2-50 + ASM90920

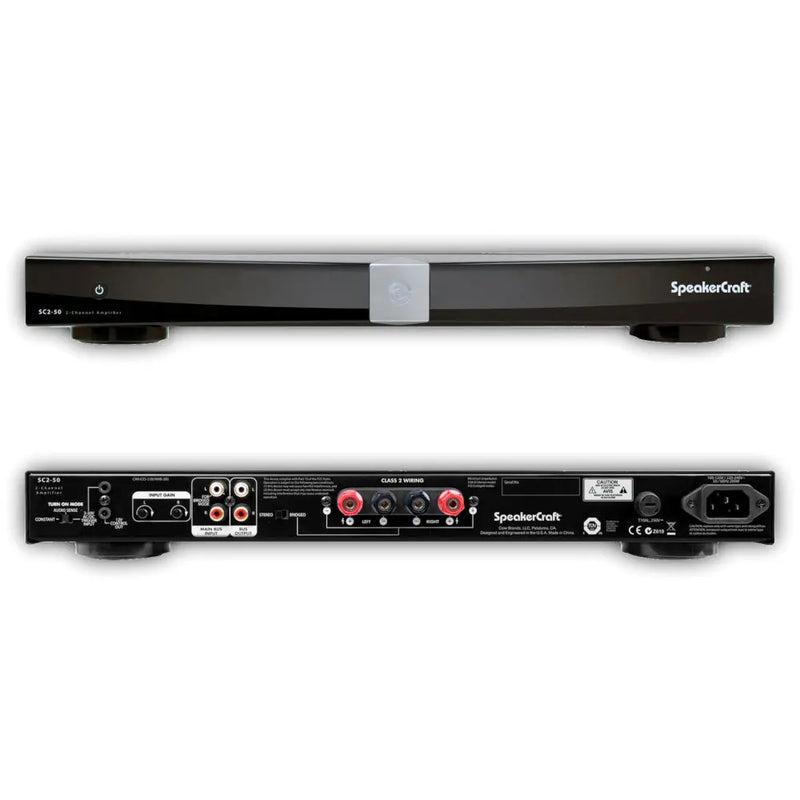

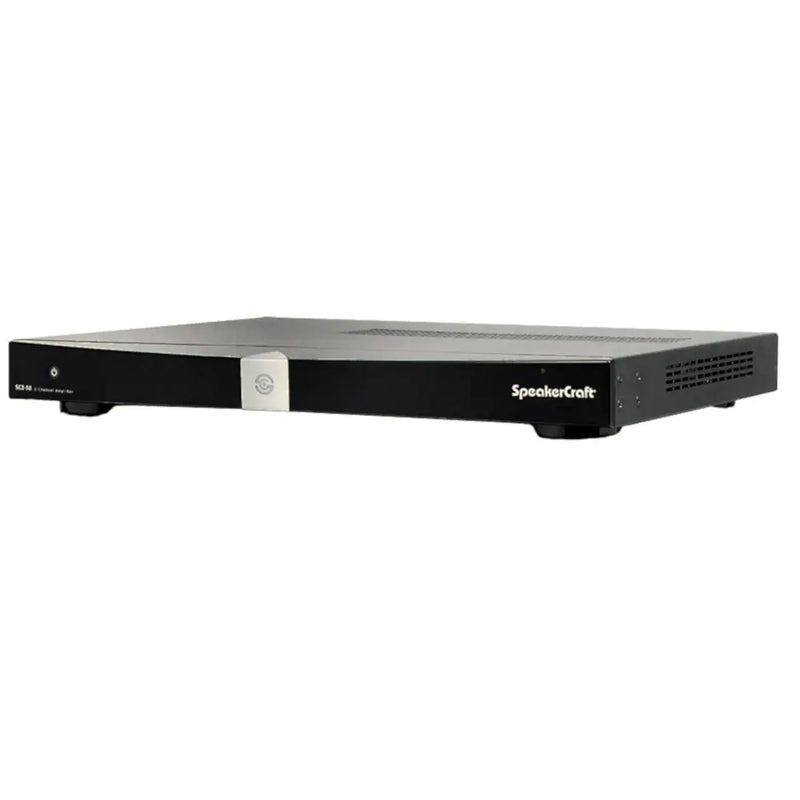

The SC2-50 is a 2-channel amplifier providing 50W per channel (225W when bridged for higher output applications)
and independent level control, making installation easier and more straight
Offering the classic SpeakerCraft power and stability that youve come to know and trust, the all New SC2-50 brings extremely high current power
to a custom installed A/V System in a remarkably convenient way. Featuring audio circuitry constructed using the fi nest materials available,
including 1% metal film resistors, high quality capacitors and oversized heat sinks that ensure proper cooling without the need for a noisy fan.
This 2-channel amplifier provides 50W per channel (225W when bridged for higher output applications) and independent level control,
making installation easier and more straight forward than ever before.

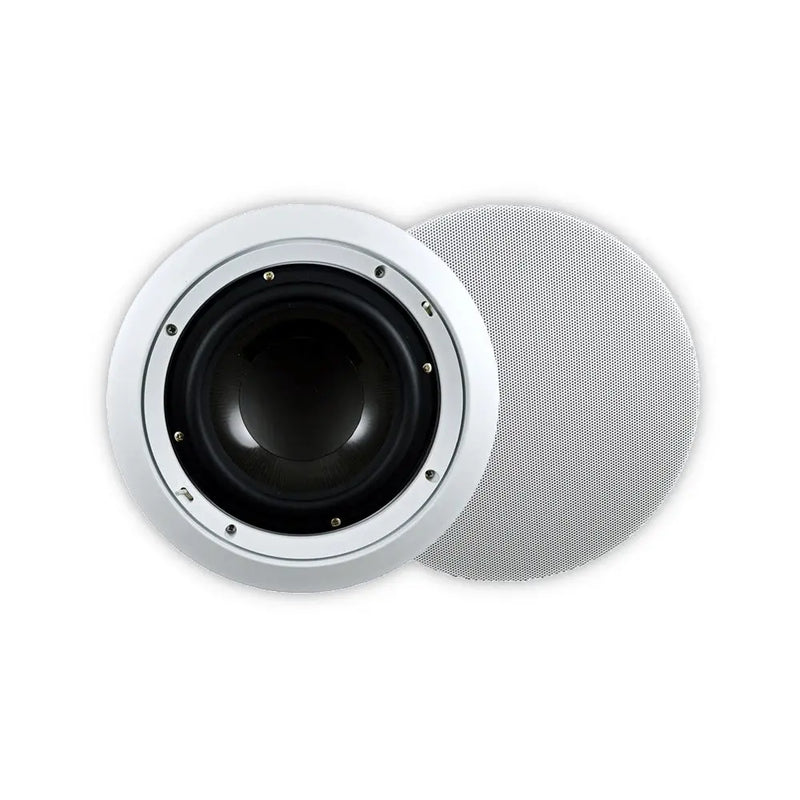

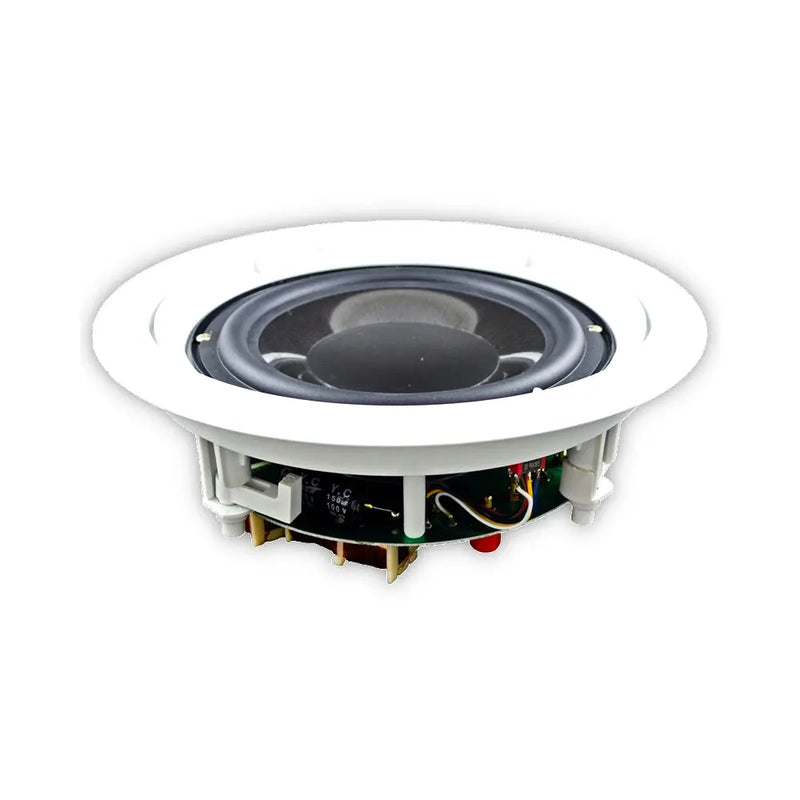

The 8" In-Ceiling Bass Augmentation System enhances the low frequency response of any in-ceiling or in-wall speaker system. This feature is particularly effective in large rooms.

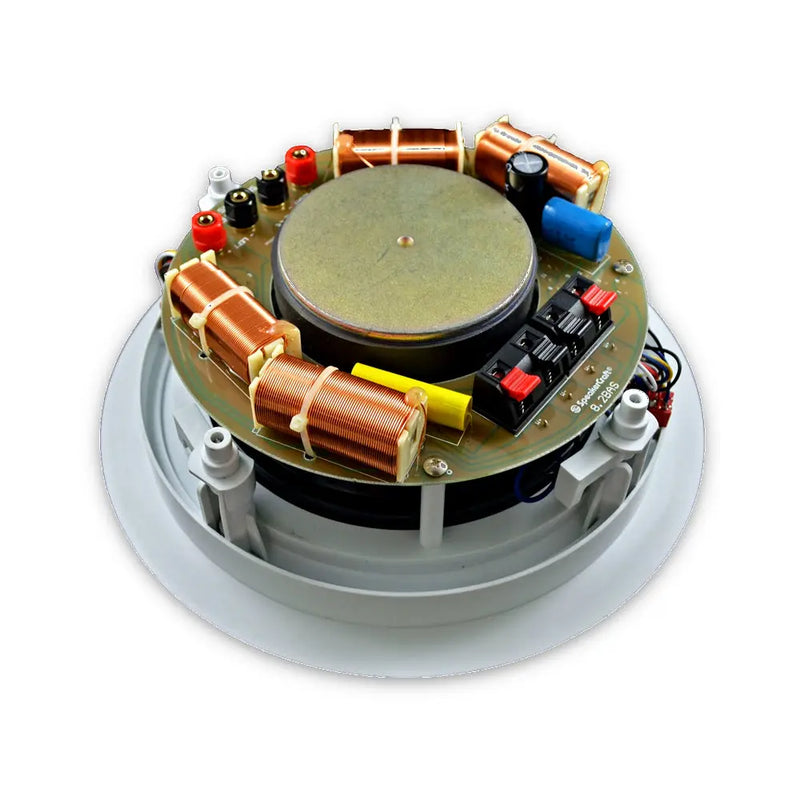

The BAS systems have built-in crossovers. This allows you to connect your in-ceiling or in-wall speakers to the BAS, which will direct the bass to the BAS and the higher frequencies to your other (satellite) speakers.By selecting one of the three frequency settings, you can control the amount of bass that is sent to the BAS. For instance, if you have small speakers you would set the switch to a high frequency. This will allow your small speakers to play effortlessly, hence, sound better with less distortion. If you have larger speakers, you would set the switch to a low frequency, allowing your larger speakers to reproduce the mid bass and the BAS to play only the low, or sub-bass. This will produce tighter and deeper bass response.
Design Principle: Fully discrete, high current bridgeable stereo amplifier
Continuous Average Power Output: 50 watts RMS per channel into 8 Ohms (all channels driven)
Continuous Average Power Output Bridged: 225 wats RMS per channel into 8 Ohms
Frequency Response: Bandwidth from 20 Hz to 20 kHz (=0dB/-3B)Signal to Noise Ratio: 20Hz to 20kHz unweighted > 102 dB
Total Harmonic Distortion: 0.2% THD from 20 Hz to 20 kHzChannel Separation: @ 1kHz >70dB
Overall Dimensions: 17 1/4" (43.81 cm) wide, 2 1/4" (5.6 cm) high (including feet), 13 1/2" (34.35 cm) deep
Weight: 10.7 lb., 4.8 kg.
AC Mains: 100-120/220-240 V~, 50/60 Hz, 200 W
Speaker Type: In-Ceiling Downward Firing Passive Sub-Woofer
Woofer: 8"DVC woofer, IMG cone, Butyle Rubber Surround, Kapton Voice Coil
Impedance: 8 ohms
Frequency Response: 30Hz - 120kHz or 30Hz - 80Hz
Recommended Amplifier Power: 100 watts (undistorted)
Cut Out Diameter: 11 15/16" x 3 3/4" (303mm x 95mm)
Dimensions (Diameter x Depth): 10 1/4" (260mm)
Weight: 6 lbs
