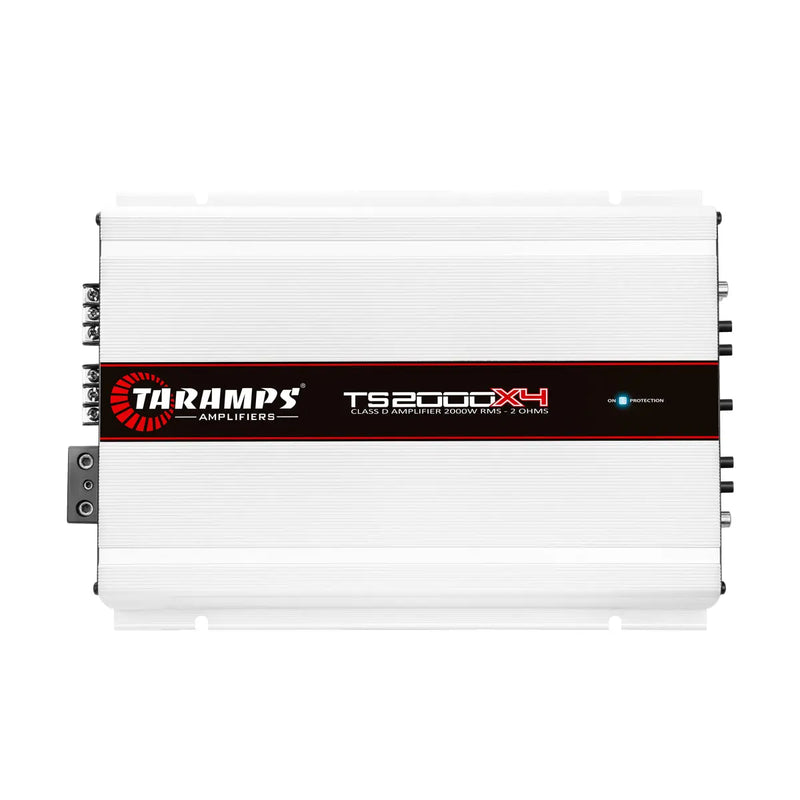

Taramps TS 2000X4 Class D 500 Watt RMS 2 Ohms Car Audio 4 Channel Amplifier

Taramps TS 2000X4 Class D 500 Watt RMS 2 Ohms Car Audio 4 Channel Amplifier Taramps

Sorry, this product has been discontinued.

Taramps TS 2000X4 Class D 500 Watt RMS 2 Ohms Car Audio 4 Channel Amplifier

The TS 2000X4 amplifier module is carefully developed with state-of-the-art technology, offering high efficiency and performance for automotive audio systems. Classified as Multi-channel, it has a maximum power of 2.000 watts RMS running at a 2-ohms impedance, with four 500 watts RMS channels. It is FULL-RANGE, operating on all frequencies in the right measure.

Features

  • Reference TS 2000x4 - 2 OHMS
  • Operation Class D Class
  • Number of Channels 04
  • Maximum Power @ 12,60 VDC - 2 OHMS: 2000W RMS (4 x 500W RMS)
  • @ 12.60 VDC-4 OHMS: 1250W RMS (4 x 312.5W RMS)
  • @ 12.60 VDC-8 OHMS: 600W RMS (4 x 150W RMS)
  • Input Sensitivity 250mV (Vol = Max)
  • Crosstalk Separation> 66dB
  • Signal to Noise Ratio> 92dB
  • Frequency Response 20Hz to 36KHz (-1dB)
  • Crossover High Pass (HPF) Variable: 80Hz to 2.2KHz (6dB / 8th)
  • Crossover Low Pass (LPF) 80Hz (12dB / 8th)
  • Bass Boost 0 to 10 dB (50Hz)
  • Efficiency 74%
  • Input Impedance 18K OHMS
  • Short Output Protection System / High / Low Supply Voltage
  • Minimum Supply Voltage 9 VDC
  • Maximum Supply Voltage 16 VDC
  • Consumption at rest @ 12.60 VDC: 2.4 A
  • Maximum Musical Consumption @ 12.60 VDC: 107.1 A
  • Maximum Sine Signal Consumption (1KHz) @ 12.60 VDC: 214.2 A
  • Dimensions (WxDxh) 226 x 55 x 326mm
  • Weight 2.66 kg
  • Additional Information 4 Individual Channels: 4 x 500W RMS - 2 OHMS
  • 3 Channels (Stereo / Mono):
  • 2 x 500W RMS - 2 OHMS
  • + 1 x 1000W RMS - 4 OHMS (Bridge)
