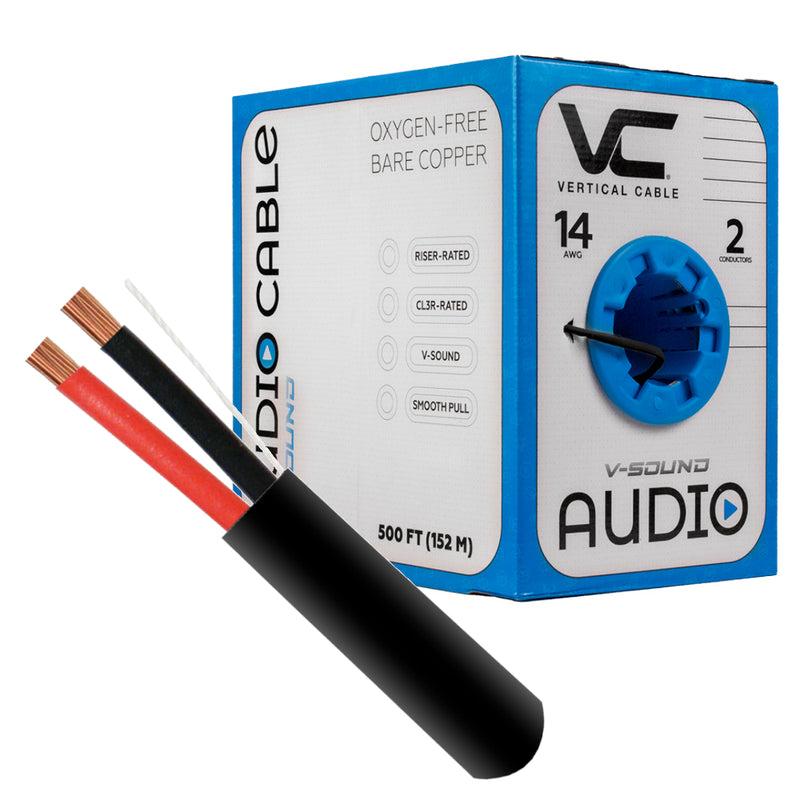

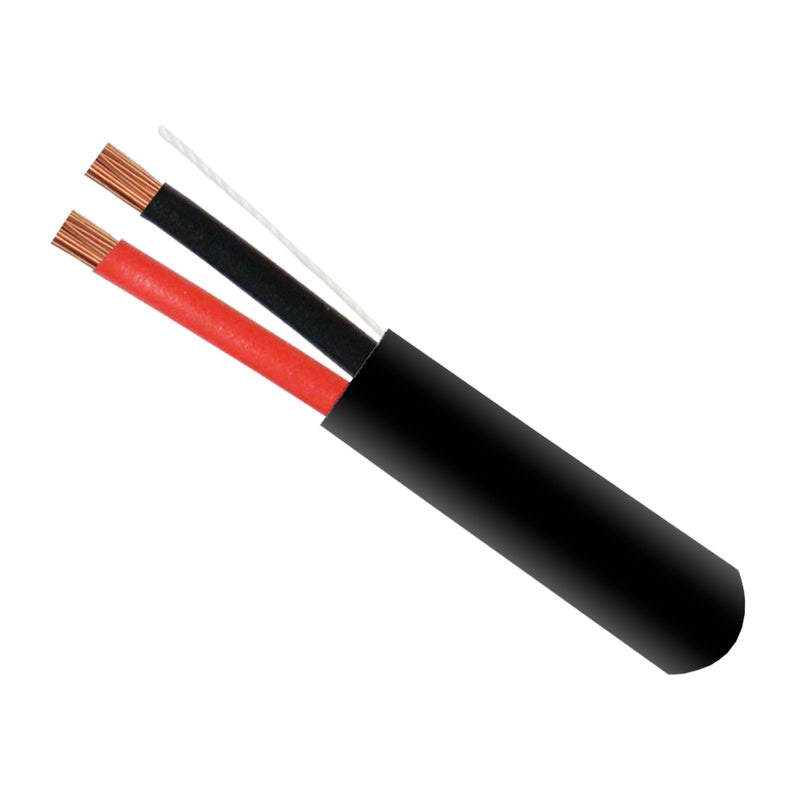

Vertical Cable 209-2320/BK 14 AWG 2 Conductors Indoor OFC Stranded Audio Cable Black 500 ft

Vertical Cable 209-2320/BK 14 AWG 2 Conductors Indoor Audio Cable, Oxygen-Free Stranded Bare Copper, Black, 500 ft

The Vertical Cable 209-2320/BK is a 14 AWG 2-conductor high-strand audio cable engineered for indoor sound, audio, and intercom system installations. Constructed with oxygen-free stranded bare copper conductors and durable PVC insulation, this unshielded cable provides dependable signal transmission for commercial and residential audio applications. Its round design includes a rip cord for easier handling and installation, while the overall PVC jacket offers long-lasting protection. Rated CMR/CL3 and 300V RMS, the cable is suitable for in-wall indoor installations where reliable performance and compliance are required. Supplied in a convenient 500 ft pull box, the 209-2320/BK is an ideal choice for intercom systems, distributed audio setups, and general low-voltage audio wiring projects.

• 14 AWG 2-conductor high-strand audio cable
• Oxygen-free stranded bare copper conductors
• Unshielded design for audio and intercom applications
• Durable PVC insulation and overall PVC jacket
• CMR/CL3 rated for indoor in-wall installations
• Ideal for sound systems, intercom systems, and indoor audio applications
• Black jacket finish
• 500 ft pull box packaging
• ETL listed and RoHS compliant

Specifications

General

• Manufacturer: Vertical Cable
• Product ID: 209-2320/BK
• Cable Type: Audio Cable
• Application: Sound & Audio Systems
• Application: Intercom Systems
• Application: Indoor Use

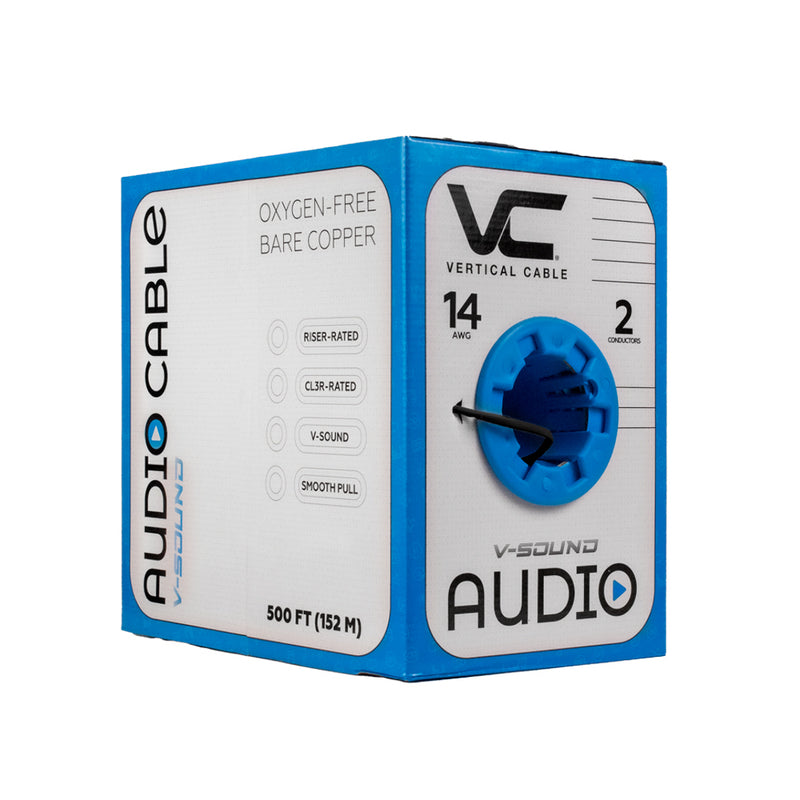

• Packaging: 500 ft Pull Box
• Jacket Color: Black

Conductors

• Conductor Count: 2
• Wire Gauge: 14 AWG
• Conductor Material: Stranded Bare Copper
• Stranding: 41/0.25 mm
• Conductor Colors: Red, Black

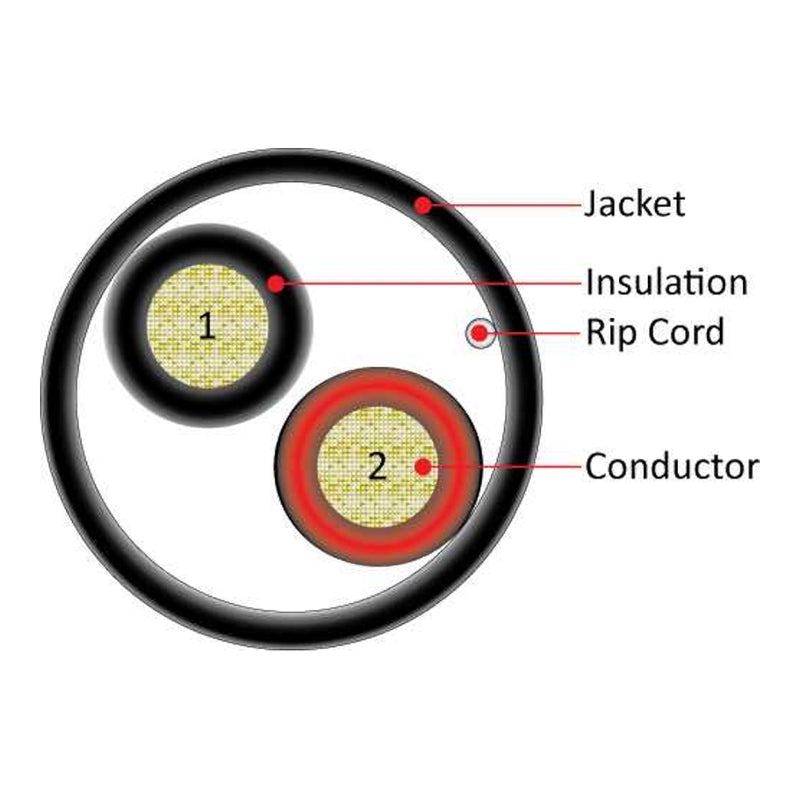

Construction

• Cable Shape: Round
• Shielding: Unshielded
• Rip Cord: Yes
• Oxygen-Free Copper: Yes

Insulation

• Insulation Material: PVC (Polyvinyl Chloride)
• Insulation Diameter: 0.08 in. (2.10 mm)

Jacket

• Jacket Material: PVC (Polyvinyl Chloride)
• Jacket Thickness: 0.02 in. (0.60 mm)
• Overall Cable Diameter: 0.25 in. (6.40 mm)

Electrical

• Voltage Rating: 300V RMS

Performance

• Temperature Rating: 75°C
• Cold Bend Rating: -20°C (No Crack)

Compliance & Certifications

• NEC Rating: CMR/CL3
• ETL Listed: c(ETL)us
• RoHS Compliant: Yes
• FT4 Rated: Yes

Physical

• Packed Weight: 22 lb (10.0 kg)

Docs/Instruction Links

• Product Spec Sheet
