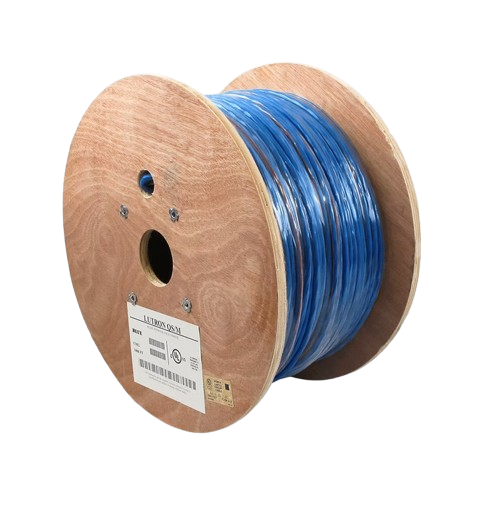

Wavenet LUTRON-QS/M/500 22AWG/2C Shielded + 16AWG/2C Lutron Cable, 500' Reel - Orange Stripe

Wavenet LUTRON-QS/M/500 22AWG/2C Shielded + 16AWG/2C Lutron Cable, 500' Reel - Orange Stripe

• High-Grade lighting control system cables
• Power limited control circuits
• Commercial, residential, and industrial lighting and home automation applications
• Light dimmers, touch panels, environmental sensors, smart home light control
• Suitable for indoor applications

Standards

• c(ETL) Listed
• RoHS Compliant

​​​​​​​Specifications

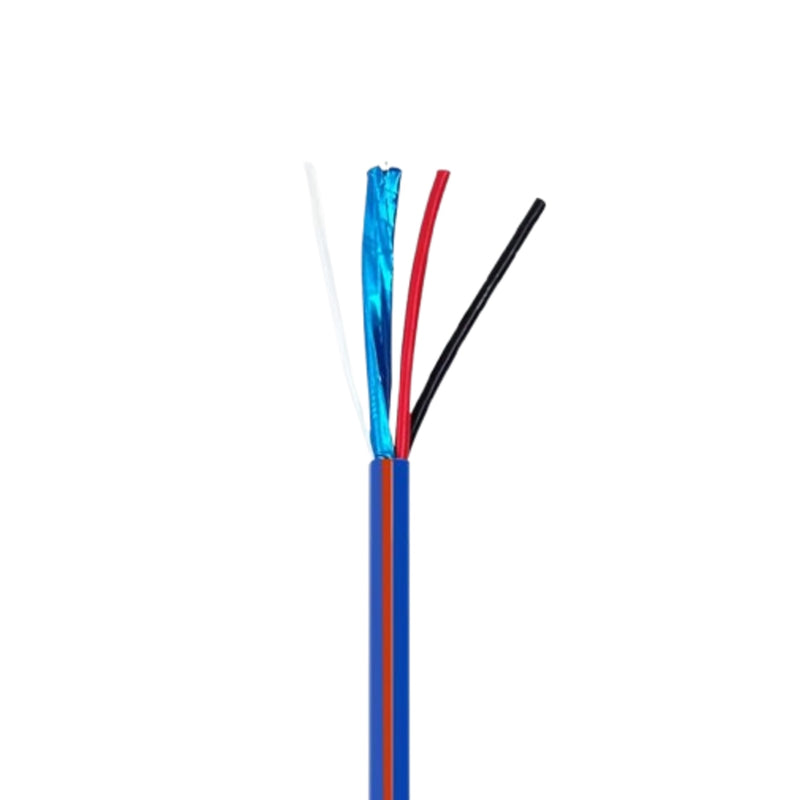

Component A

• Conductor: Standard Bare Copper

• Construction (+/- 0.008mm): 22AWG : 7/0.254

• Stranded Dia. (mm): 0.78

• Insulation Material: FOAM PE

• Nom. Thickness (mm): 0.51

• Insulation Diameter (+/- mm): 1.8

• Drain Wire (Stranded Tinned Copper): 7/0.20TC

• Shield: Aluminum/Polyester

• Coverage (%): $\ge$ 125%

Component B (2C):

• Conductor: Stranded Bare Copper

• Construction (+/- 0.008mm): 16AWG : 26/0.254

Component A.B Cable Together:

• Jacket Material: PVC

• Nominal Thickness (mm): 0.65

• Outer Dia. (+/- 0.10mm): 5.80

• Ripcord: 210Dx6 nylon thread

•

• Stranded Dia. (mm): 1.50

• Insulation Material: PVC

• Nom. Thickness (mm): 0.33

• Insulation Diameter (+/- 0.05mm): 2.15

Docs/Instruction Links

• Product Spec Sheet
