White 500ft Bulk RG59 Siamese Cable 20AWG + 18/2 CCTV Security Camera

White 500ft Bulk RG59 Siamese Cable 20AWG + 18/2 CCTV Security Camera Logico

Sorry, this product has been discontinued.

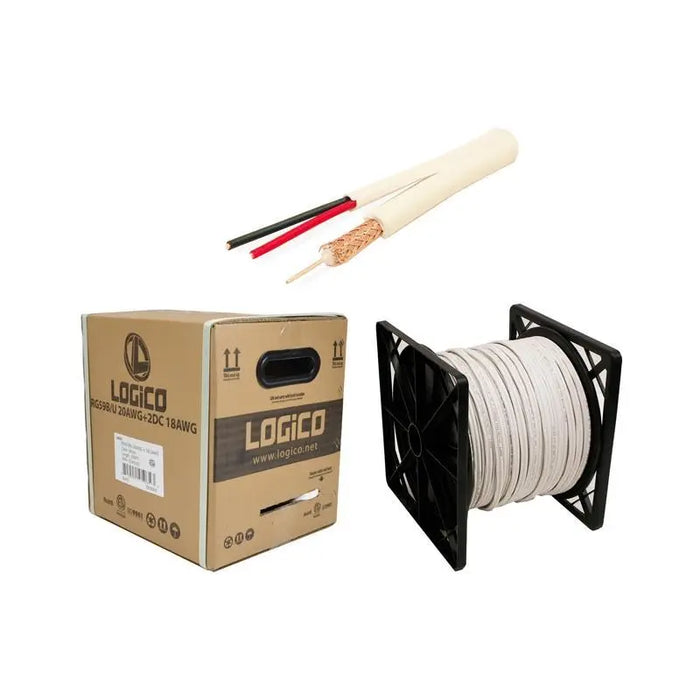

White 500' Feet Bulk RG59 Siamese Cable 20AWG + 18/2 CCTV Security Camera Wire

  • RG59 Type Coaxial Cable with One Pair of 18AWG Power Cable
  • 20AWG Solid Conductor
  • Indoor Cable Application for CCTV
  • RoHS Compliant, ISO9001:2008

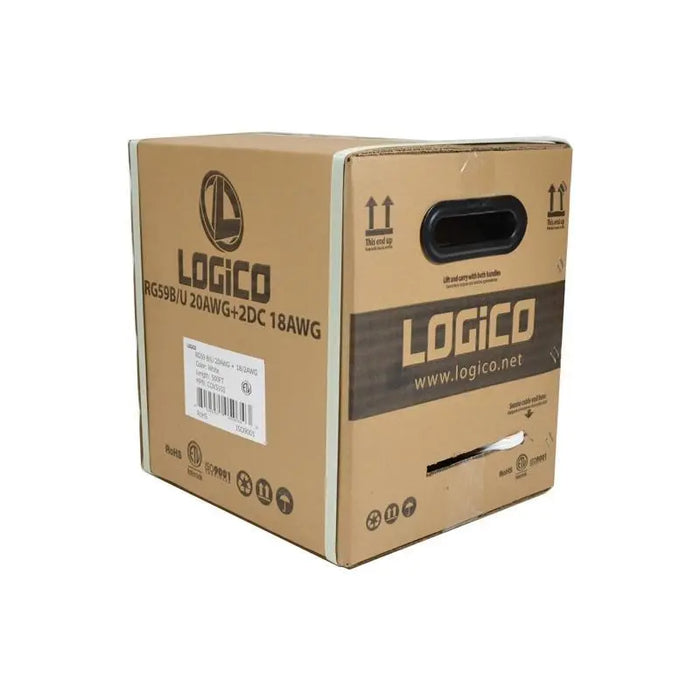

  • Reel In Box

Specifications

Conductor

  • AWG: 20AWG / 0.81mm
  • Conductor Material: Copper Clad Steel (CCS)

Insulation

  • Insulation Material: Foam PE
  • Insulation Diameter: 3.66mm

Shield

  • Braid: 9x16x0.12mm
  • Coverage: 95%

Outer Jacket

  • Diameter: 6.0mm
  • Jacket Material: Polyvinyl Chloride (FR-PVC)
  • Color: White

18AWG/2C

  • Conductor: Electroplated CCA
  • Diameter: 7mm x 0.38mm (18AWG)
  • Insulation: PVC (Black, Red)
  • Insulation Diameter: 1.70mm
  • Jacket Material: PVC
  • Jacket Diameter: 4.5mm

Electrical Characteristics

  • Sparker Test: 3000VAC
  • Impedance: 75±3 Ohms
  • Capacitance: 53±3pF/m
  • Velocity of Propagation: 83%
  • Temperature Rating: -30ºC to 70ºC

What's in the box

  • One RG59 Siamese Cable+18/2 500FT White
